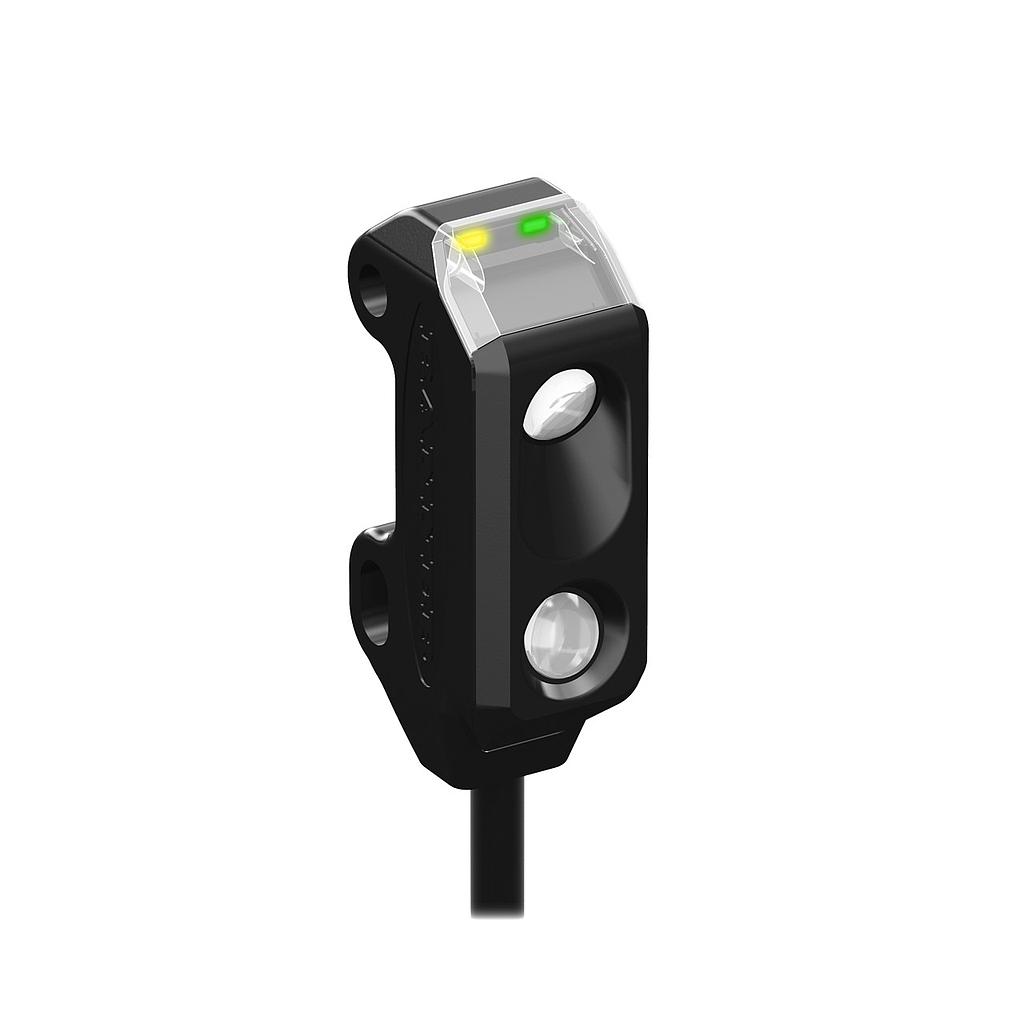

NPN SNAP-FIT PICO 1.5 METER (VS1AN5CV20Q-72946)

https://www.branom.com/web/image/product.template/35607/image_1920?unique=c26756c
(0 review)

Features:

  • VS1AN5CV20Q-72946 NPN SNAP-FIT PICO 1.5 METER
    • Power: DC
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 55 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Ingress Protection: IP54
  • Repeatability (µs): 250
  • Sensing Beam: Visible Red LED
  • Sensing Beam Wavelength: 630
  • Housing Style: Rectangular
  • Max Sensing Distance: 20 mm
  • Sensing Mode (Detailed): Convergent
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 80% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Output Response Time: 1 ms
  • Operation: Light Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • NEMA / UL: NEMA 3
  • Indicator Type: LED

$ 161.00 161.0 USD $ 161.00

$ 161.00

Not Available For Sale
