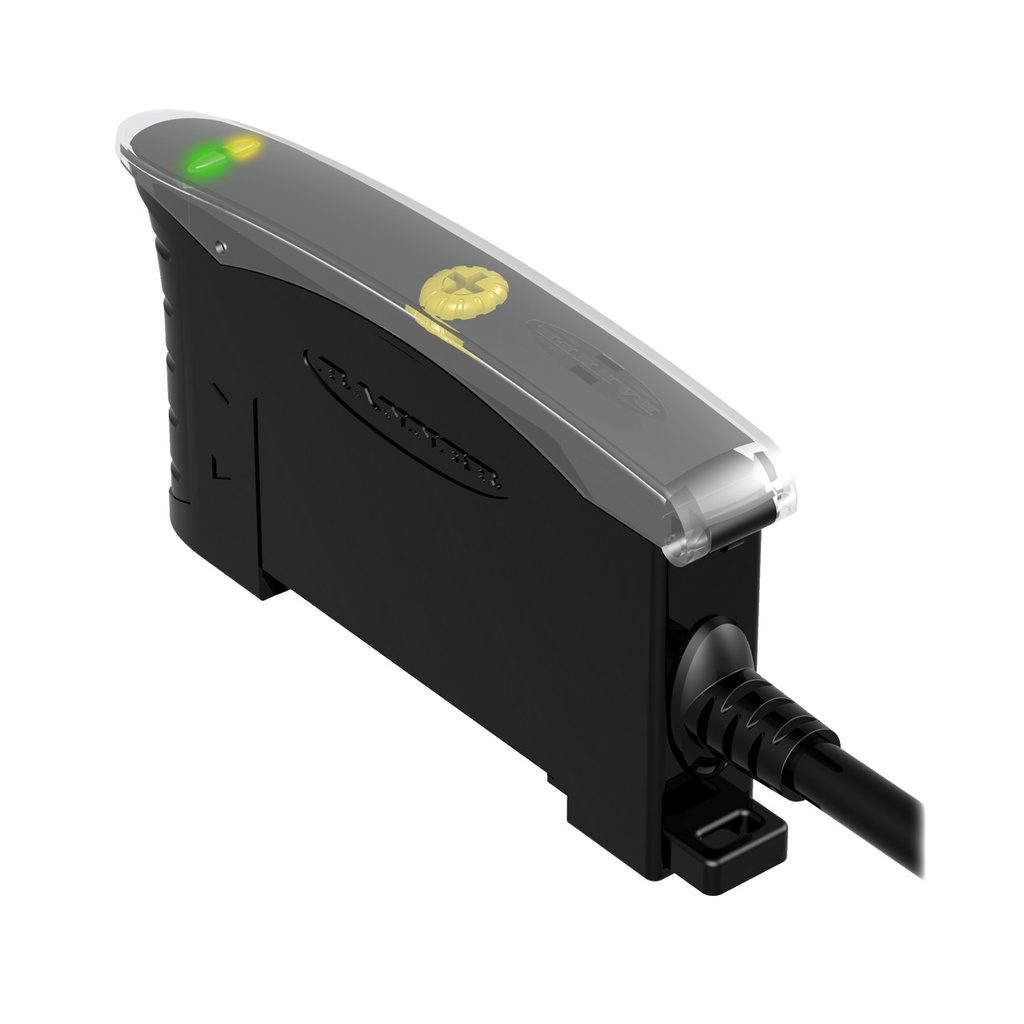

2M CABLE 4 WIRE GREEN, D10AFPG
Features:
- D10AFPG 2M CABLE 4 WIRE GREEN
- Min Operating Temperature: -20 °C
- Max Operating Temperature: 55 °C
- Power Supply: 10-30 VDC
- Delay at Power-Up: 100 ms
- Feature: Bussable Power: No
- Ingress Protection: IP50
- Repeatability (µs): 95
- Housing Style: DIN Rail
- Max Relative Humidity: 90% @ 55 °C
- Housing Material_: Thermoplastic (TPO)
- Feature: Hazardous Area: No
- Feature: IO Link: No
- Feature: Quick Disconnect: No
- Feature: Audible: No
- Number of Pins: 4
- Adjustments: Potentiometer
- Feature: Timing (Hold/Delay): Yes
- Min Response Time: 0.5 ms
- Output Type (Specific): Single Discrete
- Color LED - Amplifiers: Green
- Feature: Remote Teach: No
- Feature: Intrinsically Safe: No
- Connection: Cable
- NEMA / UL: NEMA 1
- Cord/Cable Length: 2 m
- Feature: Crosstalk Avoidance: Yes
- Indicator Type: LED
