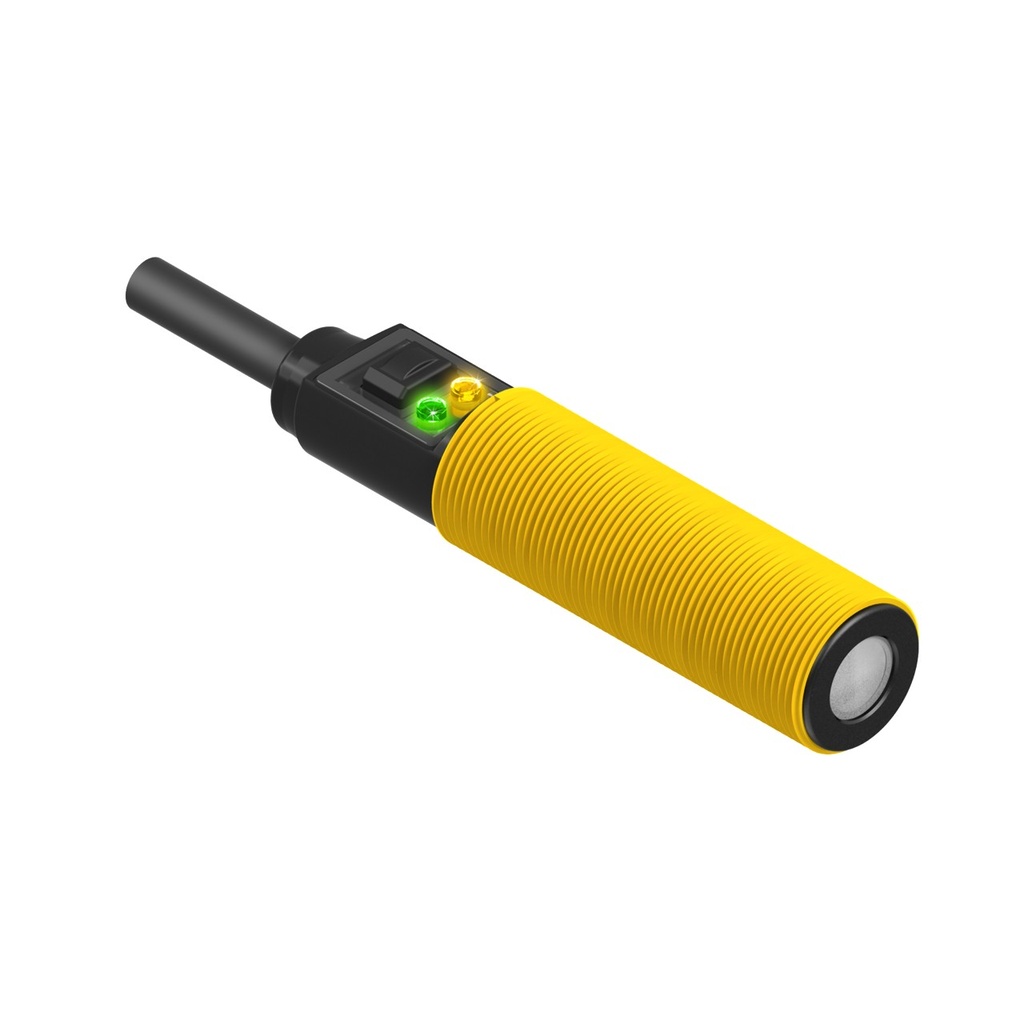

DISCRETE 6 IN 5 PIN EURO (S18UBAQPMA)
Features:
- S18UBAQPMA DISCRETE 6 IN 5 PIN EURO
- Min Operating Temperature: -20 °C
- Max Operating Temperature: 60 °C
- Power/Current Consumption (exclusive of load): 65 mA max; 40 mA @ 25 V dc
- Power Supply: 10-30 VDC
- Temperature Effect (mm/°C): 0.02% of sensing distance/°C
- Delay at Power-Up: 300 ms
- Ingress Protection: IP67
- Sensing Beam: Ultrasonic
- Housing Style: Barrel - Straight
- Max Sensing Distance: 300 mm
- Sensing Mode (Detailed): Time of Flight
- Sensing Mode (General): Proximity
- Device Type: Sensor
- Housing Material_: ABS/Polycarbonate
- Feature: RS-232: No
- Feature: RS-485: No
- RS-422: No
- Feature: IO Link: No
- Feature: Wireless: No
- Feature: Quick Disconnect: Yes
- Quick Disconnect Type: M12
- Max Op. Relative NC Humidity: 100%
- Feature: Chemical Resistant: No
- Number of Pins: 5
- Adjustments: Push Button; Remote Teach
- Feature: Timing (Hold/Delay): No
- Input/Output: Discrete
- Barrel Diameter: 18
- Min Response Time: 5 ms
- Feature: Ultrasonic: Yes
- Mechanical Shock: IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
- Output Saturation Voltage PNP Outputs: < 1.2 V @ 10 mA / <1.6 V @ 100 mA
- Max Discrete (Switched) Output (mA): 100
- Min Sensing Distance: 30 mm
- Feature: Clear Object Detection: Yes
- Min Window Size: 5 mm
- Remote Teach and Laser Control Input Impedence: 12 kΩ
- Discrete (Switched) Outputs: Bipolar (NPN & PNP)
- Max Measurement Range: 100-500 mm
- Output Protection: Protected against short circuit conditions
- SSI: No
- Profibus: No
- Feature: Remote Teach: Yes
- Output Saturation Voltage NPN Outputs: <0.2 V @ 10 mA / <0.6 V @ 100 mA
- Supply Protection Circuitry: Protected against reverse polarity and transient overvoltages
- Connection Type: Pigtail QD
- NEMA / UL: NEMA 6P
- Cord/Cable Length: 0.15 m
- Barrel Thread: M18
- Feature: Common Ethernet Protocol: No
- Feature: PC Configurable: No
- Indicator Type: LED
- Warm-Up Time: 10 min
- Discrete Output Hysteresis: 0.7 mm
- Ultrasonic Frequency: 300 kHz
