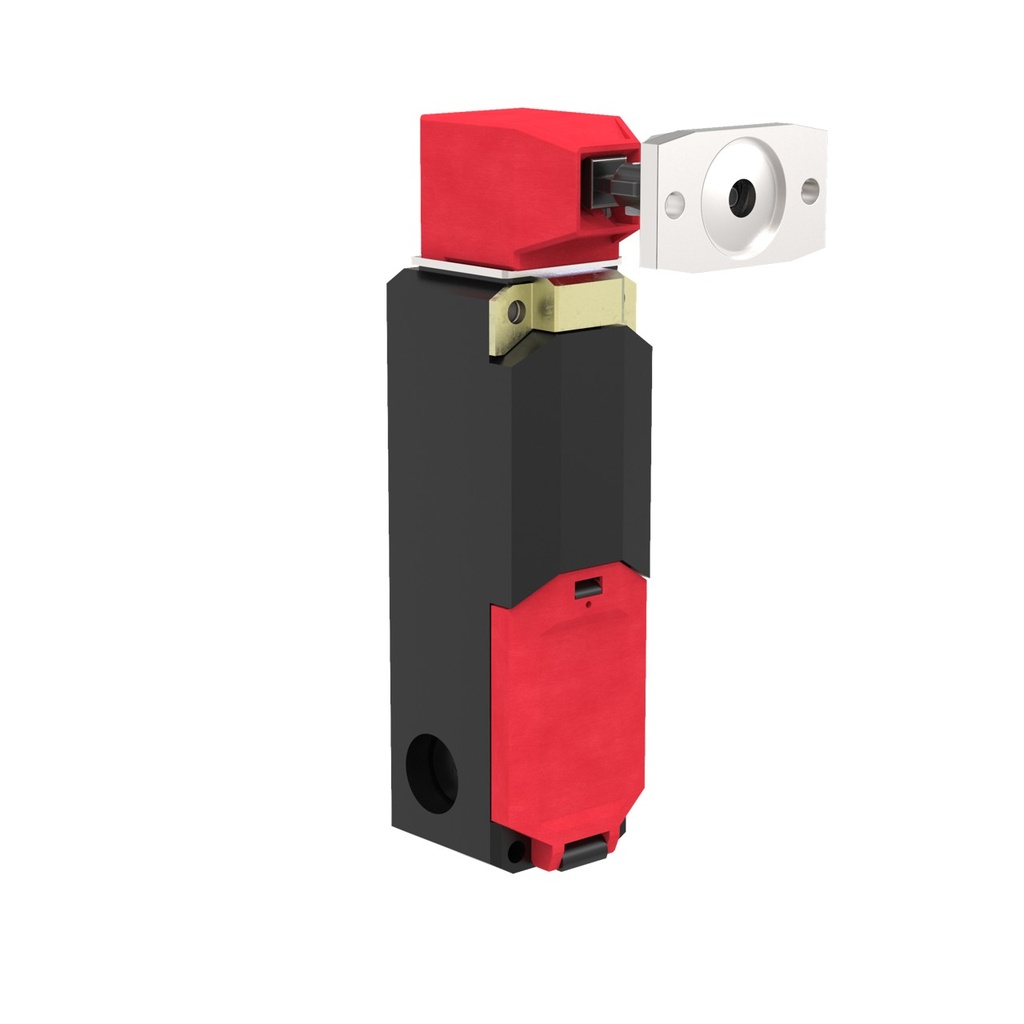

Representative photo. Please check item description for details.

Solenoid Locking: Flexible In-line (SI-LS42DMMJF-72487)

https://www.branom.com/web/image/product.template/35476/image_1920?unique=c26756c
(0 review)

Features:

  • Solenoid Locking: Flexible In-line
  • Cable Gland Installed
  • Solenoid Voltage: 24 V ac/dc
  • Contact Configuration: 3 NC
  • 1 NC
  • Dimensions: 170 x 43 x 45 mm
  • Plastic Housing
    • Valve: Actuation: Flexible
  • Min Operating Temperature: -25 °C
  • Rated Operating Current: 4.4 VA
  • Max Operating Temperature: 70 °C
  • Power Consumption (W/VA): 4.4 VA
  • Ingress Protection: IP67
  • Device Type: Mechanical - Kit
  • Housing Material_: Thermoplastic
  • Operating Voltage: 24 VAC/VDC
  • Feature: Quick Disconnect: No
  • Output: Contacts
  • PL Rating: e
  • SISTEMA: B10d = 2 million
  • SIL Rating: SIL CL 3
  • Safety Category Rating: 4
  • Feature: Lockable: Yes
  • Min Hinged Door Size: 150 mm
  • Device Shape: Rectangular
  • Switch Style: Contact
  • Coding Level/Tamper Resistance: Low
  • Locking Mechanism: Power Lock
  • Actuator (Safety) Contacts: 3 NC
  • Safety Category: Cat 4
  • Monitor (Locked) Contacts: 1 NC
  • Connection Type: Wiring Chamber
  • Extraction Force: 1500 N
  • In Rush Power Consumption: 12 VA (0.2 s)
  • Feature: In-Series Diagnostics: No
  • Mechanical Life: 1 mil
  • Feature: Actuation: Flexible
