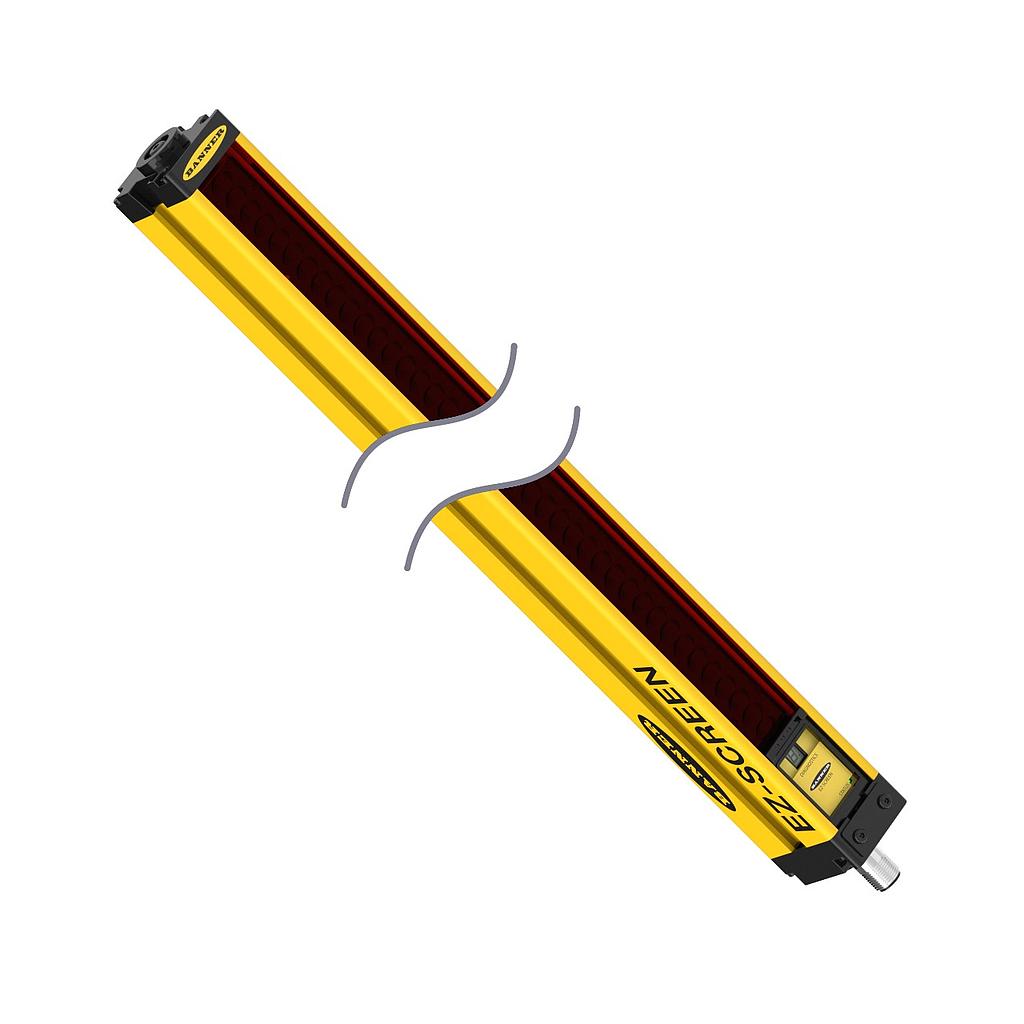

EZ-SCREEN EMITTER, SLSE30-600Q8

https://www.branom.com/web/image/product.template/35374/image_1920?unique=c26756c
(0 review)

Features:

  • 30 mm Resolution
  • Connector Type: M12
  • Defined Area Height Range: > 350 - <= 650 mm
  • Defined Area Height: 600 mm
  • Effective Aperture Angle: Type 4 Per IEC 61496-2
  • Electrical Safety Class: III
  • External Monitoring Device: None
  • Feature: Auxiliary Output: No
  • Feature: ESD Safe: No
  • Feature: End-to-End Sensing: Yes
  • Feature: Fault Output: No
  • Feature: Fixed Blanking: No
  • Feature: Integral Muting: No
  • Feature: Low Profile: No
  • Feature: Reduced Resolution: No
  • Feature: Short Protection: Yes
  • Feature: Test Input: No
  • Finish Material: Yellow Polyester
  • Height: 600 mm (23.6 INCH)
  • Housing Finish: Yellow Polyester
  • Housing Material_: Aluminum
  • Ingress Protection: IP65
  • Max Operating Range: > 8 to <= 20 m
  • Max Operating Temperature: 55 °C
  • Min Operating Temperature: 0 °C
  • Number Of Beams: 40
  • Number of Pins (Receiver/Emitter): 8
  • Operating Distance: 0.1 - 18 m
  • Operating Voltage: 24 VDC +/- 15%
  • PL Rating: e
  • Physical Dimensions: 36 x 45.2 mm
  • Quick-Disconnect Connector
  • Range: 0.1 to 18 m (4 INCH to 60FT)
  • Recovery Time: 25-152 / 81-495 ms
  • Response Time: (Tr) 15 ms
  • Response Time: 15 ms
  • SIL Rating: SIL3; CL3
  • SLSE30-600Q8 EZ-SCREEN EMITTER
  • Safety Level: Type 3
  • Scan Code: Selectable
  • Shock: 10g at 16ms (6000 cycles)
  • Supply Current: 100 mA max.
  • System Type: Emitter
  • Trip/Latch Output: N/A
  • Vibration: 10-55 Hz at 0.35 mm

$ 1,007.00 1007.0 USD $ 1,007.00

$ 1,007.00

Not Available For Sale
