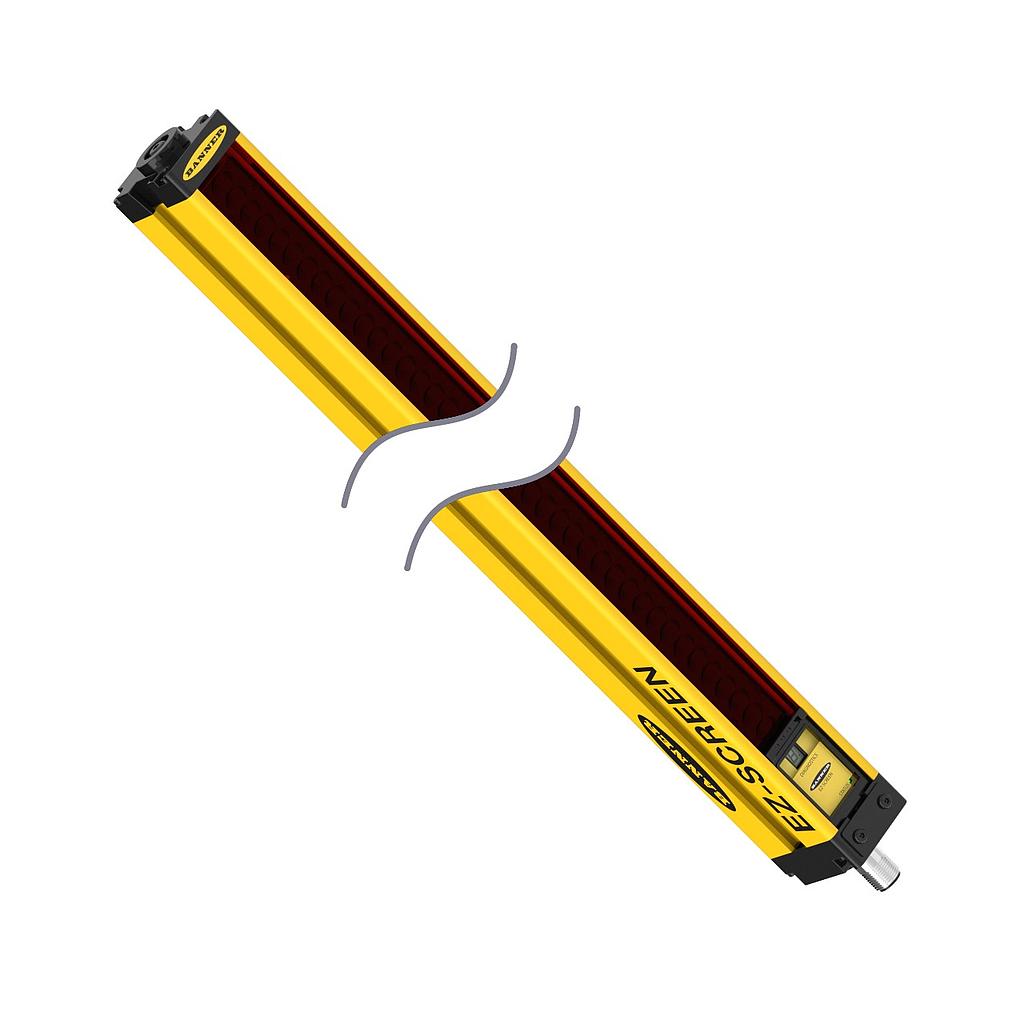

Representative photo. Please check item description for details.

EZ-SCREEN EMITTER, SLSE30-450Q8

https://www.branom.com/web/image/product.template/35373/image_1920?unique=c26756c
(0 review)

Features:

  • SLSE30-450Q8 EZ-SCREEN EMITTER
  • 30 mm Resolution
  • Range: 0.1 to 18 m (4 INCH to 60FT)
  • Height: 450 mm (17.7 INCH)
  • Response Time: (Tr) 13 ms
  • Number Of Beams: 30
  • Quick-Disconnect Connector
    • Defined Area Height Range: > 350 - <= 650 mm
    • Feature: Low Profile: No
    • Supply Current: 100 mA max.
    • Min Operating Temperature: 0 °C
    • Max Operating Temperature: 55 °C
    • Ingress Protection: IP65
    • Housing Material_: Aluminum
    • Operating Voltage: 24 VDC +/- 15%
    • Physical Dimensions: 36 x 45.2 mm
    • PL Rating: e
    • Vibration: 10-55 Hz at 0.35 mm
    • SIL Rating: SIL3; CL3
    • Recovery Time: 25-152 / 81-495 ms
    • Feature: ESD Safe: No
    • Feature: Test Input: No
    • System Type: Emitter
    • Operating Distance: 0.1 - 18 m
    • Response Time: 13 ms
    • Effective Aperture Angle: Type 4 Per IEC 61496-2
    • Feature: Reduced Resolution: No
    • Feature: End-to-End Sensing: Yes
    • Number of Pins (Receiver/Emitter): 8
    • Feature: Fault Output: No
    • Defined Area Height: 450 mm
    • Feature: Auxiliary Output: No
    • Electrical Safety Class: III
    • Shock: 10g at 16ms (6000 cycles)
    • Feature: Short Protection: Yes
    • External Monitoring Device: None
    • Feature: Fixed Blanking: No
    • Safety Level: Type 3
    • Feature: Integral Muting: No
    • Scan Code: Selectable
    • Trip/Latch Output: N/A
    • Housing Finish: Yellow Polyester
    • Max Operating Range: > 8 to <= 20 m
    • Connector Type: M12
    • Finish Material: Yellow Polyester
      • Defined Area Height Range: > 350 - <= 650 mm
    • Feature: Low Profile: No
    • Supply Current: 100 mA max.
    • Min Operating Temperature: 0 °C
    • Max Operating Temperature: 55 °C
    • Ingress Protection: IP65
    • Housing Material_: Aluminum
    • Operating Voltage: 24 VDC +/- 15%
    • Physical Dimensions: 36 x 45.2 mm
    • PL Rating: e
    • Vibration: 10-55 Hz at 0.35 mm
    • SIL Rating: SIL3; CL3
    • Recovery Time: 25-152 / 81-495 ms
    • Feature: ESD Safe: No
    • Feature: Test Input: No
    • System Type: Emitter
    • Operating Distance: 0.1 - 18 m
    • Response Time: 13 ms
    • Effective Aperture Angle: Type 4 Per IEC 61496-2
    • Feature: Reduced Resolution: No
    • Feature: End-to-End Sensing: Yes
    • Number of Pins (Receiver/Emitter): 8
    • Feature: Fault Output: No
    • Defined Area Height: 450 mm
    • Feature: Auxiliary Output: No
    • Electrical Safety Class: III
    • Shock: 10g at 16ms (6000 cycles)
    • Feature: Short Protection: Yes
    • External Monitoring Device: None
    • Feature: Fixed Blanking: No
    • Safety Level: Type 3
    • Feature: Integral Muting: No
    • Scan Code: Selectable
    • Trip/Latch Output: N/A
    • Housing Finish: Yellow Polyester
    • Max Operating Range: > 8 to <= 20 m
    • Connector Type: M12
    • Finish Material: Yellow Polyester

$ 829.00 829.0 USD $ 829.00

$ 829.00

Not Available For Sale

    This combination does not exist.

    Contact Us
