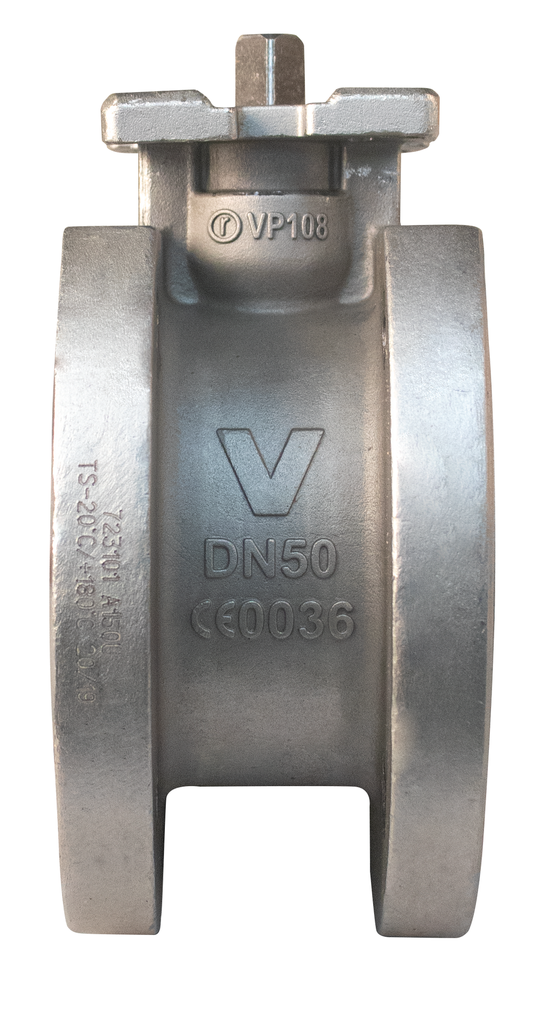

723101 Wafer Series Stainless Steel Direct Mount Flanged ANSI 150 Wafer V-Ball Valve

Representative photo. Please check item description for details.

723101 Wafer Series Stainless Steel Direct Mount Flanged ANSI 150 Wafer V-Ball Valve

723101 Wafer Series direct mount, stainless steel ANSI class 150 wafer-style flanged ball valve, full port.

Features

Temperature range -4°F to +366°F.
Antistatic stem device.
TFM-MPTFE ball seats and thrust washer standard.
Triple stem seals-two Viton® (FKM) O-rings and one P.T.F.E seat.
ISO 5211 mounting pad.
Low torque design.

$ 367.01 367.01 USD $ 367.01

$ 367.01

Valve Size
- 1"
- 1-1/4" + $ 96.30
- 1-1/2" + $ 204.37
- 2" + $ 339.19
- 2-1/2" + $ 730.81
- 3" + $ 1,009.01
- 4" + $ 1,537.59

This combination does not exist.

Add to cart Buy now

Product Datasheets

723101 Wafer Series direct mount, stainless steel ANSI class 150 wafer-style flanged ball valve, full port.

Features

Temperature range -4°F to +366°F.
Antistatic stem device.
TFM-MPTFE ball seats and thrust washer standard.
Triple stem seals-two Viton® (FKM) O-rings and one P.T.F.E seat.
ISO 5211 mounting pad.
Low torque design.

Specifications

Valve Size

1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"
