722V17 Wafer Series Carbon Steel Flanged ANSI 150 Wafer Ball Valve for Fire Safe Applications

Representative photo. Please check item description for details.

722V17 Wafer Series Carbon Steel Flanged ANSI 150 Wafer Ball Valve for Fire Safe Applications

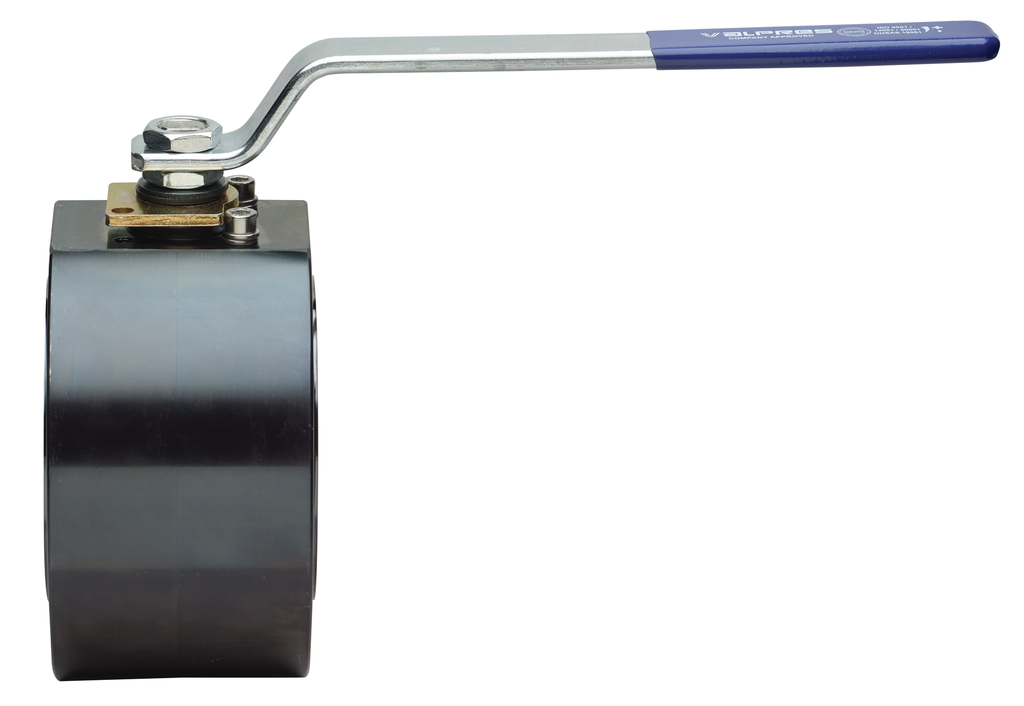

722V17 Wafer Series carbon steel ANSI class 150 flanged ball valve, full port.

Features

Temperature range -4°F to 366°F.
Blow-out proof stem.
TFM-MPTFE ball seats PTFE V-pack stem packing graphoil stem seat.
Space saving design.
100% tested.
Fugitive emission 15848 tested.
ANSI B16.34 design.
ISO 5211 mounting pad with double “D” stem.
Locking handles available.
Fire safe certified to EN ISO 10497 and API 607.

$ 217.21 217.21 USD $ 217.21

$ 217.21

Valve Size
- 1/2"
- 3/4" + $ 23.54
- 1" + $ 32.10
- 1-1/4" + $ 82.39
- 1-1/2" + $ 135.89
- 2" + $ 190.46
- 2-1/2" + $ 453.68
- 3" + $ 576.73
- 4" + $ 945.88

This combination does not exist.

Add to cart Buy now

Product Datasheets

722V17 Wafer Series carbon steel ANSI class 150 flanged ball valve, full port.

Features

Temperature range -4°F to 366°F.
Blow-out proof stem.
TFM-MPTFE ball seats PTFE V-pack stem packing graphoil stem seat.
Space saving design.
100% tested.
Fugitive emission 15848 tested.
ANSI B16.34 design.
ISO 5211 mounting pad with double “D” stem.
Locking handles available.
Fire safe certified to EN ISO 10497 and API 607.

Specifications

Valve Size

1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"
