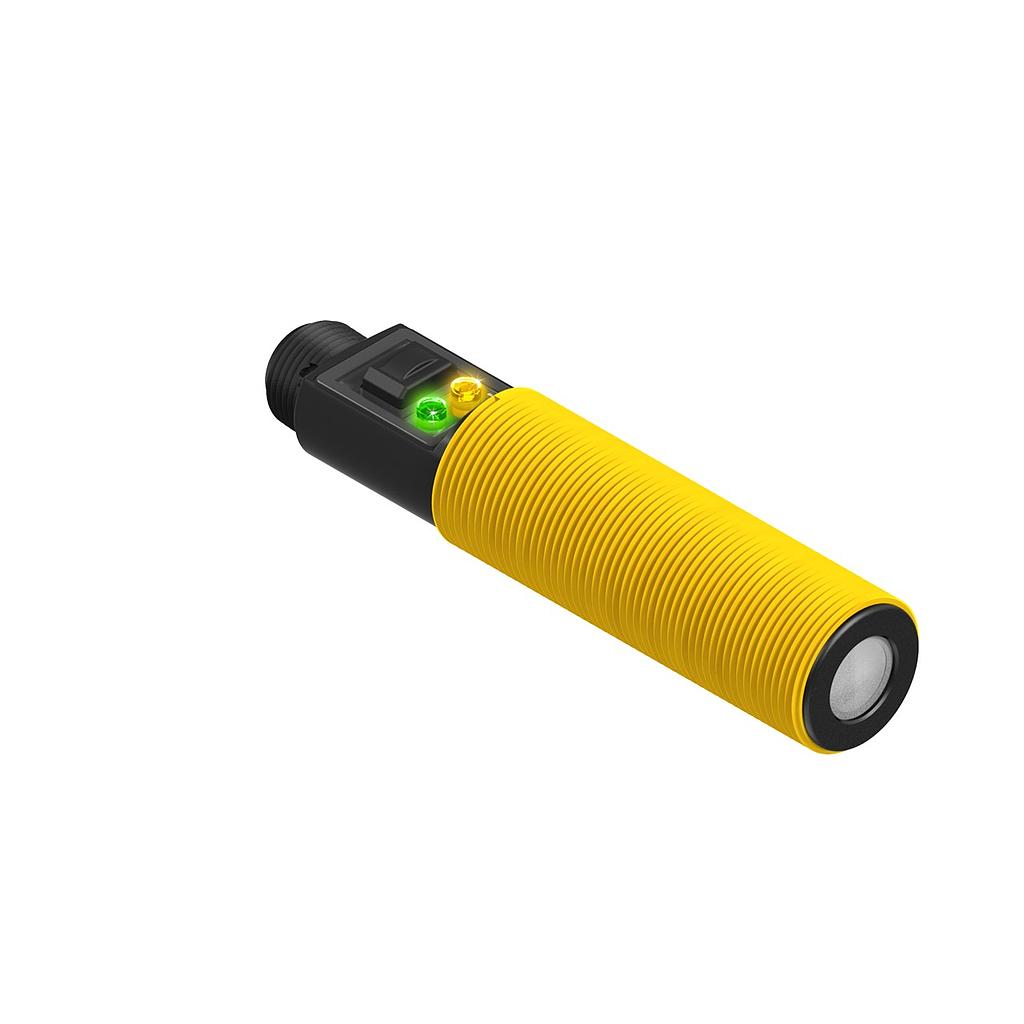

FLAT FACE DISCRETE QD SENSOR (S18UBAQ-72256)

https://www.branom.com/web/image/product.template/35326/image_1920?unique=c26756c
(0 review)

Features:

  • S18UBAQ-72256 FLAT FACE DISCRETE QD SENSOR
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 60 °C
  • Power/Current Consumption (exclusive of load): 65 mA max; 40 mA @ 25 V dc
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 300 ms
  • Ingress Protection: IP67
  • Housing Style: Barrel - Straight
  • Max Sensing Distance: 300 mm
  • Device Type: Sensor
  • Housing Material_: ABS/Polycarbonate
  • Feature: RS-232: No
  • Feature: RS-485: No
  • RS-422: No
  • Feature: Washdown Rated: Yes
  • Feature: IO Link: No
  • Feature: Wireless: No
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Max Op. Relative NC Humidity: 100%
  • Feature: Chemical Resistant: No
  • Number of Pins: 5
  • Adjustments: Push Button; Remote Teach
  • Feature: Timing (Hold/Delay): No
  • Input/Output: Discrete
  • Barrel Diameter: 18
  • Min Response Time: 5 ms
  • Max Discrete (Switched) Output (mA): 100
  • Min Sensing Distance: 30 mm
  • Discrete (Switched) Outputs: Bipolar (NPN & PNP)
  • SSI: No
  • Profibus: No
  • Feature: Remote Teach: Yes
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 6P
  • Barrel Thread: M18
  • Feature: PC Configurable: No
  • Indicator Type: LED
  • Ultrasonic Frequency: 300 kHz

$ 623.00 623.0 USD $ 623.00

$ 623.00

Not Available For Sale
