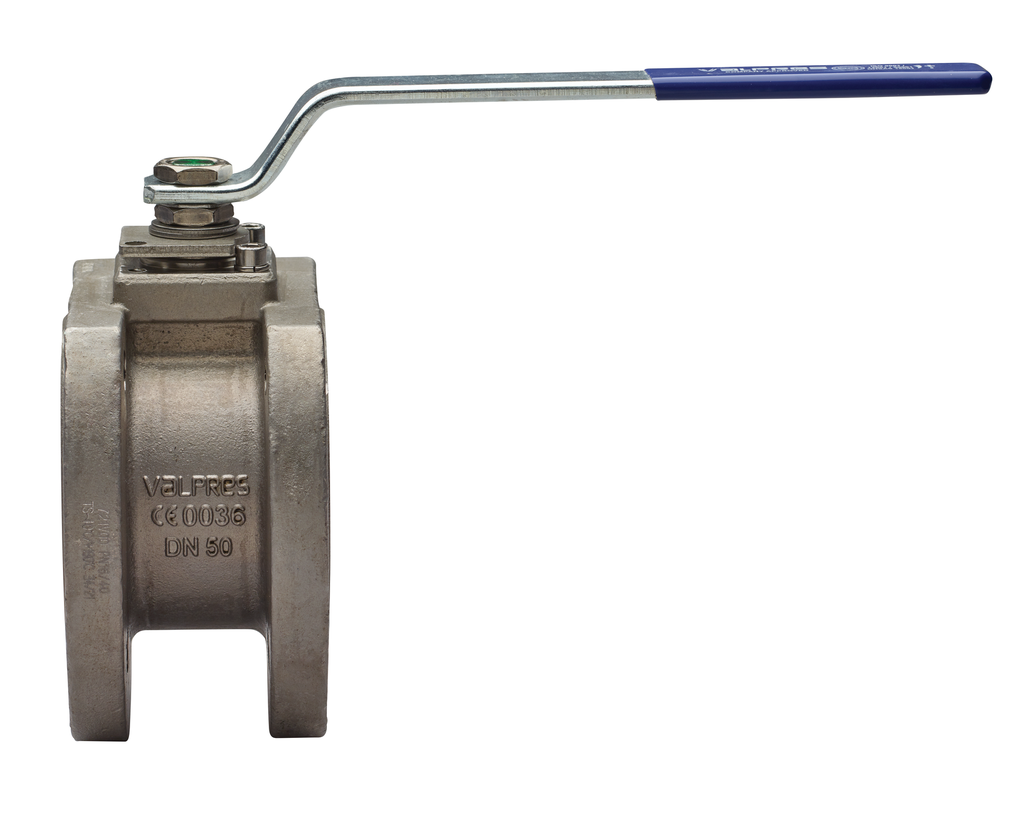

721V16 Wafer Series Stainless Steel Flanged ANSI 150 Wafer Ball Valve for Fire Safe Applications

Representative photo. Please check item description for details.

721V16 Wafer Series Stainless Steel Flanged ANSI 150 Wafer Ball Valve for Fire Safe Applications

721V16 Wafer Series stainless steel ANSI class 150 flanged ball valve, full port.

Features

Temperature range -40°F to 366°F.
Blow-out proof stem.
TFM-MPTFE ball seats PTFE V-pack stem packing graphoil stem seat.
Space saving design.
100% tested.
Fugitive emission 15848 tested.
ANSI B16.34 design.
ISO 5211 mounting pad with double “D” stem.
Locking handles available.
Fire safe certified to EN ISO 10497 and API 607.
Complies with NACE MR 0175/ISO 15156 and NACE MR 0103

$ 328.49 328.49 USD $ 328.49

$ 328.49

Valve Size
- 1/2"
- 3/4" + $ 47.08
- 1" + $ 68.48
- 1-1/4" + $ 179.76
- 1-1/2" + $ 261.08
- 2" + $ 420.51
- 2-1/2" + $ 816.41
- 3" + $ 1,133.13
- 4" + $ 1,688.46

This combination does not exist.

Add to cart Buy now

Product Datasheets

721V16 Wafer Series stainless steel ANSI class 150 flanged ball valve, full port.

Features

Temperature range -40°F to 366°F.
Blow-out proof stem.
TFM-MPTFE ball seats PTFE V-pack stem packing graphoil stem seat.
Space saving design.
100% tested.
Fugitive emission 15848 tested.
ANSI B16.34 design.
ISO 5211 mounting pad with double “D” stem.
Locking handles available.
Fire safe certified to EN ISO 10497 and API 607.
Complies with NACE MR 0175/ISO 15156 and NACE MR 0103

Specifications

Valve Size

1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"
