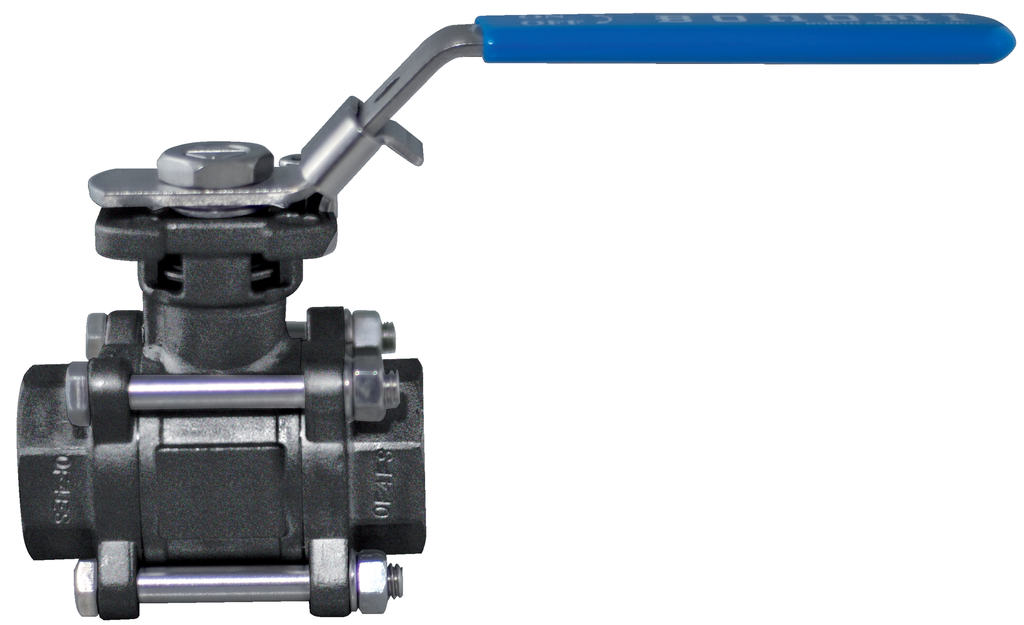

720LL / 721LL / 722LL North America Series Full Port 3 pc. Stainless Steel Ball Valve w/ Locking Lever and ISO 5211 Mounting Pad
720LL / 721LL / 722LL Bonomi North America Series 3-piece direct mount ball valve with latch locking handle, full port.
Features
ISO 5211 mounting pad/square stem.
Blow-out proof stem, multi-layer V-ring adjustable stem packing.
Pressure rating 1/4” to 2” 1000 psi, 2 1/2” to 4” 800 psi - 150 psi steam.
Temperature range -40°F to +440°F.
TFM 1600 seats, PTFE packing and thrust washer.
Live loaded stem packing design.
Model Details
720 LL: FNPT THREADED - size 1/4” to 4”.
721 LL: SOCKET WELD - size 1/4” to 4”.
722 LL: BUTT WELD - size 1/4” to 4”.
720LL / 721LL / 722LL Bonomi North America Series 3-piece direct mount ball valve with latch locking handle, full port.
Features
ISO 5211 mounting pad/square stem.
Blow-out proof stem, multi-layer V-ring adjustable stem packing.
Pressure rating 1/4” to 2” 1000 psi, 2 1/2” to 4” 800 psi - 150 psi steam.
Temperature range -40°F to +440°F.
TFM 1600 seats, PTFE packing and thrust washer.
Live loaded stem packing design.
Model Details
720 LL: FNPT THREADED - size 1/4” to 4”.
721 LL: SOCKET WELD - size 1/4” to 4”.
722 LL: BUTT WELD - size 1/4” to 4”.
Specifications
| Model | [720LL] NPT Ends, [721LL] SW Ends, [722LL] BW Ends |
| Valve Size | 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4" |
