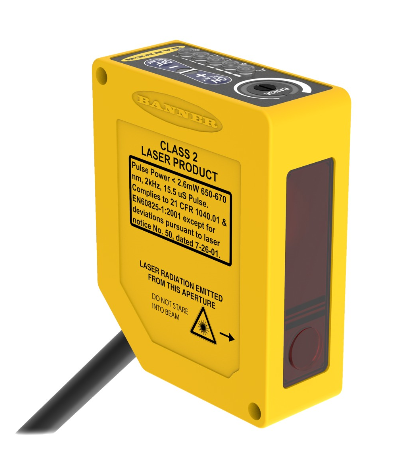

Representative photo. Please check item description for details.

6 in 5-PIN PUR PGTL (Q60BB6LAF2000QPMA)

https://www.branom.com/web/image/product.template/35228/image_1920?unique=c26756c
(0 review)

Features:

  • Q60BB6LAF2000QPMA 6 in 5-PIN PUR PGTL
  • Max Operating Temperature: 50 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 1000 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 500
  • Sensing Beam: Visible Red Laser
  • Housing Style: Rectangular
  • Max Sensing Distance: 2000 mm
  • Sensing Mode (Detailed): Background Suppression (Adjustable)
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 90% @ 50 °C
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12 (Euro)
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 5
  • Output Response Time: 2 ms
  • Operation: Light/Dark Operate
  • Adjustments: Screw Adjustment
  • Feature: Timing (Hold/Delay): Yes
  • Small Visible Spot: Laser
  • Feature: Encapsulated: No
  • Feature: Remote Teach: Yes
  • Feature: Intrinsically Safe: No
  • Connection: Pigtail PUR QD
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 150 mm
  • Indicator Type: LED

$ 571.00 571.0 USD $ 571.00

$ 571.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
