  3. 720370-V36-V6-V9 Wafer V-Ball Series Stainless Steel Flanged Wafer ANSI 150 30-60° V-ball valve
Public Pricelist (v2)
‎

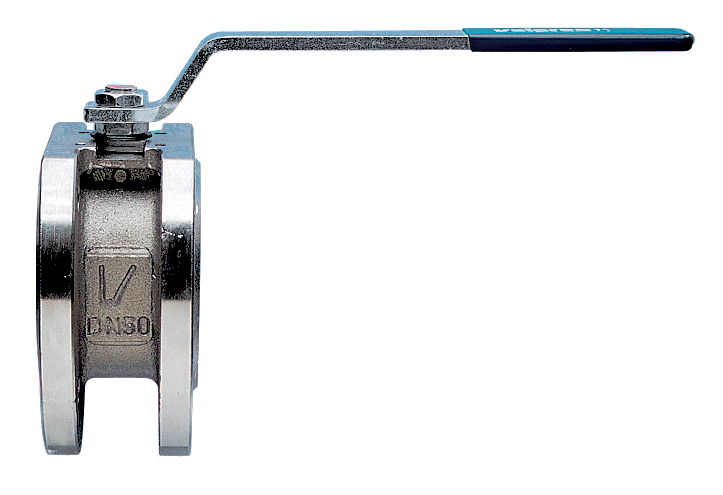

720370-V36-V6-V9 Wafer V-Ball Series Stainless Steel Flanged Wafer ANSI 150 30-60° V-ball valve
Representative photo. Please check item description for details.

720370-V36-V6-V9 Wafer V-Ball Series Stainless Steel Flanged Wafer ANSI 150 30-60° V-ball valve

https://www.branom.com/web/image/product.template/534830/image_1920?unique=c26756c
(0 review)

720370-V36-V6-V9 Wafer V-Ball Series stainless steel ANSI class 150 flanged V-ball valve 30-60, 60, 90 degrees V ports.

Features

  • Temperature range -4°F to 406°F.
  • Blow-out proof stem, Antistatic Device.
  • RPTFE seats, packing and thrust washer.
  • Thermal relief hole in the ball.
  • Space saving design.
  • 100% tested.
  • TUV T.A. Luft approved.
  • ANSI B16.34 design.
  • ISO 5211 mounting pad and double “D" stem.

$ 249.31 249.31 USD $ 249.31

$ 249.31

Not Available For Sale

  • Model
  • Valve Size

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

720370-V36-V6-V9 Wafer V-Ball Series stainless steel ANSI class 150 flanged V-ball valve 30-60, 60, 90 degrees V ports.

Features

  • Temperature range -4°F to 406°F.
  • Blow-out proof stem, Antistatic Device.
  • RPTFE seats, packing and thrust washer.
  • Thermal relief hole in the ball.
  • Space saving design.
  • 100% tested.
  • TUV T.A. Luft approved.
  • ANSI B16.34 design.
  • ISO 5211 mounting pad and double “D" stem.

Specifications

Model [720370V36] 30-60°, [720370V6] 60°, [720370V9] 90°
Valve Size 1/2", 3/4", 1", 1-1/2", 2", 3", 4", 6"
