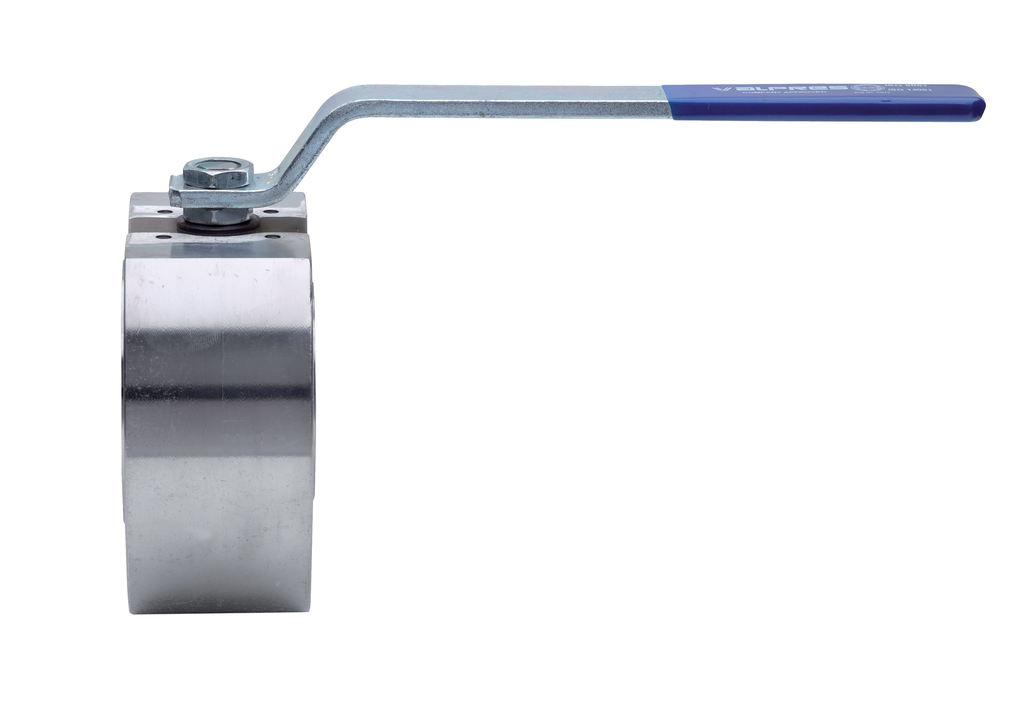

720288 / 720741 Wafer Series Stainless Steel Flanged ANSI 300 Wafer Ball Valve
720288 Wafer Series stainless steel, ANSI class 300 flanged ball valve full port, stainless steel ball and stem.
Features
- Temperature range -4°F to 366°F.
- Blow-out proof stem.
- RPTFE seats, packing and thrust washer.
- Space saving design.
- 100% tested.
- TUV T.A. Luft approved.
- ANSI B16.34 design.
- ISO 5211 mounting pad with double “D” stem.
Model Details
- 720288: size 1/2” to 6”.
- 720741: FIRE SAFE APPROVED TO BS6755PART.2 WITH ANTISTATIC STEM DEVICE AND CARBON FILLED PTFE SEATS - size 1/2” to 6”.
720288 Wafer Series stainless steel, ANSI class 300 flanged ball valve full port, stainless steel ball and stem.
Features
- Temperature range -4°F to 366°F.
- Blow-out proof stem.
- RPTFE seats, packing and thrust washer.
- Space saving design.
- 100% tested.
- TUV T.A. Luft approved.
- ANSI B16.34 design.
- ISO 5211 mounting pad with double “D” stem.
Model Details
- 720288: size 1/2” to 6”.
- 720741: FIRE SAFE APPROVED TO BS6755PART.2 WITH ANTISTATIC STEM DEVICE AND CARBON FILLED PTFE SEATS - size 1/2” to 6”.
Specifications
| Model | [720288] Standard, [720741] for Fire Safe Applications |
| Valve Size | 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4", 6", 1/2" , 3/4" , 1" , 1-1/4" , 1-1/2" , 2" , 2-1/2" , 3" , 4" , 6" |
