Representative photo. Please check item description for details.

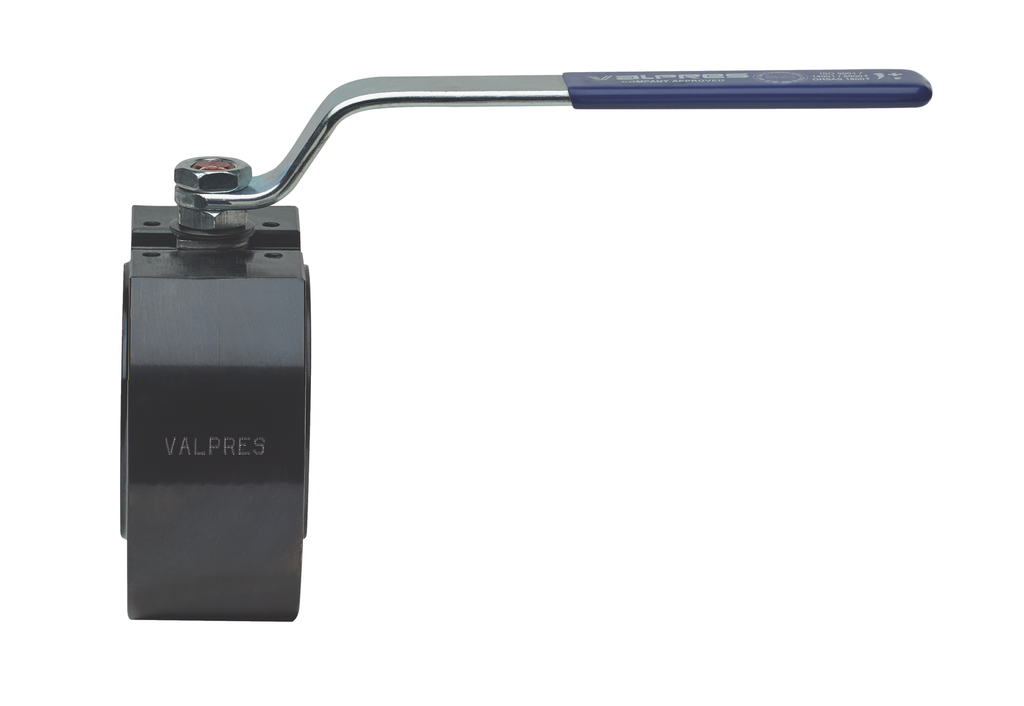

720017 Wafer Series Carbon Steel Flanged ANSI 150 Wafer Ball Valve
720017 Wafer Series carbon steel ANSI class 150 flanged ball valve, full port.
Features
- Temperature range -4°F to 366°F.
- Blow-out proof stem.
- RPTFE seats, packing and thrust washer.
- Space saving design.
- 100% tested.
- TUV T.A. Luft approved.
- ANSI B16.34 design.
- ISO 5211 mounting pad with double “D” stem.
- Locking handles available.
720017 Wafer Series carbon steel ANSI class 150 flanged ball valve, full port.
Features
- Temperature range -4°F to 366°F.
- Blow-out proof stem.
- RPTFE seats, packing and thrust washer.
- Space saving design.
- 100% tested.
- TUV T.A. Luft approved.
- ANSI B16.34 design.
- ISO 5211 mounting pad with double “D” stem.
- Locking handles available.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Alternative Products
Specifications
| Valve Size | 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4", 5", 6" |
