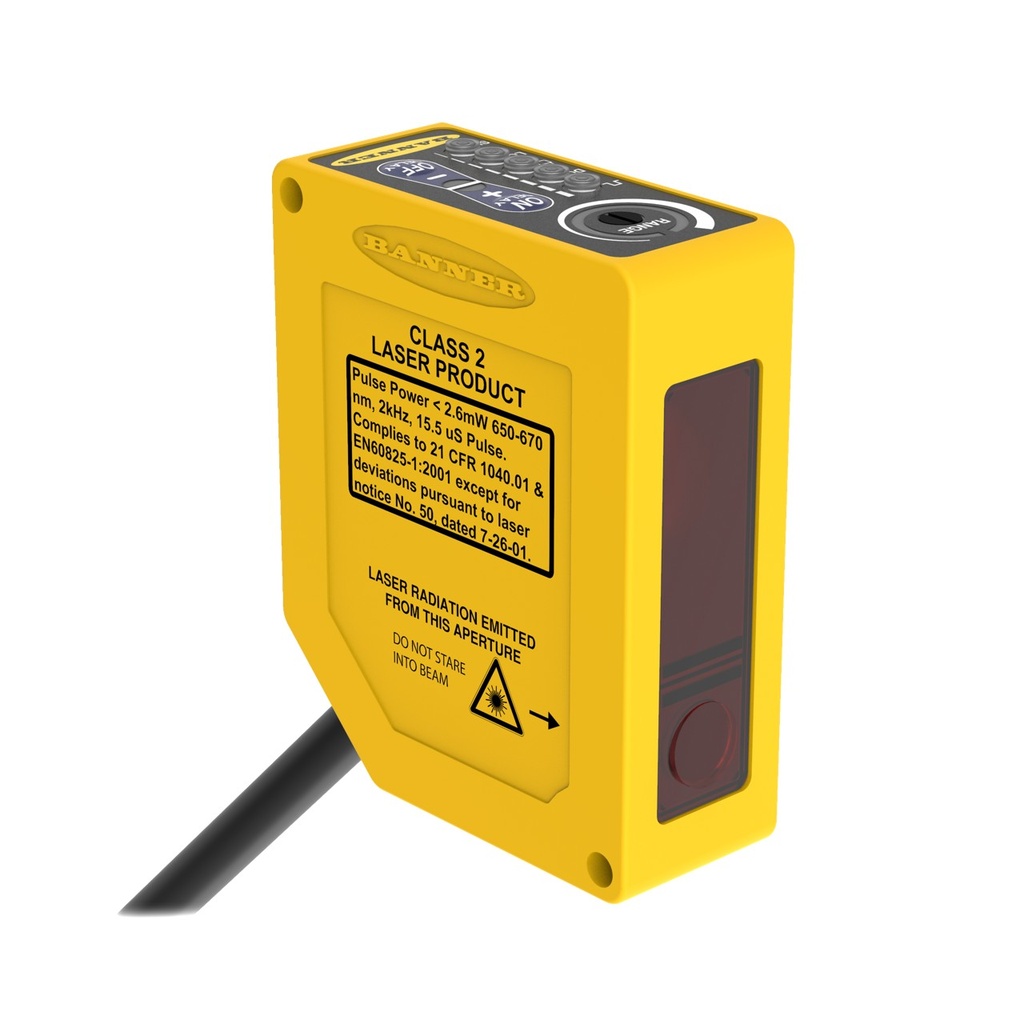

Representative photo. Please check item description for details.

5-PIN MICRO (Q60VR3LAF2000QPMA3)

https://www.branom.com/web/image/product.template/35182/image_1920?unique=c26756c
(0 review)

Features:

  • Q60VR3LAF2000QPMA3 5-PIN MICRO
  • Max Operating Temperature: 45 °C
  • Lens Material: Acrylic
  • Power Supply: 12-250 VDC or 24-250 VAC
  • Delay at Power-Up: 1000 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 500
  • Sensing Beam: Visible Red Laser
  • Housing Style: Rectangular
  • Max Sensing Distance: 2000 mm
  • Sensing Mode (Detailed): Background Suppression (Adjustable)
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 90% @ 50 °C
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: 1/2 in. (Micro)
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 5
  • Output Response Time: 15 ms
  • Operation: Light/Dark Operate
  • Adjustments: Screw Adjustment
  • Feature: Timing (Hold/Delay): Yes
  • Small Visible Spot: Laser
  • Feature: Encapsulated: No
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection: Pigtail QD
  • NEMA / UL: NEMA 6
  • Indicator Type: LED

$ 590.00 590.0 USD $ 590.00

$ 590.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share

    Features:

    • Q60VR3LAF2000QPMA3 5-PIN MICRO
    • Max Operating Temperature: 45 °C
    • Lens Material: Acrylic
    • Power Supply: 12-250 VDC or 24-250 VAC
    • Delay at Power-Up: 1000 ms
    • Ingress Protection: IP67
    • Repeatability (µs): 500
    • Sensing Beam: Visible Red Laser
    • Housing Style: Rectangular
    • Max Sensing Distance: 2000 mm
    • Sensing Mode (Detailed): Background Suppression (Adjustable)
    • Sensing Mode (General): Proximity
    • Max Relative Humidity: 90% @ 50 °C
    • Feature: Hazardous Area: No
    • DeviceNet: No
    • Feature: IO Link: No
    • Feature: Quick Disconnect: Yes
    • Feature: Audible: No
    • Quick Disconnect Type: 1/2 in. (Micro)
    • Feature: Chemical Resistant: No
    • Feature: Water Detection: No
    • Number of Pins: 5
    • Output Response Time: 15 ms
    • Operation: Light/Dark Operate
    • Adjustments: Screw Adjustment
    • Feature: Timing (Hold/Delay): Yes
    • Small Visible Spot: Laser
    • Feature: Encapsulated: No
    • Feature: Remote Teach: No
    • Feature: Intrinsically Safe: No
    • Connection: Pigtail QD
    • NEMA / UL: NEMA 6
    • Indicator Type: LED
