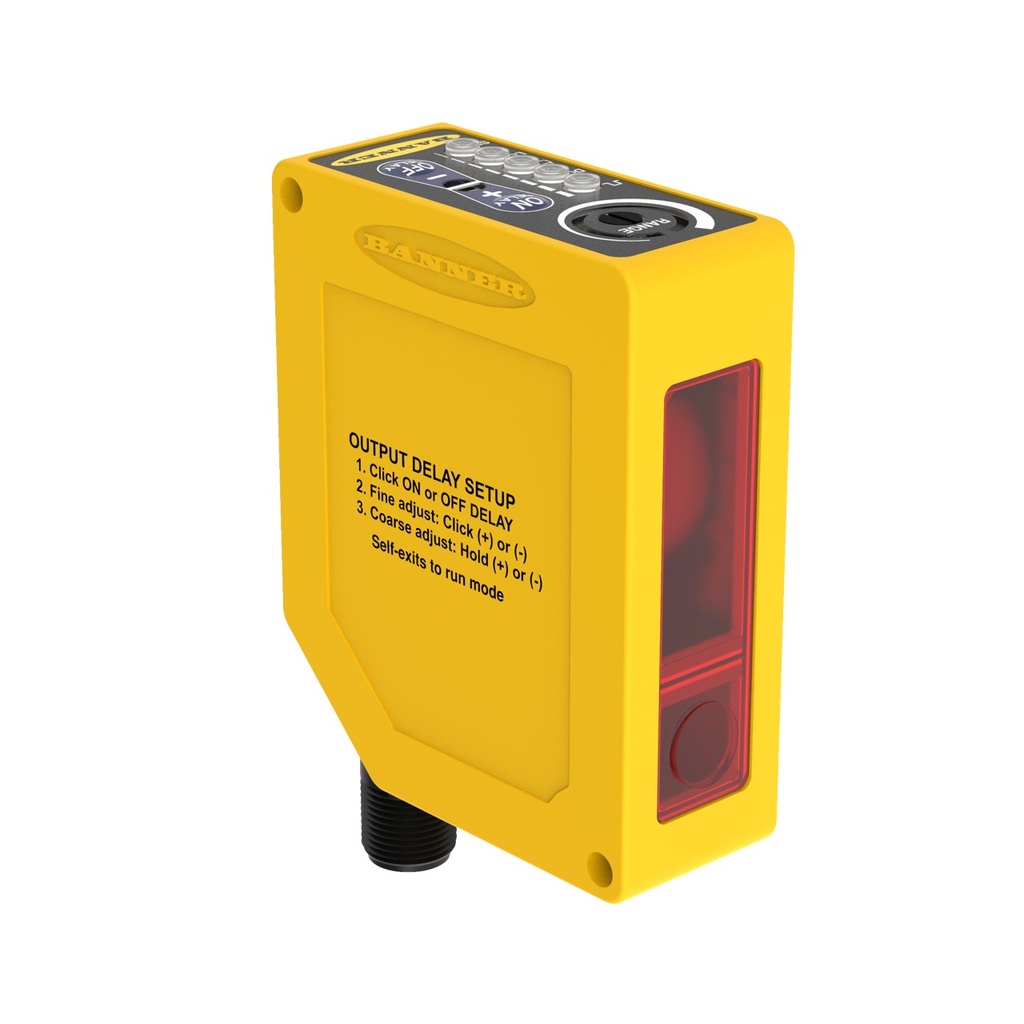

Q60AFV Series Sensors with Visible Red Emitter (Q60BB6AFV1000QPMA)

https://www.branom.com/web/image/product.template/35178/image_1920?unique=c26756c
(0 review)

Features:

  • Q60BB6AFV1000QPMA Q60AFV Series Sensors with Visible Red Emitter
  • Adjustable-Field Background Suppression
  • Cutoff Point: 200mm to 1000mm
  • Input 10-30V dc
  • Output
  • Bipolar
  • 6in Euro 5-Pin Pigtail QD
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 55 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 150 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 500
  • Sensing Beam: Visible Red LED
  • Sensing Beam Wavelength: 665
  • Housing Style: Rectangular
  • Max Sensing Distance: 1000 mm
  • Sensing Mode (Detailed): Background Suppression (Adjustable)
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 5
  • Output Response Time: 2 ms
  • Operation: Light/Dark Operate
  • Adjustments: Screw Adjustment
  • Feature: Timing (Hold/Delay): Yes
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Feature: Remote Teach: Yes
  • Feature: Intrinsically Safe: No
  • Connection Type: Pigtail PUR QD
  • NEMA / UL: NEMA 6
  • Indicator Type: LED
