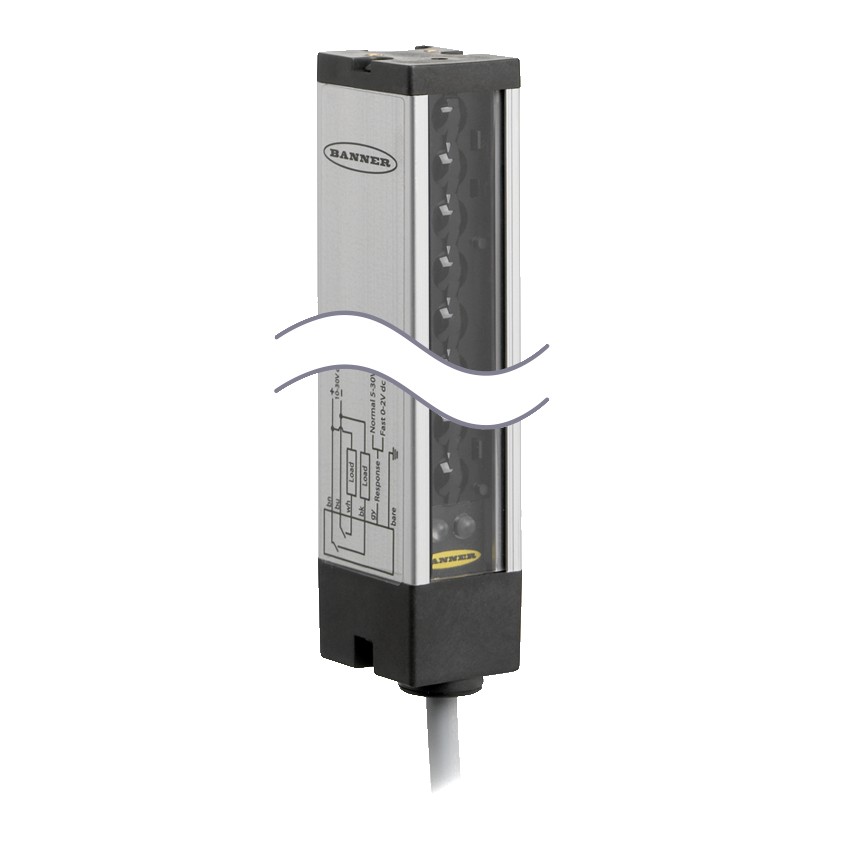

LX Series: Receiver (LX18R)

https://www.branom.com/web/image/product.template/35122/image_1920?unique=c26756c
(0 review)

Features:

  • LX Series: Receiver
  • Standard Range
  • Range: Normal 300 mm to 2 m
  • Input 10-30V dc
  • Output: Bipolar: 1 NPN
  • 1 PNP
  • 2 m (6.5 ft) Cable
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Ingress Protection: IP65
  • Housing Style: Array
  • Max Sensing Distance: 2000 mm
  • Sensing Mode (Detailed): Receiver
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Aluminum
  • Feature: Quick Disconnect: No
  • Output: Bipolar (NPN & PNP)
  • Number of Pins: 5
  • Output Response Time: 4.8 ms ON/10 ms OFF
  • Operation: Dark Operate
  • Feature: Remote Teach: No
  • Min Object Detection: 9.5 mm
  • Connection Type: Cable
  • Cord/Cable Length: 2 m
  • Indicator Type: LED
  • Slot Depth/Array Length (mm): 447 mm
  • Slot Overall Depth (mm): 25.4 mm

$ 916.00 916.0 USD $ 916.00

$ 916.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share
