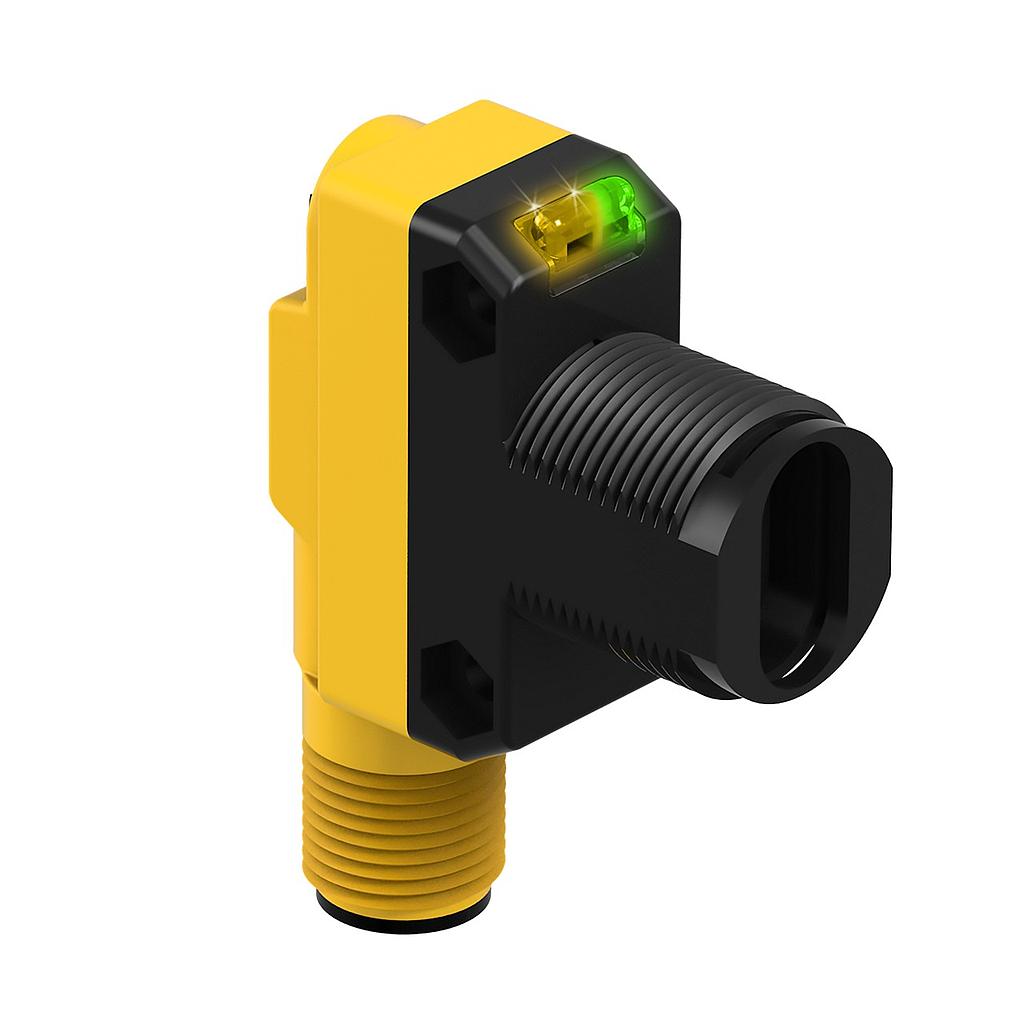

Representative photo. Please check item description for details.

WORLD-BEAM QS18Series: Glass Fiber (QS18VP6FQ8)

https://www.branom.com/web/image/product.template/35093/image_1920?unique=c26756c
(0 review)

Features:

  • WORLD-BEAM QS18Series: Glass Fiber
  • Range: Depends on the fiber
  • Input: 10-30 V dc
  • Output: Complementary Solid State PNP
  • Integral Euro-style Quick-Disconnect Connector
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 70 °C
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Feature: Bussable Power: No
  • Ingress Protection: IP67
  • Repeatability (µs): 150
  • Housing Style: Rectangular w/M18 Mount
  • Max Relative Humidity: 95% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Number of Pins: 4
  • Adjustments: Potentiometer
  • Feature: Timing (Hold/Delay): No
  • Input/Output: Discrete
  • Min Response Time: .6 ms
  • Output Type (Specific): Single Discrete
  • Fiber Type: Glass Only
  • Color LED - Amplifiers: Infrared
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 6
  • Fiber Termination Type: Glass Fiber Termination
  • Indicator Type: Indicator LED

$ 96.00 96.0 USD $ 96.00

$ 96.00

Not Available For Sale
