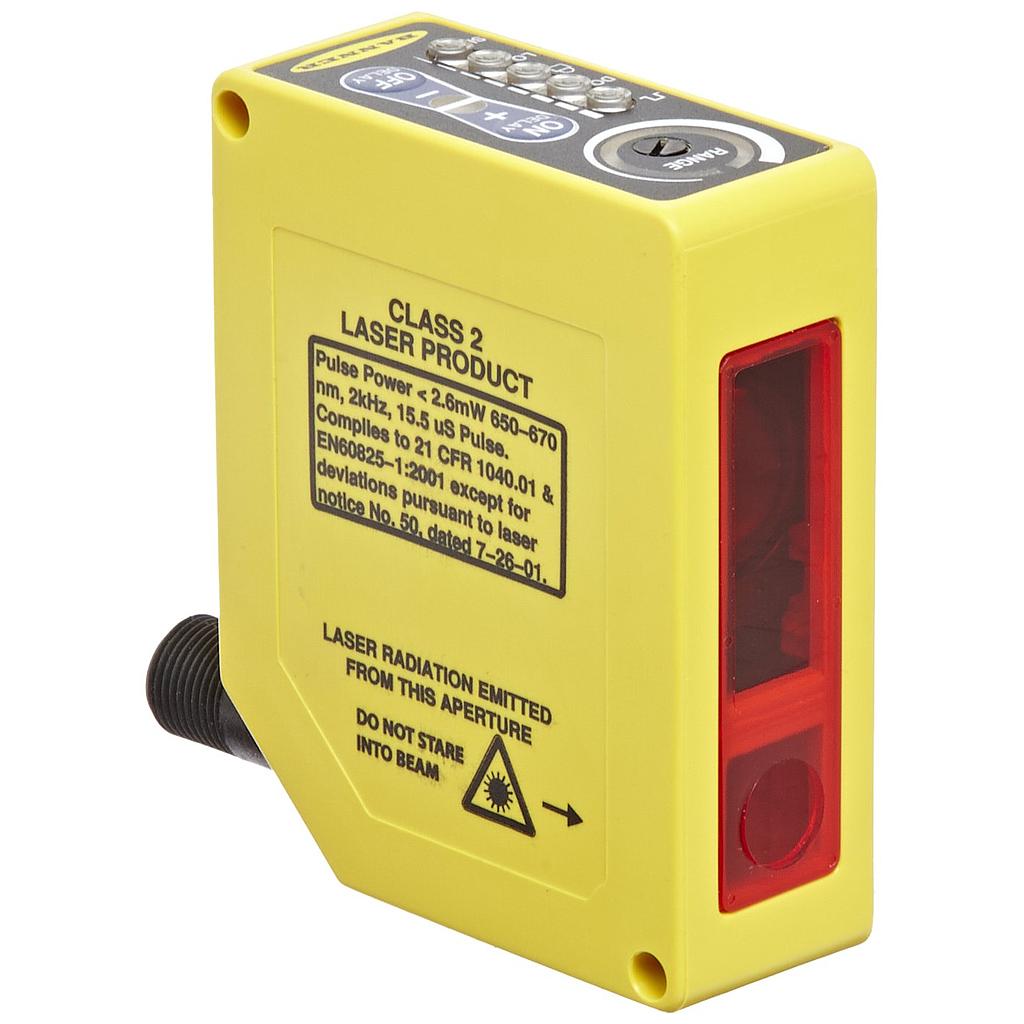

Q60 Series: Adjustable-Field Laser (Class 2) (Q60BB6LAF2000Q)

https://www.branom.com/web/image/product.template/35077/image_1920?unique=c26756c
(0 review)

Features:

  • Q60 Series: Adjustable-Field Laser (Class 2)
  • Range: 200-2000 mm
  • Input: 10-30 V dc
  • Output: Bipolar: 1 NPN
  • 1PNP
  • Euro-Style Euro M12 5-pin Integral QD
  • Min Operating Temperature: -10 °C
  • Max Operating Temperature: 50 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 1000 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 500
  • Sensing Beam: Visible Red Laser
  • Housing Style: Rectangular
  • Max Sensing Distance: 2000 mm
  • Sensing Mode (Detailed): Background Suppression (Adjustable)
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Laser Classification: Class 2
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 5
  • Output Response Time: 2 ms
  • Operation: Light/Dark Operate
  • Adjustments: Screw Adjustment
  • Feature: Timing (Hold/Delay): Yes
  • Small Visible Spot: Laser
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Feature: Remote Teach: Yes
  • Feature: Intrinsically Safe: No
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 6
  • Indicator Type: LED

$ 495.00 495.0 USD $ 495.00

$ 495.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1

    Share

    Features:

    • Q60 Series: Adjustable-Field Laser (Class 2)
    • Range: 200-2000 mm
    • Input: 10-30 V dc
    • Output: Bipolar: 1 NPN
    • 1PNP
    • Euro-Style Euro M12 5-pin Integral QD
    • Min Operating Temperature: -10 °C
    • Max Operating Temperature: 50 °C
    • Lens Material: Acrylic
    • Power Supply: 10-30 VDC
    • Delay at Power-Up: 1000 ms
    • Ingress Protection: IP67
    • Repeatability (µs): 500
    • Sensing Beam: Visible Red Laser
    • Housing Style: Rectangular
    • Max Sensing Distance: 2000 mm
    • Sensing Mode (Detailed): Background Suppression (Adjustable)
    • Sensing Mode (General): Proximity
    • Max Relative Humidity: 90% @ 50 °C
    • Housing Material_: Thermoplastic
    • Laser Classification: Class 2
    • Feature: Hazardous Area: No
    • DeviceNet: No
    • Feature: IO Link: No
    • Feature: Quick Disconnect: Yes
    • Feature: Audible: No
    • Quick Disconnect Type: M12
    • Feature: Chemical Resistant: No
    • Feature: Water Detection: No
    • Number of Pins: 5
    • Output Response Time: 2 ms
    • Operation: Light/Dark Operate
    • Adjustments: Screw Adjustment
    • Feature: Timing (Hold/Delay): Yes
    • Small Visible Spot: Laser
    • Feature: Encapsulated: No
    • Input/Output: Discrete
    • Feature: Remote Teach: Yes
    • Feature: Intrinsically Safe: No
    • Connection Type: Integral QD
    • NEMA / UL: NEMA 6
    • Indicator Type: LED
