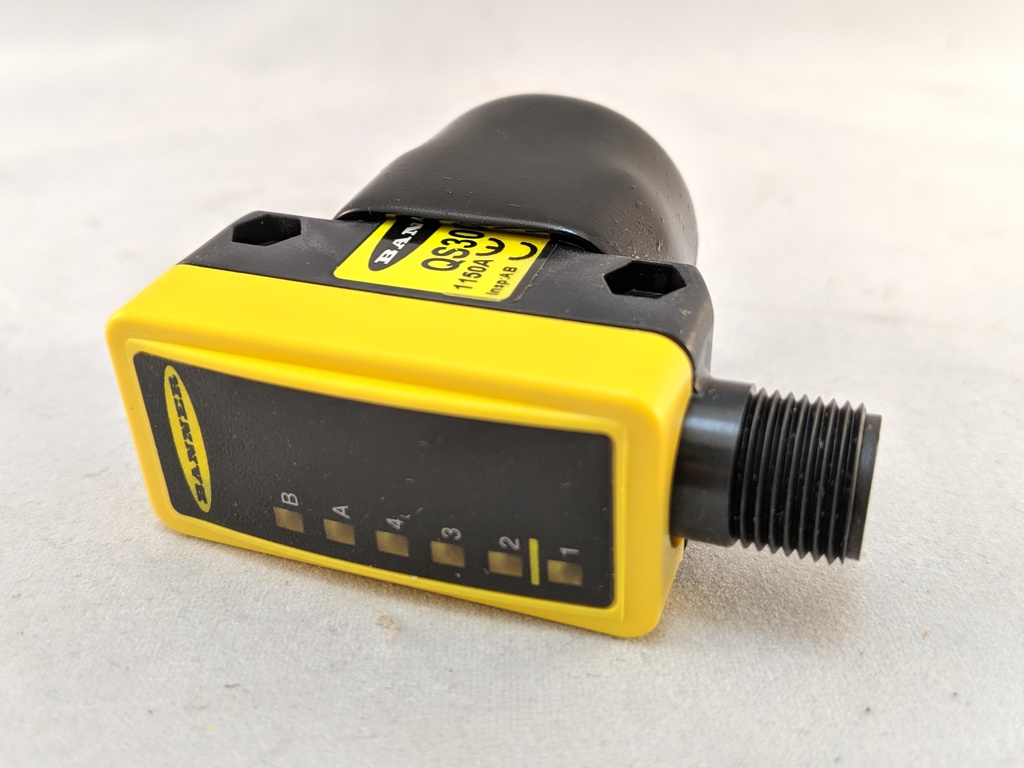

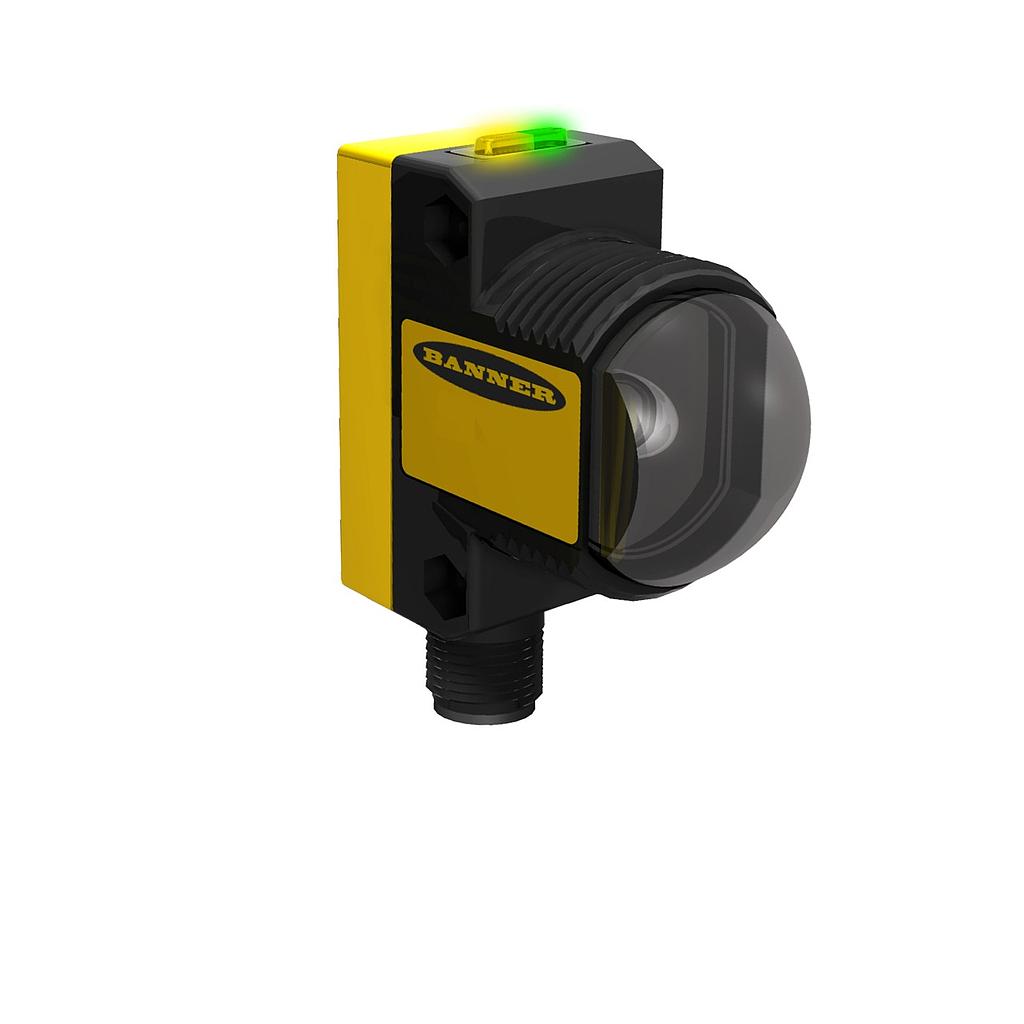

QS30RRXQ High-Performance Long-Range Sensor

https://www.branom.com/web/image/product.template/35075/image_1920?unique=c26756c
(0 review)

Features:

    WORLD-BEAM QS30 Series: High-Powered Receiver; Range: 213 M; Input: 10-30V dc; Output: DO (Dark Operate) Bipolar: 1 NPN; 1 PNP; Euro-Style Quick-Disconnect Connector
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Zeonex
  • Case Material: Thermoplastic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Output Communication Protocol: PNP, NPN
  • Input Voltage: 10-30 VDC
  • Ingress Protection: IP69
  • Repeatability (µs): 5000
  • Sensing Beam: Infrared LED
  • Sensing Beam Wavelength: 875
  • Housing Style: Rectangular w/M30 Mount
  • Max Sensing Distance: 213000 mm
  • Sensing Mode (Detailed): Receiver
  • Sensing Mode (General): Opposed
  • Max Relative Humidity: 95% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Washdown Rated: Yes
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: No
  • Opposed Mode Emitter/Receiver: Receiver
  • Feature: Water Detection: No
  • Number of Pins: 5
  • Output Response Time: 5 ms
  • Operation: Dark Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: Yes
  • Input/Output: Discrete
  • Barrel Diameter: 30 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Integral QD
  • Sensing Mode: Receiver
  • NEMA / UL: NEMA 6
  • Indicator Type: Bargraph

$ 186.00 186.0 USD $ 186.00

$ 186.00

Not Available For Sale

    This combination does not exist.

    Contact Us
