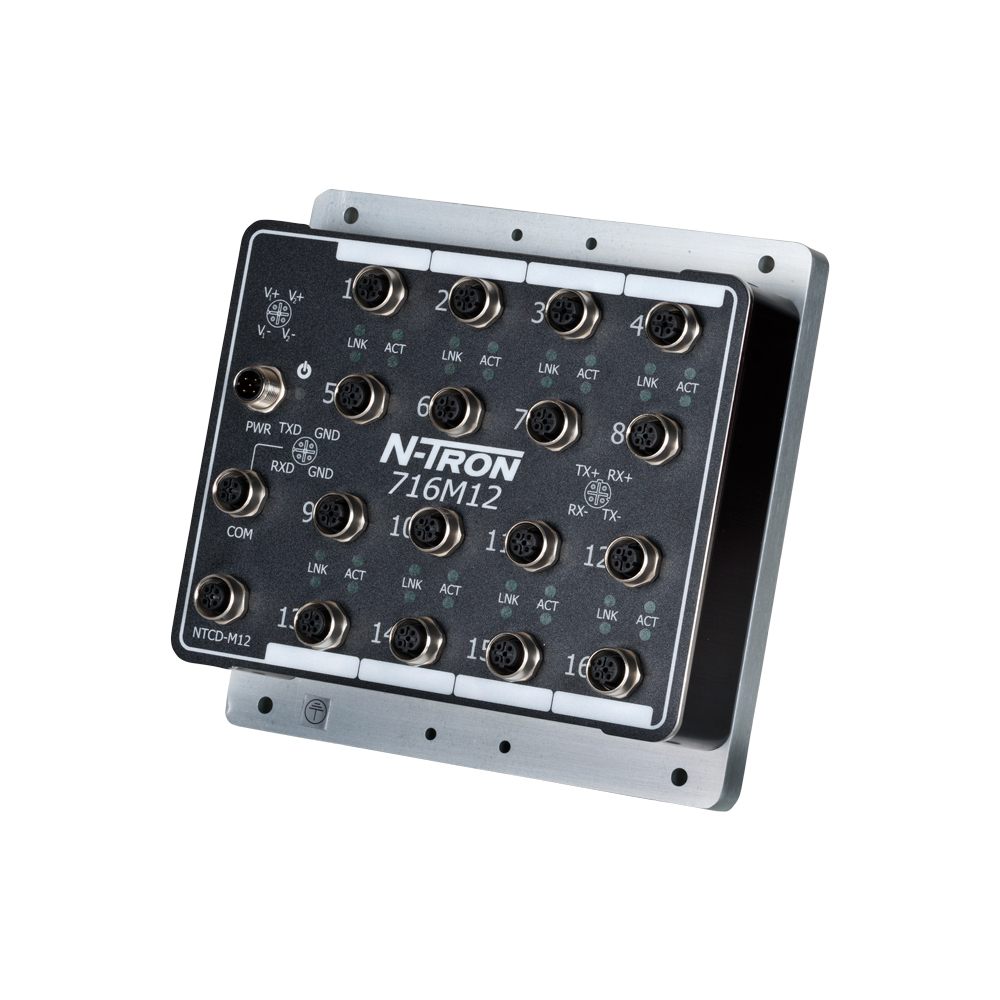

NT-700 Series, 16-Port, N-Tron 716M12 IP67 Industrial Ethenet Switch
For applications in extreme environments, check out Red Lion's N-Tron series 700 managed industrial Ethernet switches. Our 700 series support SNMP, web management, Fast Ethernet, and N-View™ which facilitate remote configuration and diagnostics. Housed in rugged DIN-rail mountable or waterproof IP67 enclosures, the 700 managed industrial Ethernet switches feature extended shock and vibration specifications, wide operating temperature ratings and best-in-class ring technology, providing 30ms healing times.
Features
- 16 Port IP67 Industrial Ethernet Switch
- Sixteen 10/100BaseTX M12 D-Coded Ports
- -40°C to 85°C Operating Temperature
- Auto Sensing 10/100BaseTX, Duplex, and MDIX
- Redundant Power Inputs (10-49 VDC)
- ESD and Surge Protection on all Built-in Ports
- Configurable Bi-Color Fault Status LED
- IP67 Rated Hardened Metal Enclosure
- Bulkhead Mountable (Optional DIN-Rail mounting)
- Dustproof
- Protection against low/high pressure water jets
- Temporary immersion in water
- Fully Managed Features:
- SNMP v1, v2, v3 and Web Browser Management
- N-Ring™ Technology with ~30ms Healing
- N-Link™ Redundant Ring Technology
- N-View™ Monitoring Technology
- EtherNet/IP™ CIP Messaging
- Web configuration
- IGMP Auto Configuration
- 802.1Q tag VLAN and Port VLAN
- 802.1p QoS and Port QoS
- Port Trunking
- Port Mirroring
- 802.1d, 802.1w, 802.1D RSTP
- DHCP Server with Option 82 Relay, Option 61, and IP Fallback
- Local Port IP Addressing
- 802.1AB-2005 LLDP (Link Layer Discovery Protocol)
- Port Security - MAC Address Based Filtering
For applications in extreme environments, check out Red Lion's N-Tron series 700 managed industrial Ethernet switches. Our 700 series support SNMP, web management, Fast Ethernet, and N-View™ which facilitate remote configuration and diagnostics. Housed in rugged DIN-rail mountable or waterproof IP67 enclosures, the 700 managed industrial Ethernet switches feature extended shock and vibration specifications, wide operating temperature ratings and best-in-class ring technology, providing 30ms healing times.
Features
- 16 Port IP67 Industrial Ethernet Switch
- Sixteen 10/100BaseTX M12 D-Coded Ports
- -40°C to 85°C Operating Temperature
- Auto Sensing 10/100BaseTX, Duplex, and MDIX
- Redundant Power Inputs (10-49 VDC)
- ESD and Surge Protection on all Built-in Ports
- Configurable Bi-Color Fault Status LED
- IP67 Rated Hardened Metal Enclosure
- Bulkhead Mountable (Optional DIN-Rail mounting)
- Dustproof
- Protection against low/high pressure water jets
- Temporary immersion in water
- Fully Managed Features:
- SNMP v1, v2, v3 and Web Browser Management
- N-Ring™ Technology with ~30ms Healing
- N-Link™ Redundant Ring Technology
- N-View™ Monitoring Technology
- EtherNet/IP™ CIP Messaging
- Web configuration
- IGMP Auto Configuration
- 802.1Q tag VLAN and Port VLAN
- 802.1p QoS and Port QoS
- Port Trunking
- Port Mirroring
- 802.1d, 802.1w, 802.1D RSTP
- DHCP Server with Option 82 Relay, Option 61, and IP Fallback
- Local Port IP Addressing
- 802.1AB-2005 LLDP (Link Layer Discovery Protocol)
- Port Security - MAC Address Based Filtering
