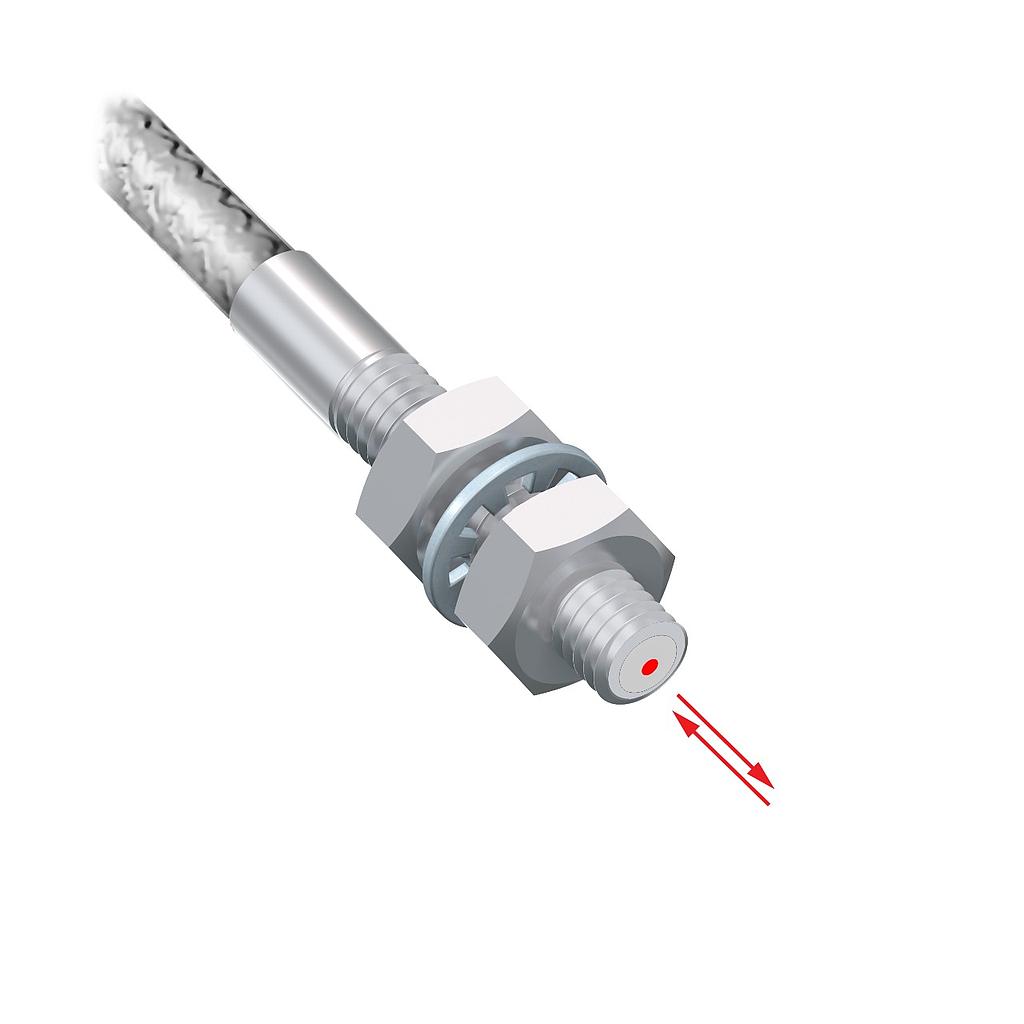

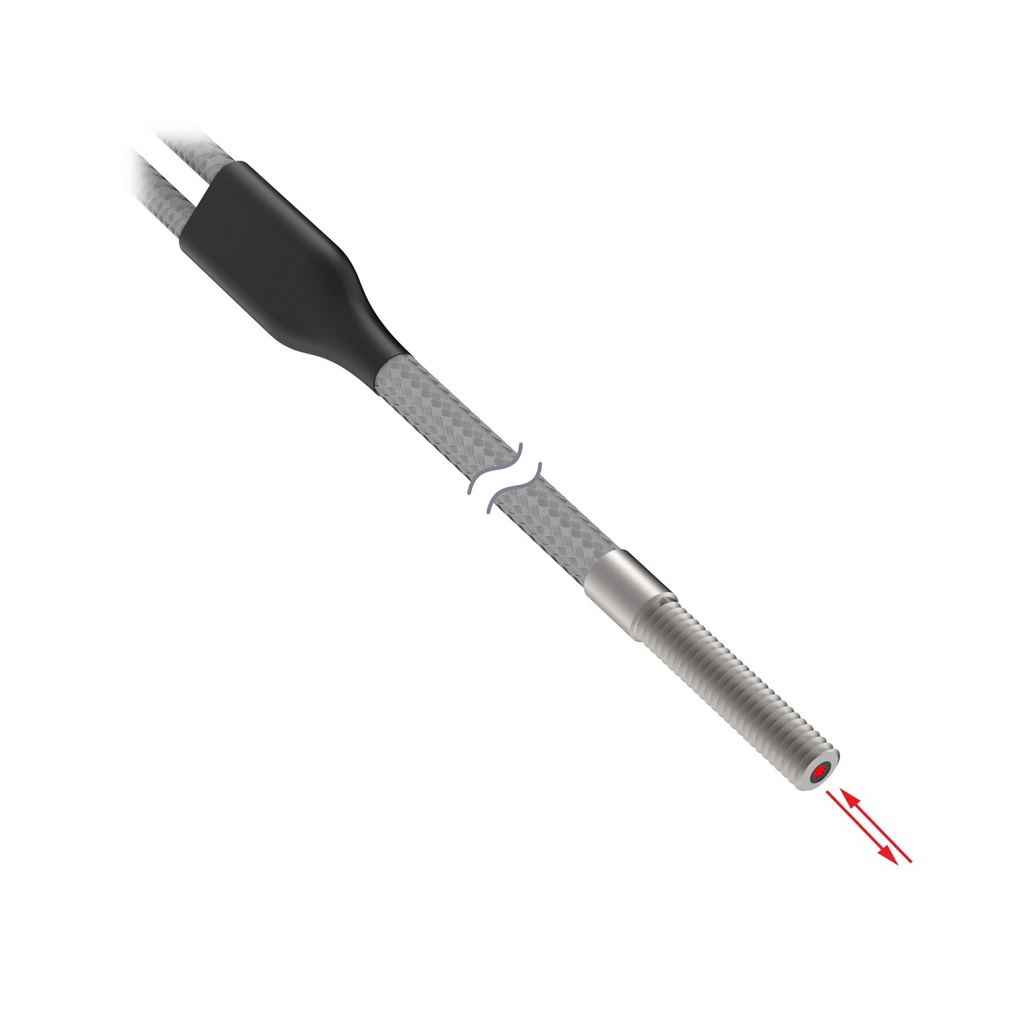

Plastic Fiber, Diffuse Reflective (PBCT23TMB5M4)

https://www.branom.com/web/image/product.template/34960/image_1920?unique=c26756c
(0 review)

Features:

  • Plastic Fiber, Diffuse Reflective
  • Core Dia.: 0.5 mm & 9 x 0.25 mm
  • Fiber Length 1 m
  • Coaxial, Thread
  • SteelSkin, TMB5 Termination
  • Max Operating Temperature: 70 °C
  • Housing Style: Round
  • Sensing Mode (Detailed): Coaxial
  • Sensing Mode (General): Diffuse
  • Feature: Chemical Resistant: No
  • Sensing End Segment 1: Thread
  • Tariff Fiber Meters: 10 fbm
  • Measured Max Distance: 80 mm
  • Min Bend Radius: 12 mm
  • Feature: Vacuum Feed Through: None
  • Feature: Small Object Detection: No
  • Fiber Sensing End Size: M4
  • Feature: Retractile: No
  • Fiber Sensing End Tip: Thread
  • Termination: Terminated
  • Sensing End Material (Specific): Stainless Steel
  • Feature: Integrated Lens: Yes
  • Core Diameter: 0.5 & 9 x 0.3 mm
  • Fiber Sheathing Material (Jacket): Steelskin
  • Feature: Extended Range: No
  • Feature: Flex Relief: No
  • Termination Type: Plastic Fiber Sensors
  • Fiber Sensing End Size - Mounting Area: M4
  • Fiber Length: 1 m
  • Fiber Optic Type: Plastic
  • Beam Exit: In-line
  • Feature: Liquid Level: No
  • Max Range: DF-G3: > 500mm to <= 1000mm
  • Min Hinged Door Size: 12 mm
  • Min Repeat Bending Endurance: 2000
  • Max Distance: DF-G1: 80 mm
  • Max Distance: DF-G3: 622 mm
  • Max Distance: DF-G2: 130 mm
  • Minimum Bend Radius: 12 mm
