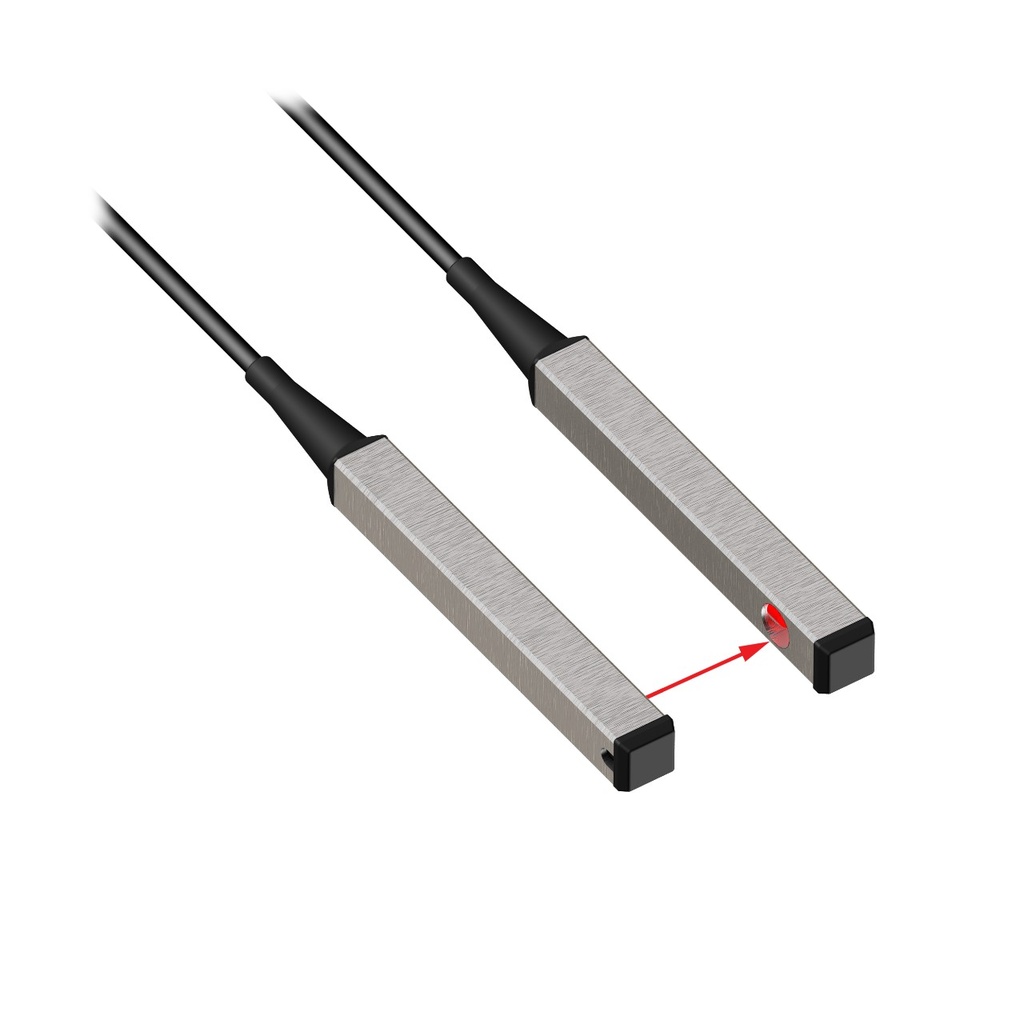

Plastic Fiber, Opposed Mode (PLIS-1)

https://www.branom.com/web/image/product.template/34866/image_1920?unique=c26756c
(0 review)

Features:

  • Plastic Fiber, Opposed Mode
  • Core Dia.: 0.5 mm
  • Fiber Length 2 m
  • Lens
  • Free cut
  • Max Operating Temperature: 70 °C
  • Housing Style: Rectangular
  • Sensing Mode (Detailed): Reflective
  • Sensing Mode (General): Opposed
  • Feature: Chemical Resistant: No
  • Sensing End Segment 1: Rectangle
  • Tariff Fiber Meters: 4 fbm
  • Min Bend Radius: 10 mm
  • Feature: Vacuum Feed Through: None
  • Feature: Small Object Detection: No
  • Fiber Sensing End Size: 3.0 x 3.0 mm
  • Feature: Retractile: No
  • Fiber Sensing End Tip: Lens
  • Termination: Free Cut
  • Sensing End Material (Specific): Stainless Steel
  • Feature: Integrated Lens: No
  • Core Diameter: 0.5 mm
  • Fiber Sheathing Material (Jacket): Polyethylene
  • Feature: Extended Range: Yes
  • Feature: Flex Relief: No
  • Termination Type: Plastic Fiber Sensors
  • Fiber Sensing End Size - Mounting Area: 3.0 x 3.0 mm
  • Fiber Length: 2 m
  • Fiber Optic Type: Plastic
  • Sensing End Segment 2: Sideview
  • Sensing End Segment 3: Lens
  • Beam Exit: Right Angle
  • Feature: Liquid Level: No
  • Min Hinged Door Size: 10 mm
  • Min Repeat Bending Endurance: 5000
  • Max Distance: DF-G1: No Data
  • Max Distance: DF-G3: No Data
  • Max Distance: DF-G2: No Data
  • Minimum Bend Radius: 10 mm

$ 215.00 215.0 USD $ 215.00

$ 215.00

Not Available For Sale

    This combination does not exist.
