Assy On Brkt Smbco108/02959 Qs18 (QS18EN6WQ5-71032)

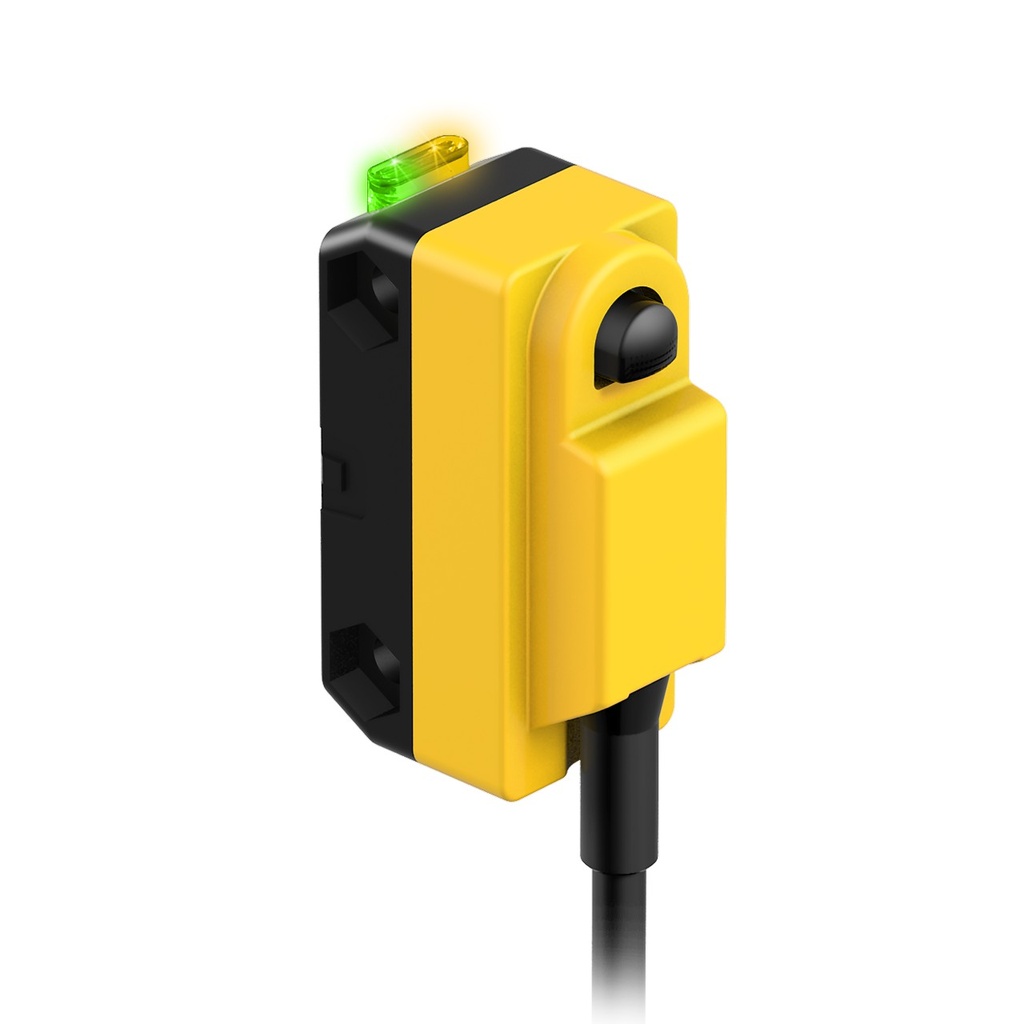

Representative photo. Please check item description for details.

Assy On Brkt Smbco108/02959 Qs18 (QS18EN6WQ5-71032)

https://www.branom.com/web/image/product.template/204250/image_1920?unique=c26756c
(0 review)

Features:

    QS18EN6WQ5-71032 ASSY ON BRKT SMBCO108/02959 QS18
  • Lens Material: PMMA
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 75
  • Sensing Beam: Infrared LED
  • Housing Style: Rectangular
  • Max Sensing Distance: 300 mm
  • Sensing Mode (Detailed): Divergent
  • Sensing Mode (General): Proximity
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12 (Euro)
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 0.6 ms
  • Operation: Light/Dark Operate
  • Adjustments: Teach Button
  • Feature: Timing (Hold/Delay): Yes
  • Feature: Encapsulated: No
  • Feature: Remote Teach: Yes
  • Feature: Intrinsically Safe: No
  • Connection: Pigtail QD
  • NEMA / UL: NEMA 6
  • Indicator Type: LED

$ 150.00 150.0 USD $ 150.00

$ 150.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
