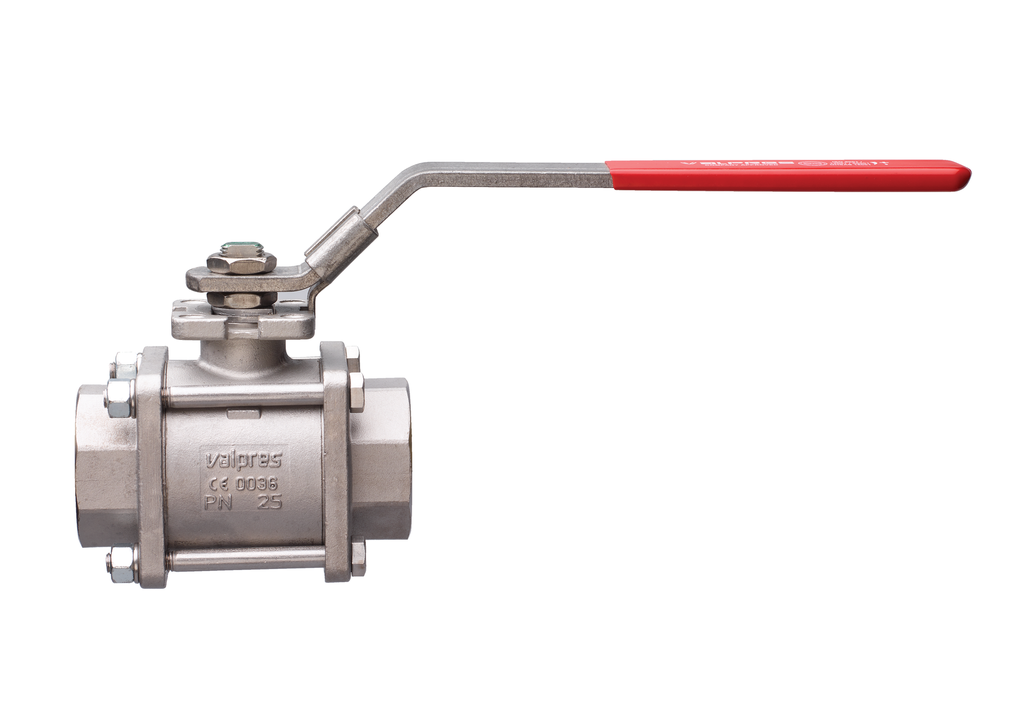

710190 Radiamont Series, Full Port 3 pc. Stainless Steel Ball Valve FNPT Threaded w/ ISO 5211 Pad and Double "D" Stem for Steam
410190 Radiamont Series 3-piece stainless steel ball valve for steam, full port.
Features
Steam pressure to 250 psi.
Working pressure is 1000 psi (1/4” to 1/2”), 600 psi (3/4” to 1”), 365 psi (1 1/4” to 2”), 250 psi (2 1/2” to 4”).
Temperature range: -4°F to 406° F.
Blow-out proof stem, adjustable stem packing.
ISO 5211 mounting pad with double “D” stem.
100% electronically tested in the open and closed position at 80 psi.
TUV T.A. Luft approved.
25% carbon filled PTFE ball seats.
Standard Latch Lock Handle.
Complies with NACE MR 0175/ISO 15156 and NACE MR 1103.
410190 Radiamont Series 3-piece stainless steel ball valve for steam, full port.
Features
Steam pressure to 250 psi.
Working pressure is 1000 psi (1/4” to 1/2”), 600 psi (3/4” to 1”), 365 psi (1 1/4” to 2”), 250 psi (2 1/2” to 4”).
Temperature range: -4°F to 406° F.
Blow-out proof stem, adjustable stem packing.
ISO 5211 mounting pad with double “D” stem.
100% electronically tested in the open and closed position at 80 psi.
TUV T.A. Luft approved.
25% carbon filled PTFE ball seats.
Standard Latch Lock Handle.
Complies with NACE MR 0175/ISO 15156 and NACE MR 1103.
Specifications
| Valve Size | 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4" |
