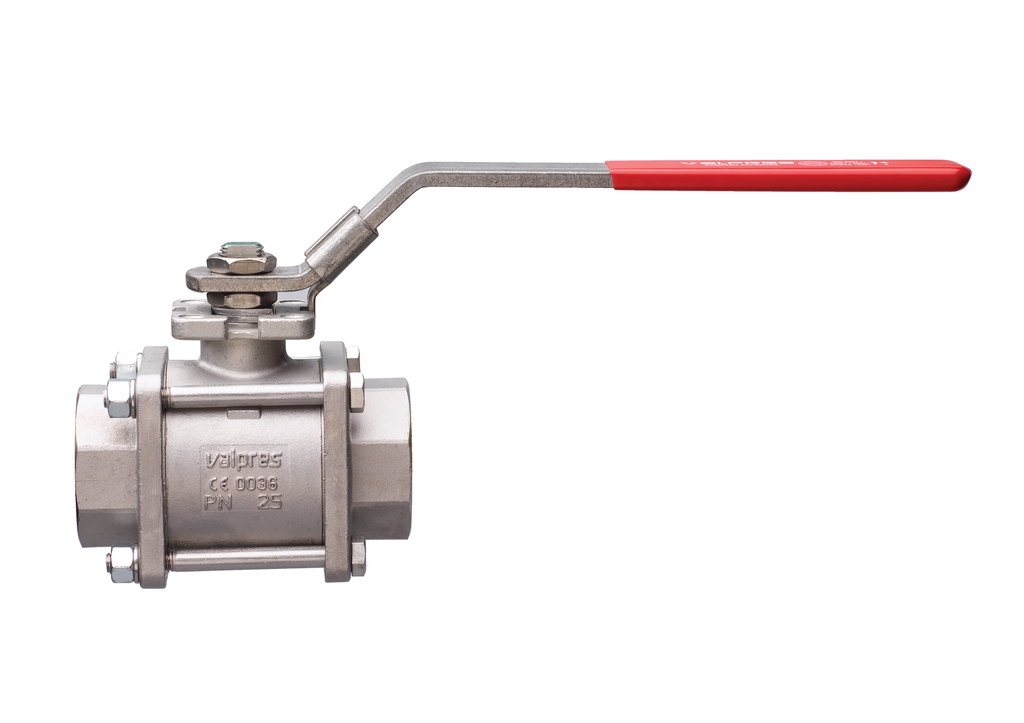

710061 / 710062 / 710085 Radiomont Series Full Port 3 pc. Ball Valve w/ ISO 5211 Pad and Double "D" Stem for Steam
710061 Radiamont Series 3-piece stainless steel ball valve for steam, full port.
Features
Steam pressure to 250 psi.
Temperature range: -4°F to 406° F.
Blow-out proof stem, adjustable stem packing.
ISO 5211 mounting pad with double “D” stem.
100% electronically tested in the open and closed position at 80 psi.
TUV T.A. Luft approved.
25% carbon filled PTFE ball seats.
Standard Latch Lock Handle.
Complies with NACE MR 0175/ISO 15156 and NACE MR 1103
710061 Radiamont Series 3-piece stainless steel ball valve for steam, full port.
Features
Steam pressure to 250 psi.
Temperature range: -4°F to 406° F.
Blow-out proof stem, adjustable stem packing.
ISO 5211 mounting pad with double “D” stem.
100% electronically tested in the open and closed position at 80 psi.
TUV T.A. Luft approved.
25% carbon filled PTFE ball seats.
Standard Latch Lock Handle.
Complies with NACE MR 0175/ISO 15156 and NACE MR 1103
Alternative Products
Specifications
| Model | [710061] Stainless Steel, Socket Weld, [710062] Stainless Steel, Butt Weld, [710085] Carbon Steel, FNPT Threaded |
| Valve Size | 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4", 1/4" , 3/8" , 1/2" , 3/4" , 1" , 1-1/4" , 1-1/2" , 2" , 2-1/2" , 3" , 4" |
