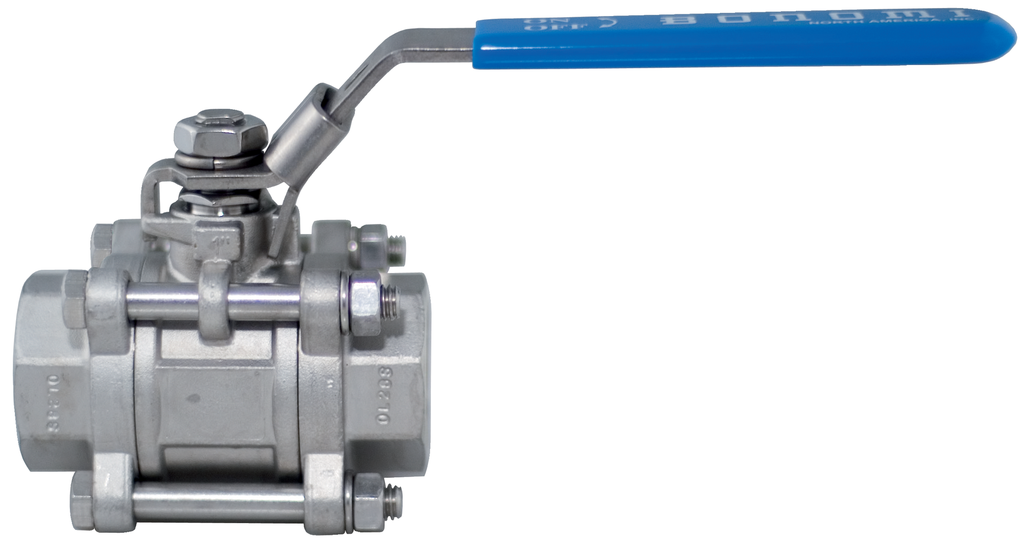

710LL / 711LL / 712LL North America Series Full Port 3 pc. Stainless Steel Ball Valve w/ Locking Lever
710LL FNPT - 711LL SW - 712LL BW Bonomi North America Series 3-piece ball valve, with latch locking lever, full port.
Features
Pressure rating 1/4” to 2” 1000 psi, 2 1/2” to 4” 800 psi - 150 psi steam.
Temperature range -40°F + 440°F.
Blow-out proof stem, adjustable multi-layer V-ring stem packaging.
TFM 1600 seats, PTFE packing and thrust washer.
Model Details
710 LL: FNPT THREADED - size 1/4” to 4”.
711 LL: SOCKET WELD - size 1/4” to 4”.
712 LL: BUTT WELD - size 1/4” to 4”.
710LL FNPT - 711LL SW - 712LL BW Bonomi North America Series 3-piece ball valve, with latch locking lever, full port.
Features
Pressure rating 1/4” to 2” 1000 psi, 2 1/2” to 4” 800 psi - 150 psi steam.
Temperature range -40°F + 440°F.
Blow-out proof stem, adjustable multi-layer V-ring stem packaging.
TFM 1600 seats, PTFE packing and thrust washer.
Model Details
710 LL: FNPT THREADED - size 1/4” to 4”.
711 LL: SOCKET WELD - size 1/4” to 4”.
712 LL: BUTT WELD - size 1/4” to 4”.
Specifications
| Model | [710LL] NPT Ends, [711LL] SW Ends, [712LL] BW Ends |
| Valve Size | 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4" |
