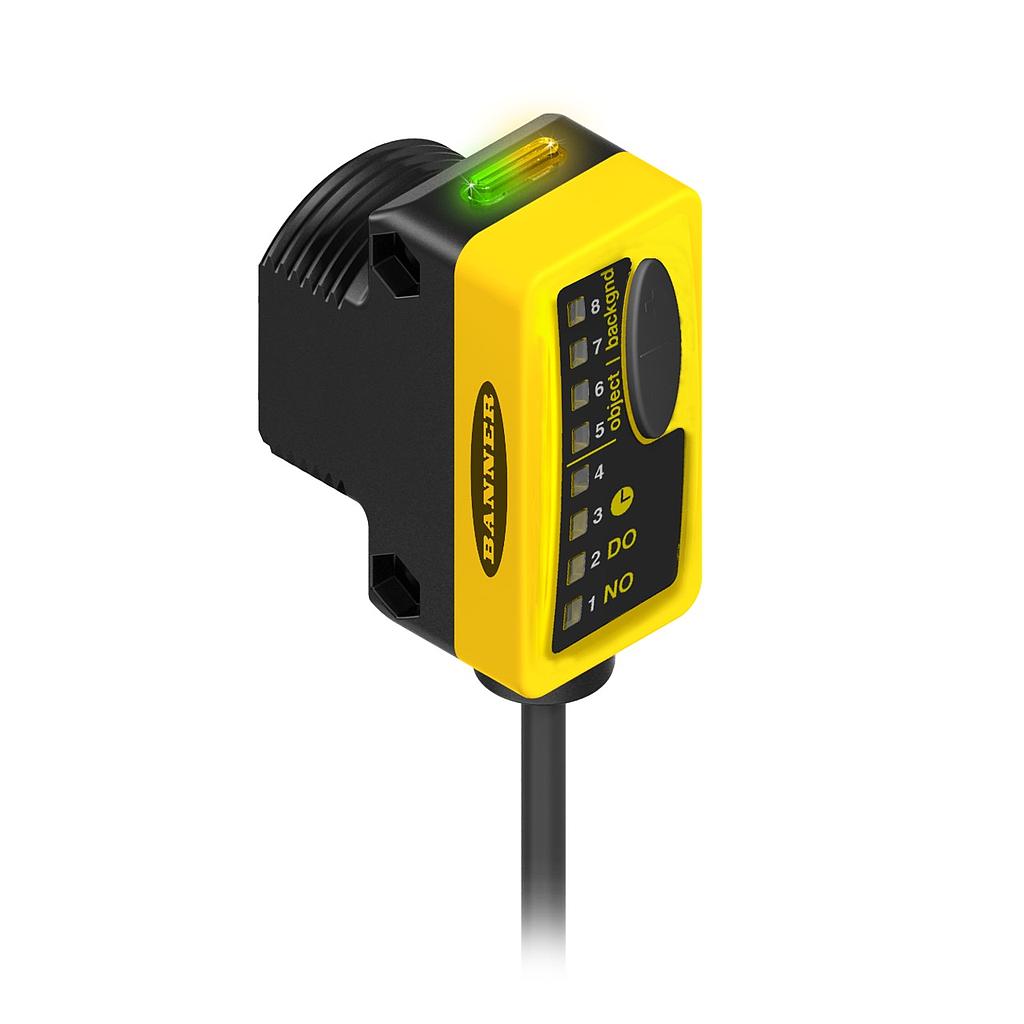

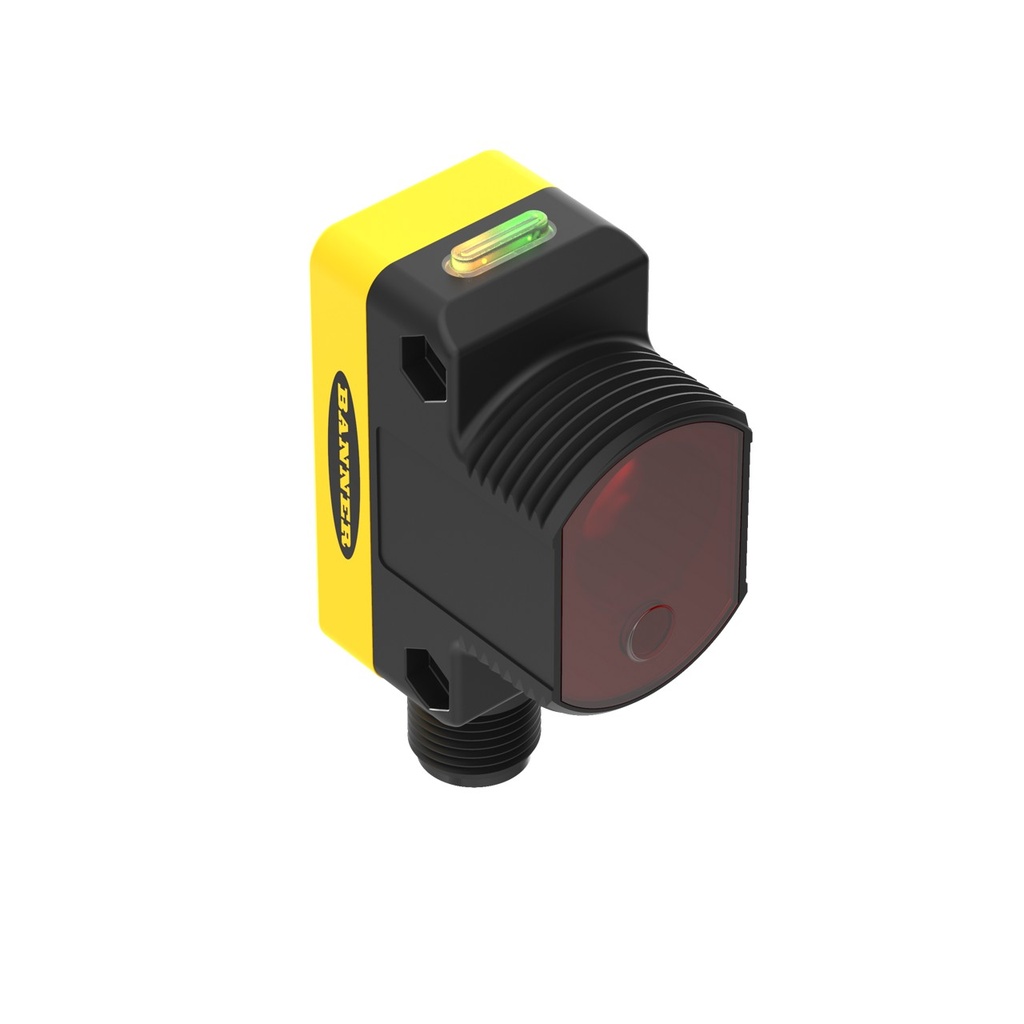

B FREQUENCY 5 PIN EURO QD (QS30LDBQ)

https://www.branom.com/web/image/product.template/34816/image_1920?unique=c26756c
(0 review)

Features:

  • QS30LDBQ B FREQUENCY 5 PIN EURO QD
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 1000 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 70
  • Sensing Beam Wavelength: 650
  • Housing Style: Rectangular w/M30 Mount
  • Max Sensing Distance: 400 mm
  • Sensing Mode (Detailed): Diffuse
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 95% @ 50 °C
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12 (Euro)
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 5
  • Output Response Time: 0.5 ms
  • Operation: Light/Dark Operate
  • Adjustments: Teach Button
  • Feature: Timing (Hold/Delay): Yes
  • Small Visible Spot: Laser
  • Feature: Encapsulated: No
  • Barrel Diameter: 30
  • Feature: Remote Teach: Yes
  • Feature: Intrinsically Safe: No
  • Connection: Integral QD
  • NEMA / UL: NEMA 6
  • Indicator Type: LED
