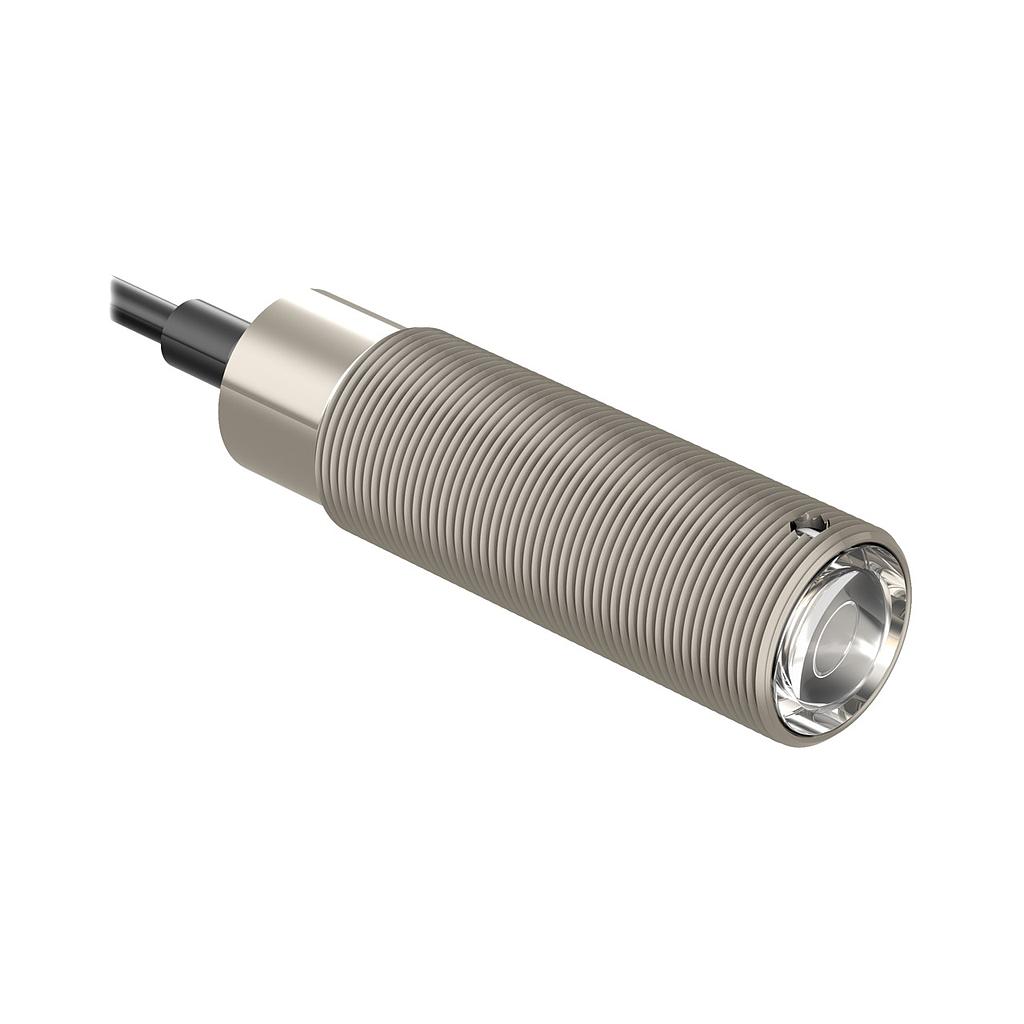

Representative photo. Please check item description for details.

SM30 Series: Receiver - Frequency A Stainless Stl (SM30SRLMC1 W/30)

https://www.branom.com/web/image/product.template/34811/image_1920?unique=c26756c
(0 review)

Features:

  • SM30 Series: Receiver
  • Frequency A Stainless Stl
  • Range: 150 m
  • Input: 10-30 V dc
  • Output: Bi-Modal: 1 NPN
  • 1 PNP
  • LO & DO
  • 9 m (30 ft) 600 V Cable
    • Power: DC
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Ingress Protection: IP67
  • Repeatability (µs): 1000
  • Sensing Beam: Infrared LED
  • Housing Style: Barrel
  • Max Sensing Distance: 150000 mm
  • Sensing Mode (Detailed): Receiver
  • Sensing Mode (General): Opposed
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: SS
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: Yes
  • Opposed Mode Emitter/Receiver: Receiver
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 10 ms
  • Operation: Light/Dark Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Barrel Diameter: 30 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Cable
  • NEMA / UL: NEMA 6P
  • Cord/Cable Length: 9 m
  • Indicator Type: LED

$ 504.00 504.0 USD $ 504.00
