  3. QS30AFQ WORLD-BEAM QS30 Series: Adjustable-Field. Range: 50 to 300 mm; Input: 10-30 V dc. Output: Bipolar: 1 NPN; 1 PNP. M12 Quick Disconnect Connector
Public Pricelist (v2)

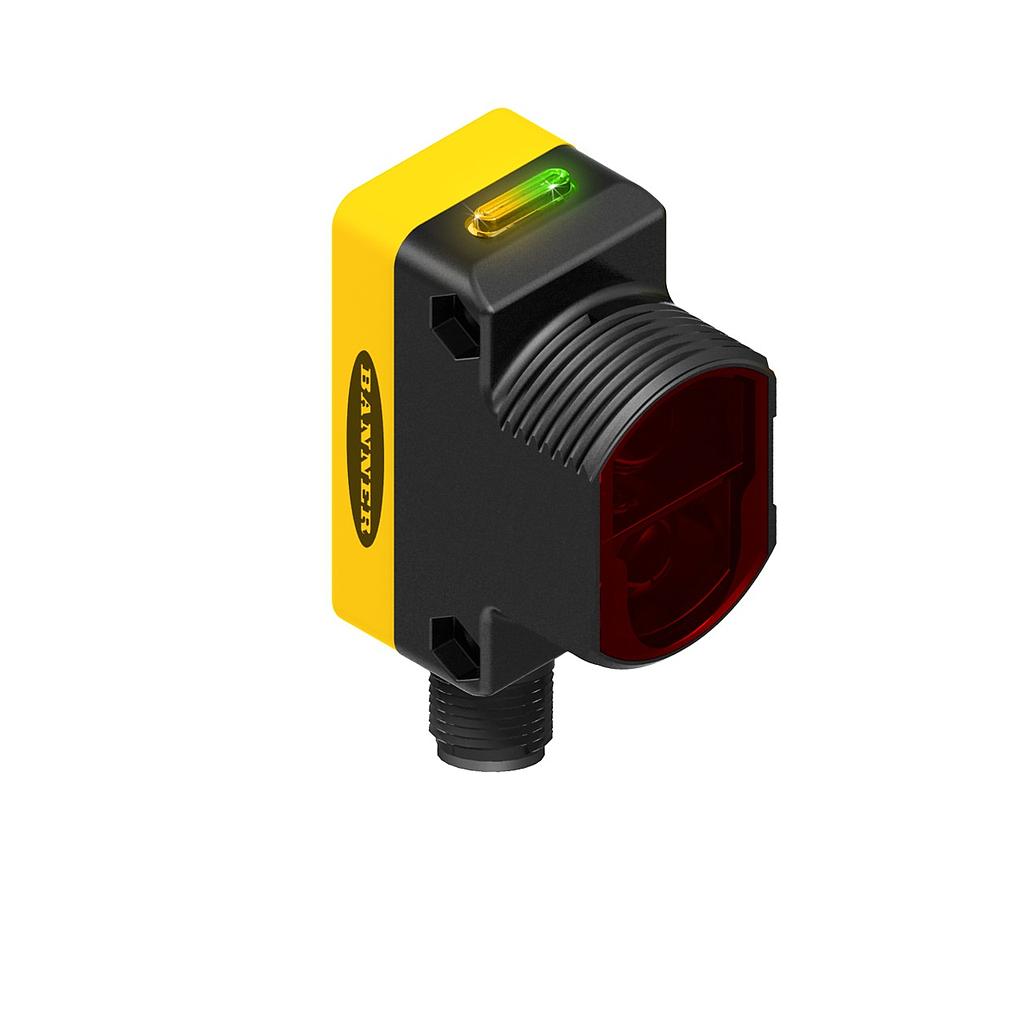

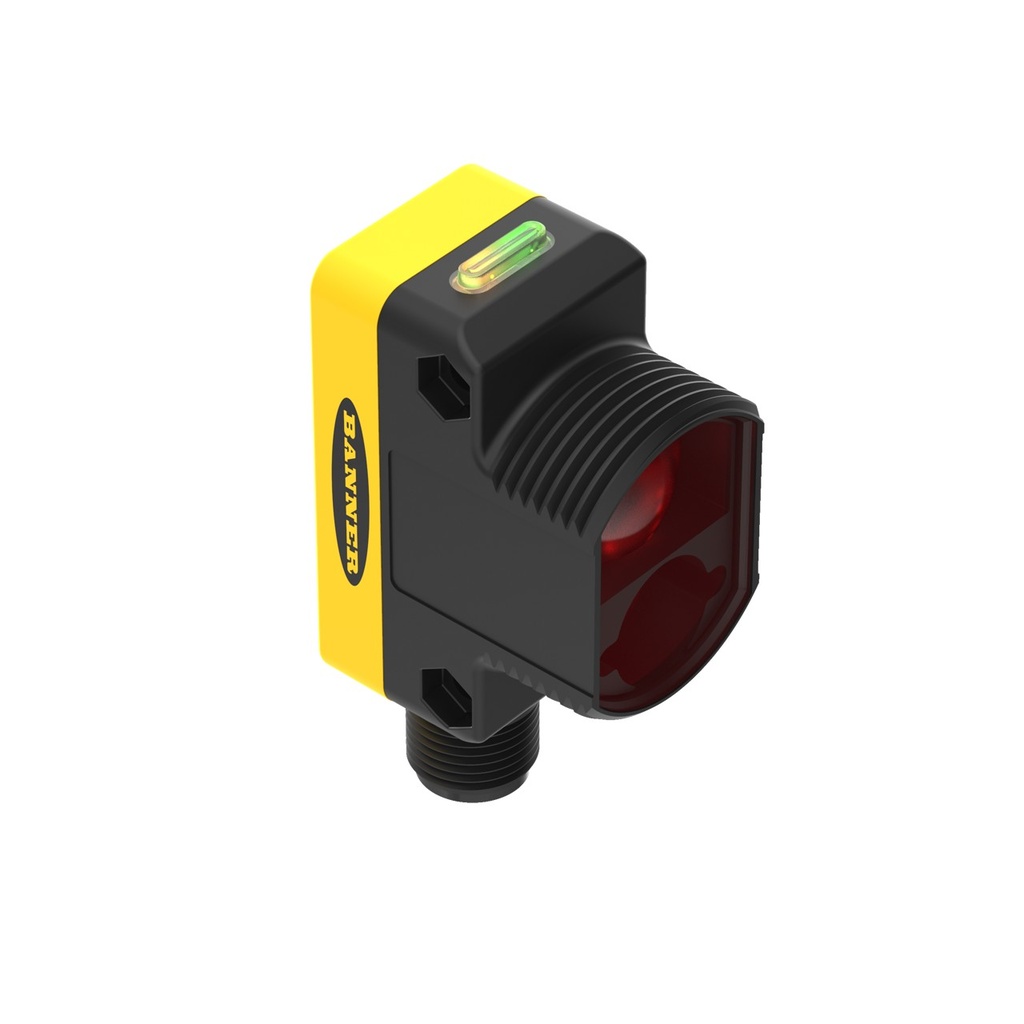

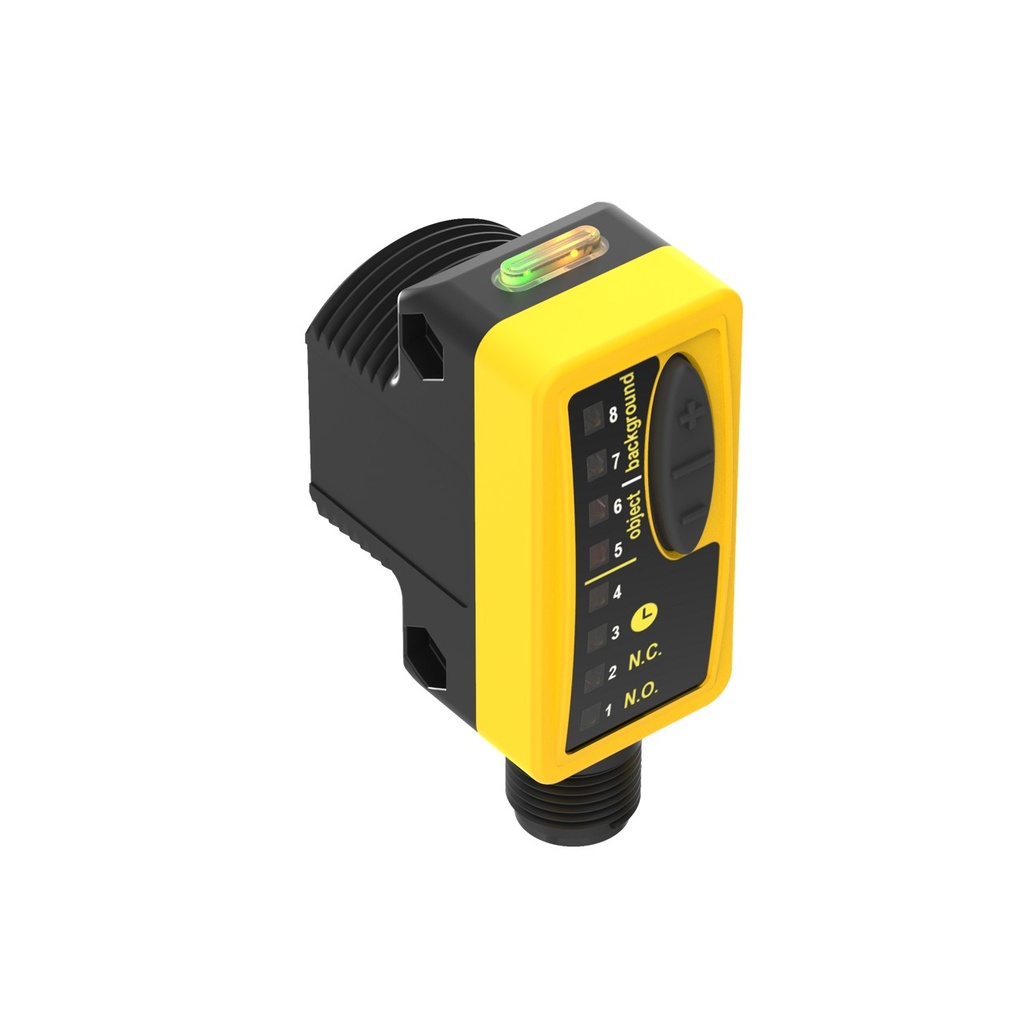

Representative photo. Please check item description for details.

QS30AFQ WORLD-BEAM QS30 Series: Adjustable-Field. Range: 50 to 300 mm; Input: 10-30 V dc. Output: Bipolar: 1 NPN; 1 PNP. M12 Quick Disconnect Connector

https://www.branom.com/web/image/product.template/34682/image_1920?unique=c26756c
(0 review)

Features:

  • WORLD-BEAM QS30 Series: Adjustable-Field
  • Range: 50 to 300mm
  • Input: 10-30V dc
  • Output: Bipolar: 1 NPN
  • 1 PNP
  • Euro-Style Quick Disconnect Connector
  • Min Operating Temperature: -10 °C
  • Max Operating Temperature: 55 °C
  • Lens Material: Acrylic
  • Case Material: Thermoplastic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 250 ms
  • Output Communication Protocol: PNP, NPN
  • Input Voltage: 10-30 VDC
  • Ingress Protection: IP67
  • Repeatability (µs): 170
  • Sensing Beam: Visible Red LED
  • Sensing Beam Wavelength: 660
  • Housing Style: Rectangular w/M30 Mount
  • Max Sensing Distance: 300 mm
  • Sensing Mode (Detailed): Background Suppression (Adjustable)
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 90% @ 55 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 5
  • Output Response Time: 1 ms
  • Operation: Light/Dark Operate
  • Adjustments: Teach Button
  • Feature: Timing (Hold/Delay): Yes
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Barrel Diameter: 30 mm
  • Feature: Remote Teach: Yes
  • Feature: Intrinsically Safe: No
  • Connection Type: Integral QD
  • Sensing Mode: Background Suppression (Adjustable)
  • NEMA / UL: NEMA 6
  • Indicator Type: Bargraph

$ 209.00 209.0 USD $ 209.00

$ 209.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
