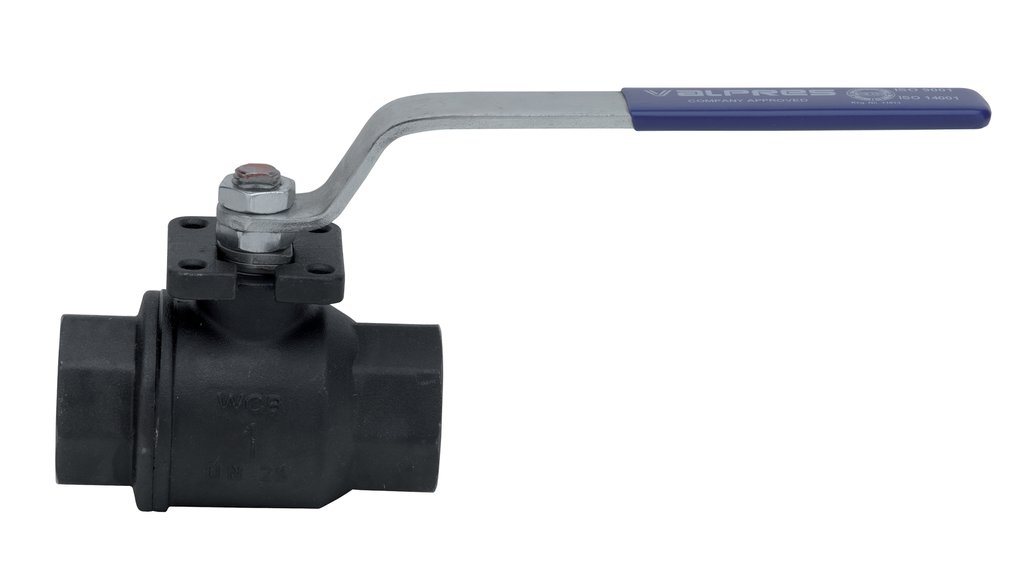

700056 Inox-Val Series, Full Port, Carbon Steel Ball Valve, 1000 psi, FNPT Threaded, ISO 5211 Pad and Double "D" Stem
700056 Inox-Val series 2-piece carbon steel, FNPT threaded ball valve, stainless steel ball and stem, full port.
Features
Pressure rating 1000 psi -150 psi steam.
Temperature -4°F to +366°F.
Blow-out proof stem, adjustable stem packing.
PTFE seats, packing and thrust washer.
100% electronically tested in the open and closed position at 80 psi.
TUV T.A. Luft approved.
ISO 5211 pad with double “D” stem.
ANSI B1.20.1 connections.
Model Details
700056: size 1/4” to 2”.
700056LL: WITH LOCKING HANDLE - size 1/4” to 2”.
700056 Inox-Val series 2-piece carbon steel, FNPT threaded ball valve, stainless steel ball and stem, full port.
Features
Pressure rating 1000 psi -150 psi steam.
Temperature -4°F to +366°F.
Blow-out proof stem, adjustable stem packing.
PTFE seats, packing and thrust washer.
100% electronically tested in the open and closed position at 80 psi.
TUV T.A. Luft approved.
ISO 5211 pad with double “D” stem.
ANSI B1.20.1 connections.
Model Details
700056: size 1/4” to 2”.
700056LL: WITH LOCKING HANDLE - size 1/4” to 2”.
Specifications
| Valve Size | 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" |
