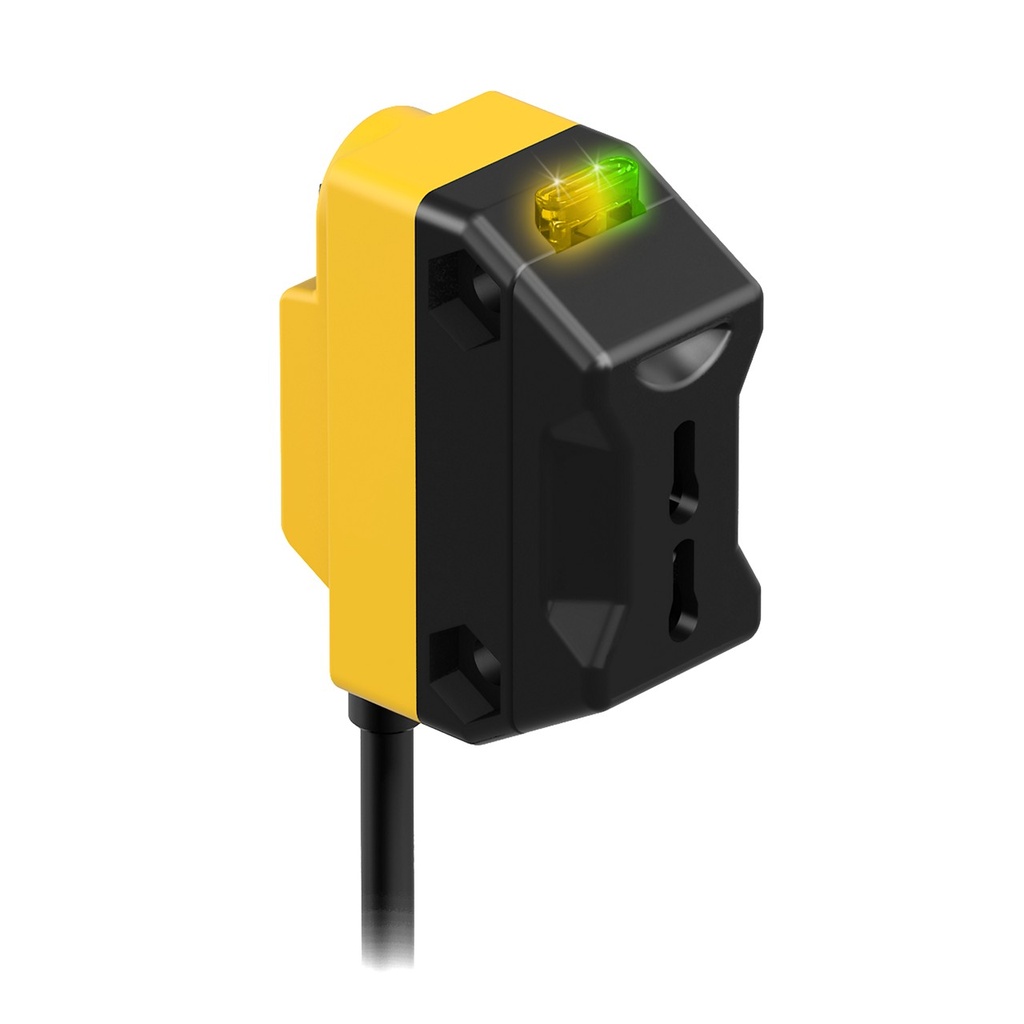

Representative photo. Please check item description for details.

WORLD-BEAM QS18 Series: Plastic Fiber (QS18VP6FPQ5)

https://www.branom.com/web/image/product.template/34618/image_1920?unique=c26756c
(0 review)

Features:

  • WORLD-BEAM QS18 Series: Plastic Fiber
  • Range: Depends on the fiber
  • Input: 10-30 V dc
  • Output: Complementary Solid State PNP
  • 6 in Pigtail Euro-Style Pigtail QD Connector
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 150
  • Housing Style: Rectangular
  • Max Relative Humidity: 95% @ 50 °C
  • Housing Material_: ABS
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 0.6 ms
  • Adjustments: Potentiometer
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Barrel Diameter: 18 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Pigtail QD
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 0.15 m
  • Indicator Type: LED

$ 114.00 114.0 USD $ 114.00

$ 114.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share

    Features:

    • WORLD-BEAM QS18 Series: Plastic Fiber
    • Range: Depends on the fiber
    • Input: 10-30 V dc
    • Output: Complementary Solid State PNP
    • 6 in Pigtail Euro-Style Pigtail QD Connector
    • Min Operating Temperature: -20 °C
    • Max Operating Temperature: 70 °C
    • Lens Material: Acrylic
    • Power Supply: 10-30 VDC
    • Delay at Power-Up: 100 ms
    • Ingress Protection: IP67
    • Repeatability (µs): 150
    • Housing Style: Rectangular
    • Max Relative Humidity: 95% @ 50 °C
    • Housing Material_: ABS
    • Feature: Hazardous Area: No
    • DeviceNet: No
    • Feature: IO Link: No
    • Feature: Quick Disconnect: Yes
    • Feature: Audible: No
    • Quick Disconnect Type: M12
    • Feature: Chemical Resistant: No
    • Feature: Water Detection: No
    • Number of Pins: 4
    • Output Response Time: 0.6 ms
    • Adjustments: Potentiometer
    • Feature: Timing (Hold/Delay): No
    • Feature: Encapsulated: No
    • Input/Output: Discrete
    • Barrel Diameter: 18 mm
    • Feature: Remote Teach: No
    • Feature: Intrinsically Safe: No
    • Connection Type: Pigtail QD
    • NEMA / UL: NEMA 6
    • Cord/Cable Length: 0.15 m
    • Indicator Type: LED
