Low Threshold (LT3NIQ-69866)

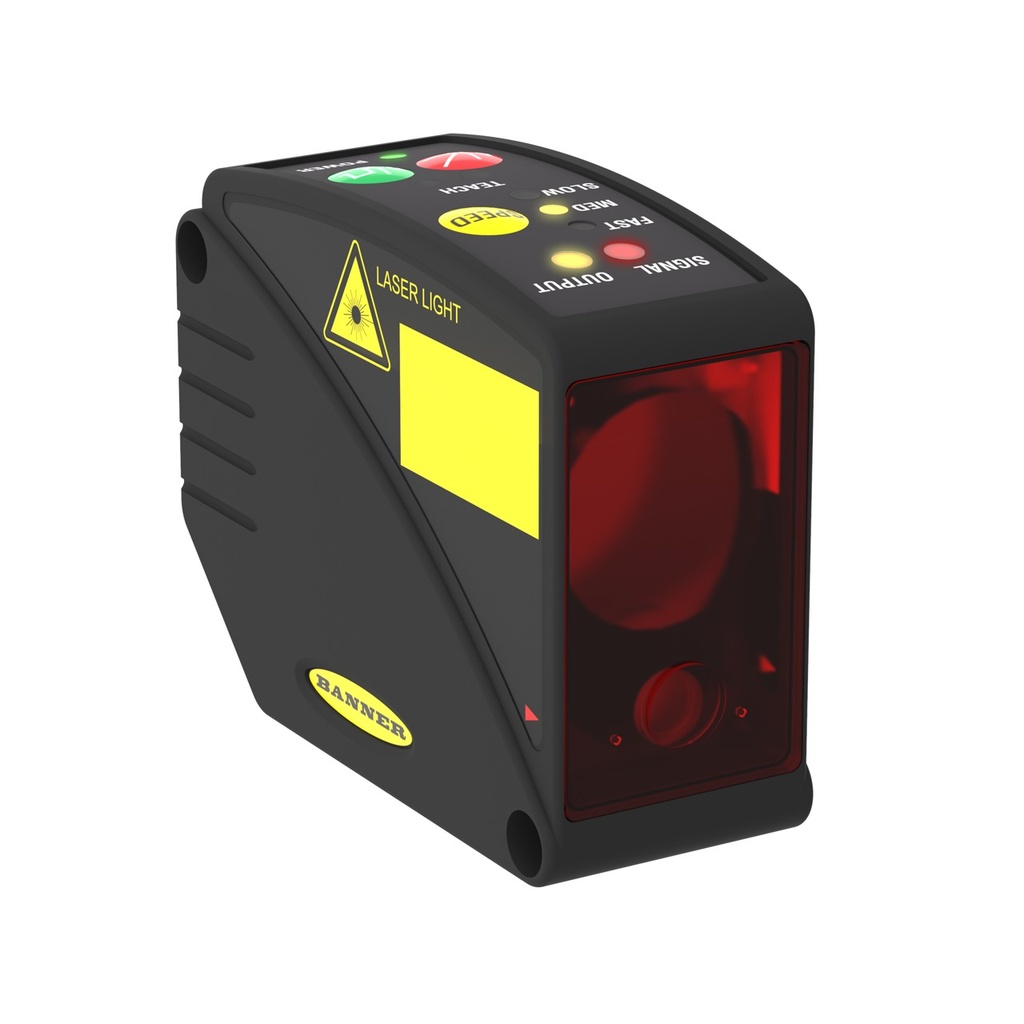

Representative photo. Please check item description for details.

Low Threshold (LT3NIQ-69866)

https://www.branom.com/web/image/product.template/203816/image_1920?unique=c26756c
(0 review)

Features:

    LT3NIQ-69866 LOW THRESHOLD
    • Power: DC
  • Max Operating Temperature: 50 °C
  • Power Supply: 12-24 VDC
  • Ingress Protection: IP67
  • Sensing Beam: Visible Red Laser
  • Housing Style: Rectangular
  • Max Sensing Distance: 5000 mm
  • Sensing Mode (Detailed): Time of Flight
  • Sensing Mode (General): Proximity
  • Housing Material_: ABS/Polycarbonate
  • Feature: Washdown Rated: Yes
  • Laser Classification: Class 2
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Number of Pins: 8
  • Adjustments: Push Button; Remote Teach
  • Feature: Timing (Hold/Delay): No
  • Input/Output: Analog
  • Min Response Time: 1 ms
  • Min Sensing Distance: 300 mm
  • Discrete (Switched) Outputs: 1 NPN
  • Feature: Remote Teach: Yes
  • Feature: Analog Output(s): 4 to 20 mA
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 6
  • Feature: Laser Control: Yes
