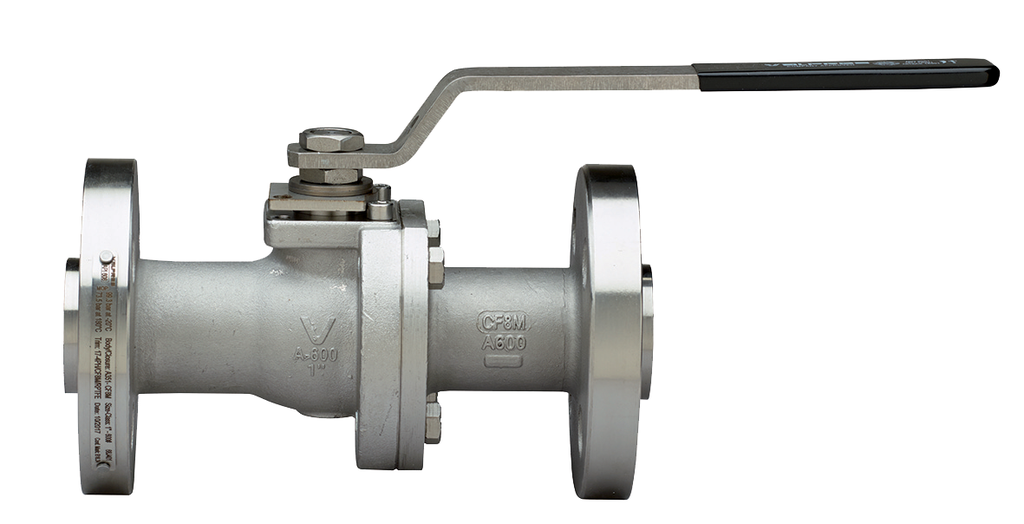

68R415 Split-Body Series API 608 Super Duplex Stainless Steel ANSI 600 Flanged, Full Port, Split-Body Ball Valve w/ ISO 5211 pad and Double "D" Stem

Representative photo. Please check item description for details.

68R415 Split-Body Series API 608 Super Duplex Stainless Steel ANSI 600 Flanged, Full Port, Split-Body Ball Valve w/ ISO 5211 pad and Double "D" Stem

68R415 Split-Body Series super Duplex stainless steel, ANSI class 600, flanged ball valve, full port.

Features

API 608, ASME B16.34, ASME B16.10, ASME B16.5, ASME B1.1 design.
Temperature range -4°F to 366°F.
100% tested according to API 598 standards.
RTFE seats, packing and thrust washer.
Blow-out proof stem, locking handle.
Fire Safe API 607.
Antistatic Device.
ISO 5211 mounting pad with double “D” stem.
Locking device.

$ 1,262.60 1262.6 USD $ 1,262.60

$ 1,262.60

Valve Size
- 1/2"
- 3/4" + $ 227.91
- 1" + $ 546.77
- 1-1/2" + $ 1,577.18
- 2" + $ 2,981.02

This combination does not exist.

Add to cart Buy now

Product Datasheets

68R415 Split-Body Series super Duplex stainless steel, ANSI class 600, flanged ball valve, full port.

Features

API 608, ASME B16.34, ASME B16.10, ASME B16.5, ASME B1.1 design.
Temperature range -4°F to 366°F.
100% tested according to API 598 standards.
RTFE seats, packing and thrust washer.
Blow-out proof stem, locking handle.
Fire Safe API 607.
Antistatic Device.
ISO 5211 mounting pad with double “D” stem.
Locking device.

Specifications

Valve Size

1/2", 3/4", 1", 1-1/2", 2"
