  3. Turck Flow Rate Measurement, Inline Sensor with Integrated Processor, Relay Output 24 VDC NO (FTCI-N3/4D19A4P-2ARX-H1160)
Public Pricelist (v2)

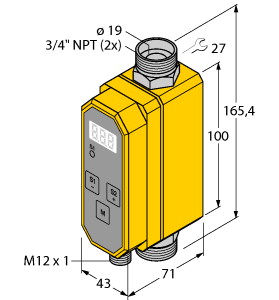

Representative photo. Please check item description for details.

Turck Flow Rate Measurement, Inline Sensor with Integrated Processor, Relay Output 24 VDC NO (FTCI-N3/4D19A4P-2ARX-H1160)

https://www.branom.com/web/image/product.template/167734/image_1920?unique=c26756c
(0 review)
Flow Rate Measurement Features
  • Inline Sensor with Integrated Processor
  • Relay Output 24 VDC NO
  • Inline sensor
  • Compact inline flow sensor
  • Calorimetric principle
  • Monitoring of flow rate
  • Monitoring of the medium temperature
  • For water/glycol mix
  • Parametrized via button
  • Protected by software code
  • Hysteresis flow 0.4 … 1.9 l/min
  • Hysteresis temp 1…10 °C
  • Temperature monitoring -10…95 °C
  • Switch-on/switch-off delay 0…50 s
  • 2 relay switching outputs
  • Switching outputs 24 VDC NO
  • Switchpoints freely adjustable

$ 1,226.30 1226.3 USD $ 1,226.30

$ 1,226.30

Not Available For Sale

  • Measurement Maximum
  • Case Material
  • Measurement Minimum
  • Output Communication Protocol
  • Country of Origin

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

Flow Rate Measurement Features

  • Inline Sensor with Integrated Processor
  • Relay Output 24 VDC NO
  • Inline sensor
  • Compact inline flow sensor
  • Calorimetric principle
  • Monitoring of flow rate
  • Monitoring of the medium temperature
  • For water/glycol mix
  • Parametrized via button
  • Protected by software code
  • Hysteresis flow 0.4 … 1.9 l/min
  • Hysteresis temp 1…10 °C
  • Temperature monitoring -10…95 °C
  • Switch-on/switch-off delay 0…50 s
  • 2 relay switching outputs
  • Switching outputs 24 VDC NO
  • Switchpoints freely adjustable

Specifications

Measurement Maximum 0
Case Material Plastic
Measurement Minimum 0
Output Communication Protocol Contact Relay
Country of Origin DE
