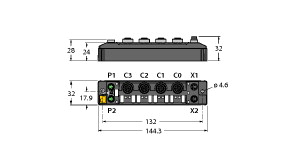

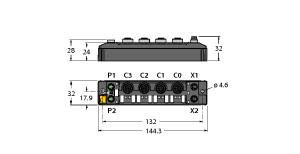

Turck Compact Multiprotocol RFID Module for Ethernet, interface for 2 BL ident read-write heads (HF/UHF) (TBEN-S2-2RFID-4DXP)
Compact Multiprotocol RFID Module for Ethernet Features
- interface for 2 BL ident read-write heads (HF/UHF)
- Cable length (L) 50 m
- PROFINET device
- EtherNet/IP device or Modbus TCP slave
- PROFINET S2 system redundancy
- Integrated Ethernet switch
- Supports 10 Mbps/100 Mbps
- Glass fiber reinforced housing
- Shock and vibration tested
- Fully potted module electronics
- Protection classes IP65
- IP67
- IP69K
- ATEX Zone 2/22
- Up to 128 bytes of user data per read/write cycle per channel and use of fragments with 16 kilobytes of FIFO memory each
- Data interface for convenient use of the RFID functions
- Continuous HF bus mode with up to 32 HF read/write heads per channel
- 2 channels with M12 connection for RFID
- 4 universal digital channels
- configurable as PNP inputs or 0.5 A outputs
- Programmable ARGEE
Compact Multiprotocol RFID Module for Ethernet Features
- interface for 2 BL ident read-write heads (HF/UHF)
- Cable length (L) 50 m
- PROFINET device
- EtherNet/IP device or Modbus TCP slave
- PROFINET S2 system redundancy
- Integrated Ethernet switch
- Supports 10 Mbps/100 Mbps
- Glass fiber reinforced housing
- Shock and vibration tested
- Fully potted module electronics
- Protection classes IP65
- IP67
- IP69K
- ATEX Zone 2/22
- Up to 128 bytes of user data per read/write cycle per channel and use of fragments with 16 kilobytes of FIFO memory each
- Data interface for convenient use of the RFID functions
- Continuous HF bus mode with up to 32 HF read/write heads per channel
- 2 channels with M12 connection for RFID
- 4 universal digital channels
- configurable as PNP inputs or 0.5 A outputs
- Programmable ARGEE
Specifications
| Measurement Maximum | 0 |
| Measurement Minimum | 0 |
| Country of Origin | DE |
