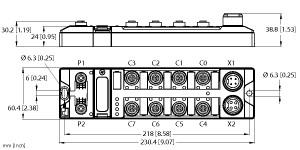

Representative photo. Please check item description for details.

Turck Compact Multiprotocol I/O Module for Ethernet, 8 Digital PNP Inputs and 8 Digital PNP Outputs 2 A (TBEN-L4-8DIP-8DOP)

https://www.branom.com/web/image/product.template/172028/image_1920?unique=c26756c
(0 review)
Compact Multiprotocol I/O Module for Ethernet Features
  • 8 Digital PNP Inputs and 8 Digital PNP Outputs 2 A
  • PROFINET device
  • EtherNet/IP device or Modbus TCP slave
  • Integrated Ethernet switch
  • Supports 10 Mbps/100 Mbps
  • 2 × M12
  • 4-pin
  • D-coded
  • Ethernet fieldbus connection
  • PROFINET S2 system redundancy
  • Glass fiber reinforced housing
  • Shock and vibration tested
  • Fully potted module electronics
  • Protection classes IP65
  • IP67
  • IP69K
  • 7/8 male connector for power supply
  • 4-pin
  • Galvanically isolated voltage groups
  • ATEX Zone 2/22
  • Input diagnostics per port
  • Max. 2 A per output
  • Output diagnostics per channel
  • Programmable ARGEE
  • "

$ 790.60 790.6 USD $ 790.60

$ 790.60

Not Available For Sale

  • Measurement Maximum
  • Measurement Minimum
  • Country of Origin

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

Compact Multiprotocol I/O Module for Ethernet Features

  • 8 Digital PNP Inputs and 8 Digital PNP Outputs 2 A
  • PROFINET device
  • EtherNet/IP device or Modbus TCP slave
  • Integrated Ethernet switch
  • Supports 10 Mbps/100 Mbps
  • 2 × M12
  • 4-pin
  • D-coded
  • Ethernet fieldbus connection
  • PROFINET S2 system redundancy
  • Glass fiber reinforced housing
  • Shock and vibration tested
  • Fully potted module electronics
  • Protection classes IP65
  • IP67
  • IP69K
  • 7/8 male connector for power supply
  • 4-pin
  • Galvanically isolated voltage groups
  • ATEX Zone 2/22
  • Input diagnostics per port
  • Max. 2 A per output
  • Output diagnostics per channel
  • Programmable ARGEE
  • "

Specifications

Measurement Maximum 0
Measurement Minimum 0
Country of Origin DE
