  3. Turck BL compact™ fieldbus station for PROFIBUS-DP, 2 Analog Inputs for Pt and Ni Sensors and 8 Configurable Digital PNP Channels (BLCDP-6M12LT-2AI-PT-8XSG-PD)
Public Pricelist (v2)

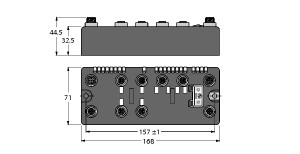

Representative photo. Please check item description for details.

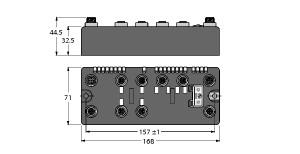

Turck BL compact™ fieldbus station for PROFIBUS-DP, 2 Analog Inputs for Pt and Ni Sensors and 8 Configurable Digital PNP Channels (BLCDP-6M12LT-2AI-PT-8XSG-PD)

https://www.branom.com/web/image/product.template/166303/image_1920?unique=c26756c
(0 review)
BL compact™ fieldbus station for PROFIBUS-DP Features
  • 2 Analog Inputs for Pt and Ni Sensors and 8 Configurable Digital PNP Channels
  • On-machine Compact fieldbus I/O block
  • PROFIBUS-DP slave
  • 9.6 kbps … 12 Mbps
  • Two 5-pole M12
  • reverse-keyed
  • connectors for fieldbus connection
  • 2 rotary switches for node address
  • IP67
  • IP69K
  • M12 I/O connectors
  • LEDs indicating status and diagnostics
  • Electronics galvanically separated from the field level via optocouplers
  • 8 Configurable digital PNP channels
  • 24 VDC
  • Max. 0.5A per channel
  • Channel diagnostics
  • Selection of filtering times (Input delay)
  • Invertible inputs
  • 2 analog inputs for RTDs
  • Pt100
  • Pt200
  • Pt500
  • Pt1000
  • Ni100
  • Ni1000
  • 0…100Ω
  • 0…200Ω
  • 0…400Ω
  • or 0…1000Ω (selectable per channel)

$ 1,107.50 1107.5 USD $ 1,107.50

$ 1,107.50

Not Available For Sale

  • Measurement Minimum
  • Country of Origin

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

BL compact™ fieldbus station for PROFIBUS-DP Features

  • 2 Analog Inputs for Pt and Ni Sensors and 8 Configurable Digital PNP Channels
  • On-machine Compact fieldbus I/O block
  • PROFIBUS-DP slave
  • 9.6 kbps … 12 Mbps
  • Two 5-pole M12
  • reverse-keyed
  • connectors for fieldbus connection
  • 2 rotary switches for node address
  • IP67
  • IP69K
  • M12 I/O connectors
  • LEDs indicating status and diagnostics
  • Electronics galvanically separated from the field level via optocouplers
  • 8 Configurable digital PNP channels
  • 24 VDC
  • Max. 0.5A per channel
  • Channel diagnostics
  • Selection of filtering times (Input delay)
  • Invertible inputs
  • 2 analog inputs for RTDs
  • Pt100
  • Pt200
  • Pt500
  • Pt1000
  • Ni100
  • Ni1000
  • 0…100Ω
  • 0…200Ω
  • 0…400Ω
  • or 0…1000Ω (selectable per channel)

Specifications

Measurement Minimum 0
Country of Origin US
