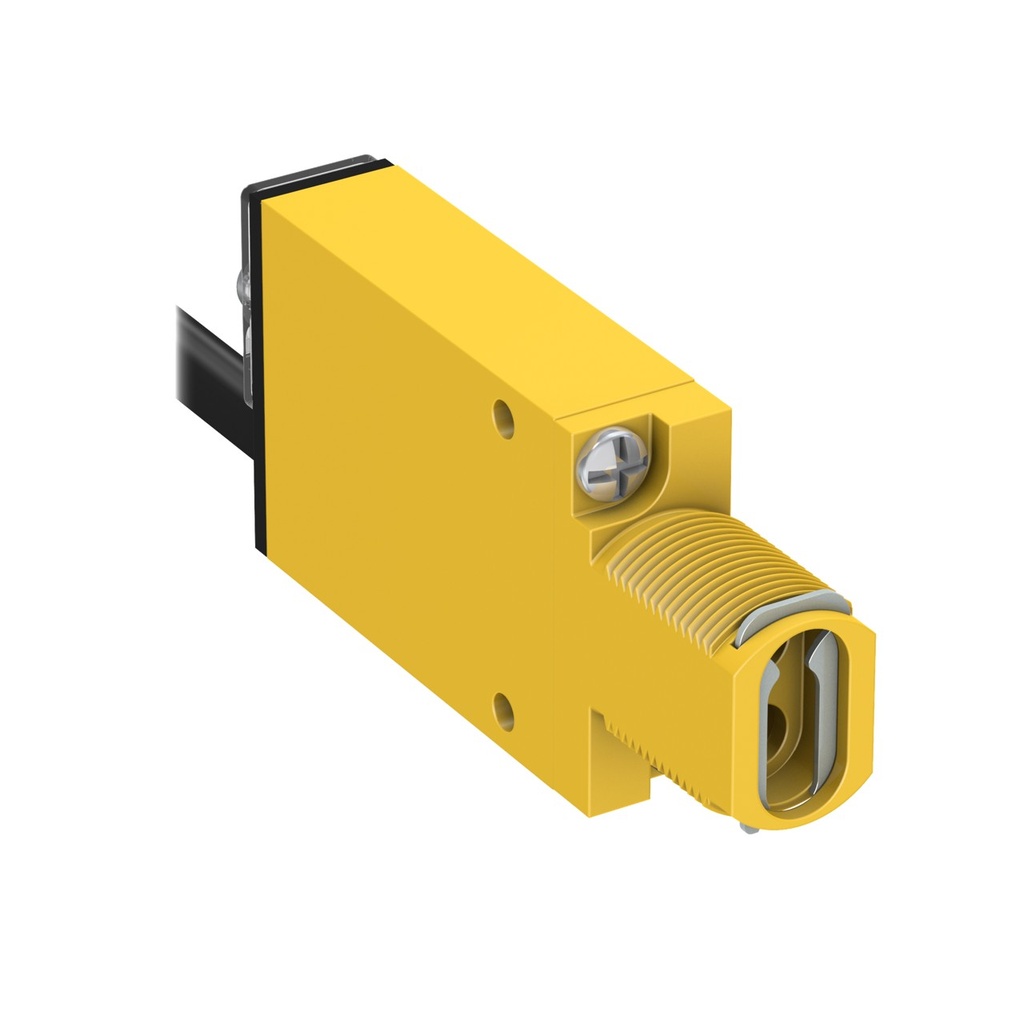

Representative photo. Please check item description for details.

6IN 5-PIN MICRO FIBEROPTIC GLASS VISIBLE RED (SMU315FVQDP)

https://www.branom.com/web/image/product.template/34380/image_1920?unique=c26756c
(0 review)

Features:

  • SMU315FVQDP 6IN 5-PIN MICRO FIBEROPTIC GLASS VISIBLE RED
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 55 °C
  • Power Supply: 24-240 VAC/VDC
  • Delay at Power-Up: 1000 ms
  • Feature: Bussable Power: No
  • Ingress Protection: IP67
  • Repeatability (µs): 1000
  • Housing Style: Rectangular w/M18 Mount
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic (TPO)
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: 1/2 in. (Micro)
  • Number of Pins: 5
  • Adjustments: Potentiometer
  • Feature: Timing (Hold/Delay): No
  • Min Response Time: 20 ms
  • Output Type (Specific): Single Discrete
  • Color LED - Amplifiers: Red
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection: Pigtail QD
  • NEMA / UL: NEMA 1/2/3/3S/4/4X/6/12/13
  • Cord/Cable Length: 150 mm
  • Indicator Type: LED

$ 257.00 257.0 USD $ 257.00

$ 257.00

Not Available For Sale
