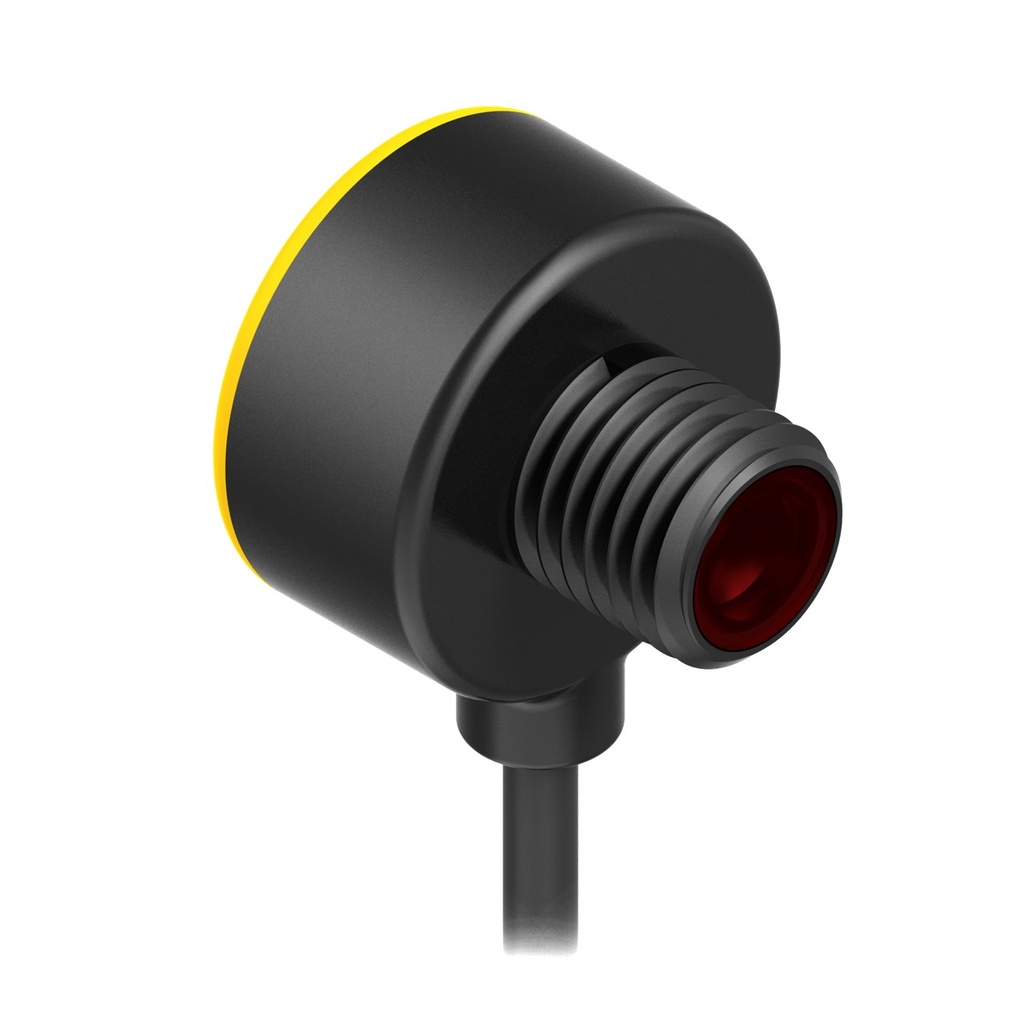

Representative photo. Please check item description for details.

T8 Series: Opposed Mode (T86EV)

https://www.branom.com/web/image/product.template/34230/image_1920?unique=c26756c
(0 review)

Features:

  • T8 Series: Opposed Mode
  • Range: 2000 mm
  • Input: 10-30V dc
  • Emitter
  • 2m (6.5ft) Cable
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 55 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 100
  • Sensing Beam: Visible Red LED
  • Housing Style: Barrel
  • Max Sensing Distance: 2000 mm
  • Sensing Mode (Detailed): Emitter
  • Sensing Mode (General): Opposed
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: No
  • Opposed Mode Emitter/Receiver: Emitter
  • Feature: Water Detection: No
  • Number of Pins: 2
  • Output Response Time: 1 ms ON/0.5 ms OFF
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Barrel Diameter: 8 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Cable
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 2 m
  • Indicator Type: LED

$ 82.00 82.0 USD $ 82.00

$ 82.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share

    Features:

    • T8 Series: Opposed Mode
    • Range: 2000 mm
    • Input: 10-30V dc
    • Emitter
    • 2m (6.5ft) Cable
    • Min Operating Temperature: -20 °C
    • Max Operating Temperature: 55 °C
    • Lens Material: Acrylic
    • Power Supply: 10-30 VDC
    • Delay at Power-Up: 100 ms
    • Ingress Protection: IP67
    • Repeatability (µs): 100
    • Sensing Beam: Visible Red LED
    • Housing Style: Barrel
    • Max Sensing Distance: 2000 mm
    • Sensing Mode (Detailed): Emitter
    • Sensing Mode (General): Opposed
    • Max Relative Humidity: 90% @ 50 °C
    • Housing Material_: Thermoplastic
    • Feature: Hazardous Area: No
    • DeviceNet: No
    • Feature: IO Link: No
    • Feature: Quick Disconnect: No
    • Feature: Audible: No
    • Feature: Chemical Resistant: No
    • Opposed Mode Emitter/Receiver: Emitter
    • Feature: Water Detection: No
    • Number of Pins: 2
    • Output Response Time: 1 ms ON/0.5 ms OFF
    • Adjustments: N/A
    • Feature: Timing (Hold/Delay): No
    • Feature: Encapsulated: No
    • Barrel Diameter: 8 mm
    • Feature: Remote Teach: No
    • Feature: Intrinsically Safe: No
    • Connection Type: Cable
    • NEMA / UL: NEMA 6
    • Cord/Cable Length: 2 m
    • Indicator Type: LED
