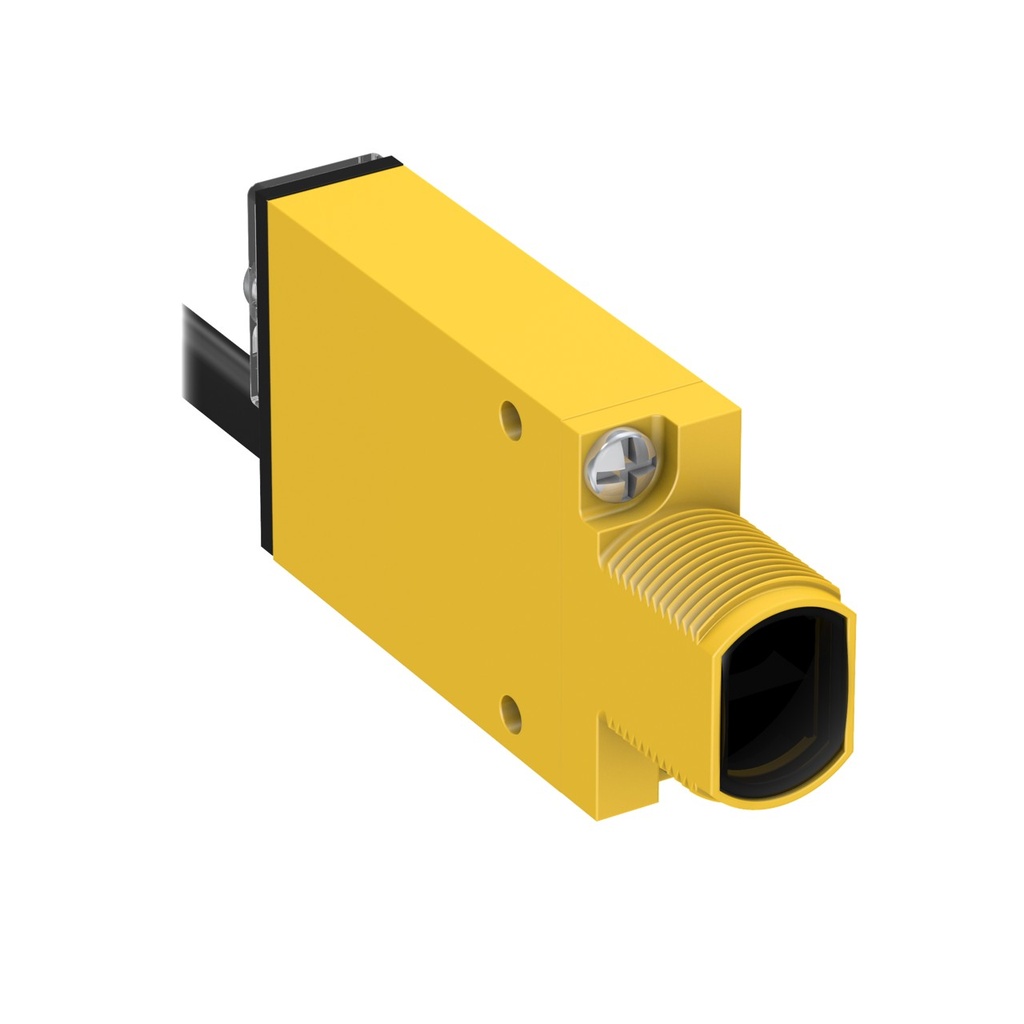

MINI-BEAM UNIVERSAL: Polarized Retro (SMU315LP W/30)

https://www.branom.com/web/image/product.template/33158/image_1920?unique=c26756c
(0 review)

Features:

  • MINI-BEAM UNIVERSAL: Polarized Retro
  • Range: 10 mm to 3 m
  • Input: 24 to 240 V ac/dc
  • Output: SPDT Electromechanical Relay
  • 9 m (30 ft) Cable
  • Power: AC/DC Universal
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 55 °C
  • Lens Material: Acrylic
  • Power Supply: 24-240 VAC/VDC
  • Ingress Protection: IP67
  • Sensing Beam: Visible Red LED
  • Sensing Beam Wavelength: 650
  • Housing Style: Rectangular w/M18 Mount
  • Max Sensing Distance: 3000 mm
  • Sensing Mode (Detailed): Polarized
  • Sensing Mode (General): Retroreflective
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 5
  • Output Response Time: 20 ms
  • Operation: Light/Dark Operate
  • Adjustments: Potentiometer
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: Yes
  • Input/Output: E/M Relay
  • Barrel Diameter: 18 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Cable
  • NEMA / UL: NEMA 1/2/3/3S/4/4X/6/12/13
  • Cord/Cable Length: 9 m
  • Indicator Type: LED

$ 286.00 286.0 USD $ 286.00

$ 286.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share
