  3. Turck PROFIBUS-PA, IP67 junction box, 6-channel (JBBS-48SC-M613/EX)
Public Pricelist (v2)
Representative photo. Please check item description for details.

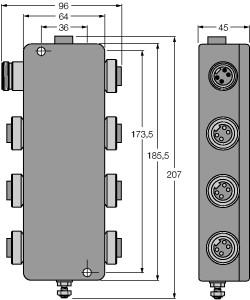

Turck PROFIBUS-PA, IP67 junction box, 6-channel (JBBS-48SC-M613/EX)

https://www.branom.com/web/image/product.template/167948/image_1920?unique=c26756c
(0 review)
PROFIBUS-PA Features
  • IP67 junction box
  • 6-channel
  • Junction box for wall mounting with stainless steel 7/8 flange connections
  • Short-circuit protection per drop line/spur
  • Integrated terminating resistor (activatable)
  • Cable shielding: Capacitive or direct connection to housing potential selectable via switch
  • Isolated support terminal for optional protective conductor incorporated in cable
  • Powder-coated die-cast aluminium housing
  • Pressure compensation element protects against condensation
  • Connection of the housing potential via M5 x 1 bolt
  • Entity and FISCO compliant according to IEC 60079-11
  • "

$ 1,007.30 1007.3 USD $ 1,007.30

$ 1,007.30

Not Available For Sale

  • Measurement Maximum
  • Case Material
  • Measurement Minimum
  • Country of Origin

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

PROFIBUS-PA Features

  • IP67 junction box
  • 6-channel
  • Junction box for wall mounting with stainless steel 7/8 flange connections
  • Short-circuit protection per drop line/spur
  • Integrated terminating resistor (activatable)
  • Cable shielding: Capacitive or direct connection to housing potential selectable via switch
  • Isolated support terminal for optional protective conductor incorporated in cable
  • Powder-coated die-cast aluminium housing
  • Pressure compensation element protects against condensation
  • Connection of the housing potential via M5 x 1 bolt
  • Entity and FISCO compliant according to IEC 60079-11
  • "

Specifications

Measurement Maximum 0
Case Material Powder-Coated Auminum
Measurement Minimum 0
Country of Origin DE
