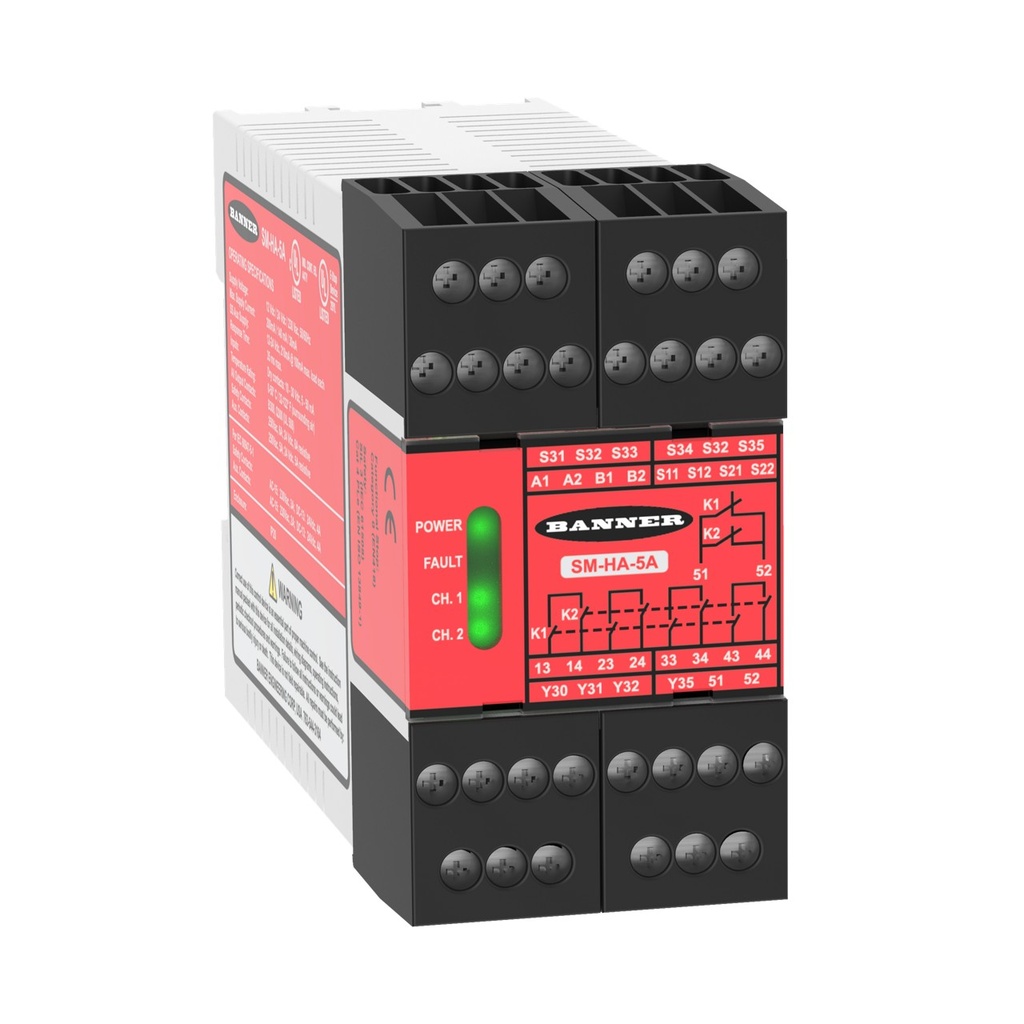

Representative photo. Please check item description for details.

Safety Relay Module for Safety Mats (SM-HA-5A)

https://www.branom.com/web/image/product.template/33143/image_1920?unique=c26756c
(0 review)

Features:

  • Safety Relay Module for Safety Mats
  • Supply Voltage: 230 V ac or 12 to 24 V dc
  • Safety Input: 4-Wire Safety Mat
  • Safety Outputs: 4 NO, 6 Amp
  • Aux Output: 1 NC, 5 Amp and 2 Solid State, 100 mA
  • Terminal Block: Removable
  • Width: 45mm
  • Self-Checking Circuitry, Auto/Manual Reset, EDM
  • Max Operating Temperature: 50 °C
  • Power Consumption: 4 W / 7 VA
  • Ingress Protection: IP20
  • Device Type: Safety Relay
  • Feature: PCCC: No
  • Feature: Has EtherNet/IP: No
  • Feature: Modbus/TCP: No
  • Supply Voltage: 230 VAC; 12-24 VDC
  • Safety Module Type: Safety Mat Module
  • Independently Controlled Safe Outputs: 1
  • PL Rating: e
  • Non Safe Output Rating: Relay - 5 A
  • SISTEMA: PFHd = 5.8 x 10-8
  • Relative Humidity: 90% @ 50 °C
  • Vibration: 10-60 Hz at 0.35 mm
  • Feature: LCD Display: No
  • SIL Rating: 3
  • Safety Category Rating: 4
  • Input Configuration: 2 NC
  • Terminal Type: Screw
  • Input Operation: 4-Wire
  • Number of Safe Inputs: 1
  • Safety Input - Reset: 20-50 mA @ 12-30 VDC
  • Safety Mat: Yes
  • Input Resistance: 250 Ω max. per channel
  • Recovery Time: 350 ms
  • Response Time: ≤35 ms
  • Non Safe Output Configuration: 1 NC, 2 PNP
  • Number of Stored Colors: 1
  • Feature: Common Ethernet Protocol: No
  • Electrical Life: 150,000 @ 1500 VA
  • Feature: E-Stops/Rope Pulls: No
  • Feature: Expandable: No
  • Feature: Removable Terminals: Yes
  • Feature: Gate Switch (NC/NC) Input: No
  • Feature: Gate Switch (NC/NO) Input: No
  • Feature: Gate Switch (OSSD) Input: No
  • Feature: Light Curtains/Scanner with EDM Input: No
  • Feature: Light Curtains/Scanner without EDM Input: No
  • Feature: Motor Speed: No
  • Feature: Muting: No
  • Safety Input - Dual Channel (Dry Contact): 20-100 mA @ 12-30 VDC
  • Feature: Safety Mat: Yes
  • Feature: In-Series Diagnostics: No
  • Mechanical Life: 20 mil

$ 511.00 511.0 USD $ 511.00
