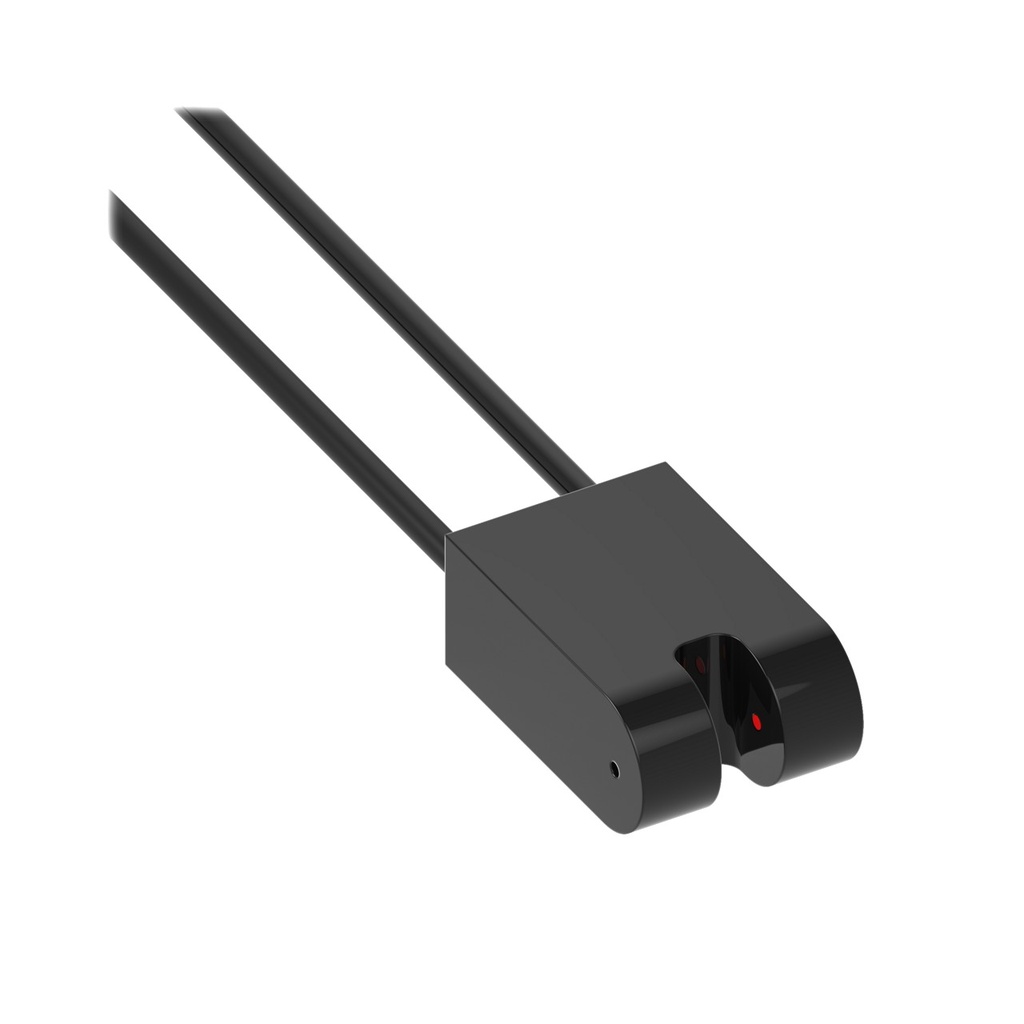

Plastic Fiber, Opposed Mode (PDIS43UM4.5M3-10)
Representative photo. Please check item description for details.

Plastic Fiber, Opposed Mode (PDIS43UM4.5M3-10)

https://www.branom.com/web/image/product.template/203904/image_1920?unique=c26756c
(0 review)

Features:

    Plastic Fiber, Opposed Mode; Core Dia.: 1 mm; Fiber Length 1 m; Slot; Free cut
    • Max Operating Temperature: 70 °C
  • Housing Style: Slot
  • Sensing Mode (Detailed): Slot
  • Sensing Mode (General): Opposed
  • Feature: Chemical Resistant: No
  • Sensing End Segment 1: Slot
  • Tariff Fiber Meters: 2.04 fbm
  • Min Bend Radius: 2 mm
  • Feature: Vacuum Feed Through: None
  • Feature: Small Object Detection: No
  • Fiber Sensing End Size: 16.0 x 24.9 mm
  • Feature: Retractile: No
  • Fiber Sensing End Tip: Slot
  • Termination: Free Cut
  • Sensing End Material (Specific): Polyethylene
  • Feature: Integrated Lens: Yes
  • Core Diameter: 1 mm
  • Fiber Sheathing Material (Jacket): Polyethylene
  • Feature: Extended Range: No
  • Feature: Flex Relief: No
  • Termination Type: Plastic Fiber Sensors
  • Fiber Sensing End Size - Mounting Area: 16.0 x 24.9 mm
  • Fiber Length: 1 m
  • Fiber Optic Type: Plastic
  • Beam Exit: Right Angle
  • Feature: Liquid Level: No
  • Min Hinged Door Size: 2 mm
  • Min Repeat Bending Endurance: 1000
  • Max Distance: DF-G1: No Data
  • Max Distance: DF-G3: No Data
  • Max Distance: DF-G2: No Data
  • Slot Width: 4.6 mm
  • Minimum Bend Radius: 2 mm

$ 2,755.00 2755.0 USD $ 2,755.00

$ 2,755.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share

    Features:

      Plastic Fiber, Opposed Mode; Core Dia.: 1 mm; Fiber Length 1 m; Slot; Free cut
      • Max Operating Temperature: 70 °C
    • Housing Style: Slot
    • Sensing Mode (Detailed): Slot
    • Sensing Mode (General): Opposed
    • Feature: Chemical Resistant: No
    • Sensing End Segment 1: Slot
    • Tariff Fiber Meters: 2.04 fbm
    • Min Bend Radius: 2 mm
    • Feature: Vacuum Feed Through: None
    • Feature: Small Object Detection: No
    • Fiber Sensing End Size: 16.0 x 24.9 mm
    • Feature: Retractile: No
    • Fiber Sensing End Tip: Slot
    • Termination: Free Cut
    • Sensing End Material (Specific): Polyethylene
    • Feature: Integrated Lens: Yes
    • Core Diameter: 1 mm
    • Fiber Sheathing Material (Jacket): Polyethylene
    • Feature: Extended Range: No
    • Feature: Flex Relief: No
    • Termination Type: Plastic Fiber Sensors
    • Fiber Sensing End Size - Mounting Area: 16.0 x 24.9 mm
    • Fiber Length: 1 m
    • Fiber Optic Type: Plastic
    • Beam Exit: Right Angle
    • Feature: Liquid Level: No
    • Min Hinged Door Size: 2 mm
    • Min Repeat Bending Endurance: 1000
    • Max Distance: DF-G1: No Data
    • Max Distance: DF-G3: No Data
    • Max Distance: DF-G2: No Data
    • Slot Width: 4.6 mm
    • Minimum Bend Radius: 2 mm
