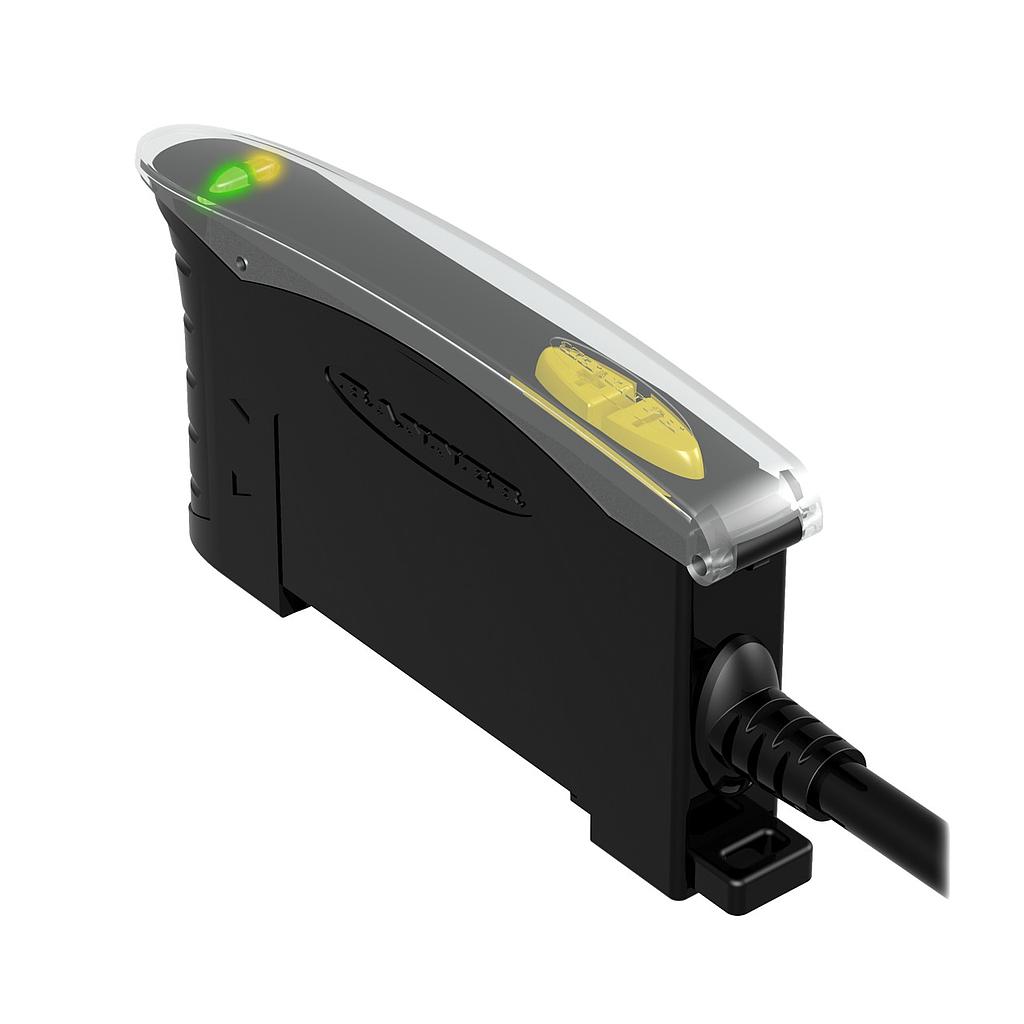

D10 Expert: Green Beam Plastic Fiber (D10DNFPG)

https://www.branom.com/web/image/product.template/32984/image_1920?unique=c26756c
(0 review)

Features:

  • D10 Expert: Green Beam Plastic Fiber
  • Range: depends on the fiber
  • Input: 12-24 V dc
  • Output: 2 NPN
  • 2 m (6.5 ft.) Cable
  • Min Operating Temperature: -10 °C
  • Max Operating Temperature: 55 °C
  • Power Supply: 12-24 VDC
  • Delay at Power-Up: 1000 ms
  • Feature: Bussable Power: No
  • Ingress Protection: IP50
  • Repeatability (µs): 25 to 100
  • Housing Style: DIN Rail
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Number of Pins: 6
  • Adjustments: Teach Button
  • Feature: Timing (Hold/Delay): Yes
  • Input/Output: Discrete
  • Min Response Time: .05 ms
  • Output Type (Specific): Dual Discrete
  • Fiber Type: Plastic and Glass
  • Color LED - Amplifiers: Green
  • Feature: Remote Teach: Yes
  • Feature: Intrinsically Safe: No
  • Connection Type: Cable
  • NEMA / UL: NEMA 1
  • Cord/Cable Length: 2 m
  • Fiber Termination Type: Unterminated Plastic Fibers or T5 Termination
  • Feature: Crosstalk Avoidance: Yes
  • Indicator Type: Single Digital Display

$ 333.00 333.0 USD $ 333.00

$ 333.00

Not Available For Sale
