  3. Glass Fiber Opposed Mode 2 m long (IMT.756.6S-HT)
Public Pricelist (v2)

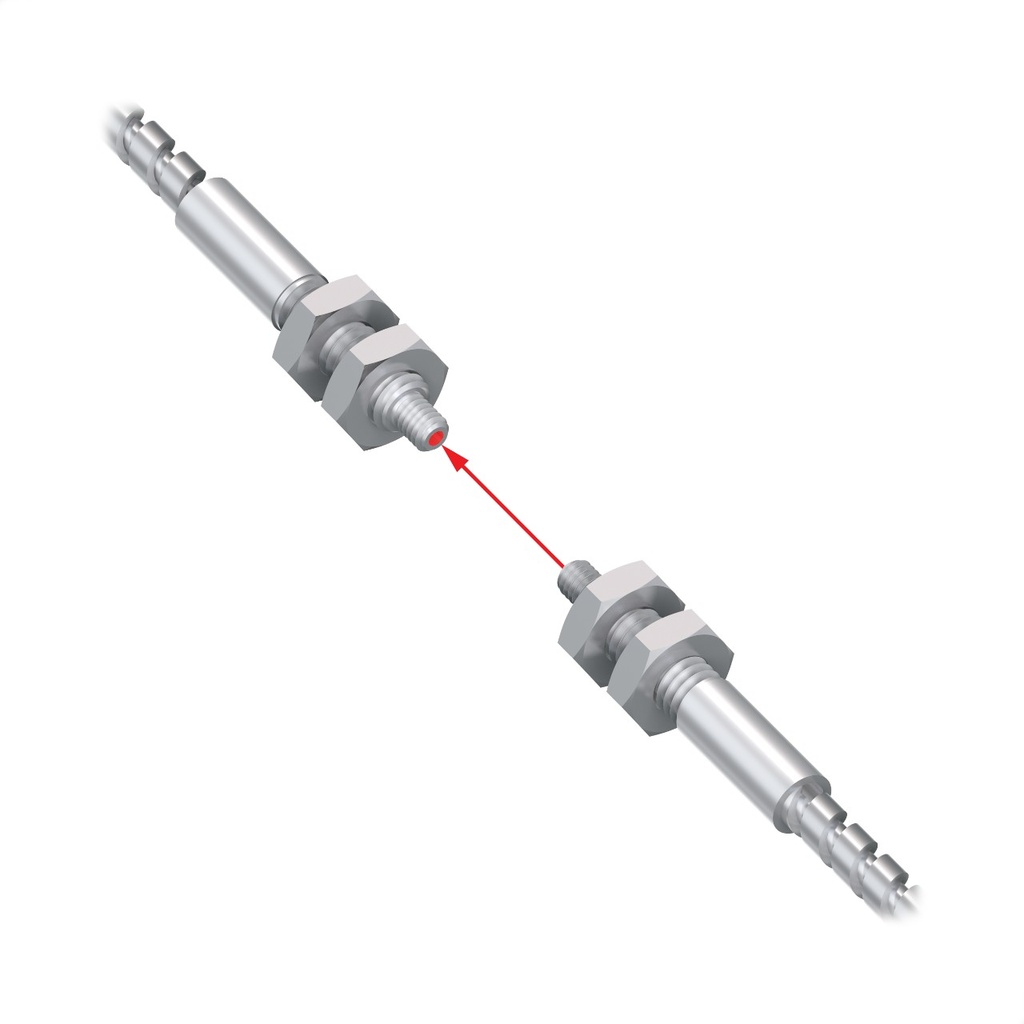

Representative photo. Please check item description for details.

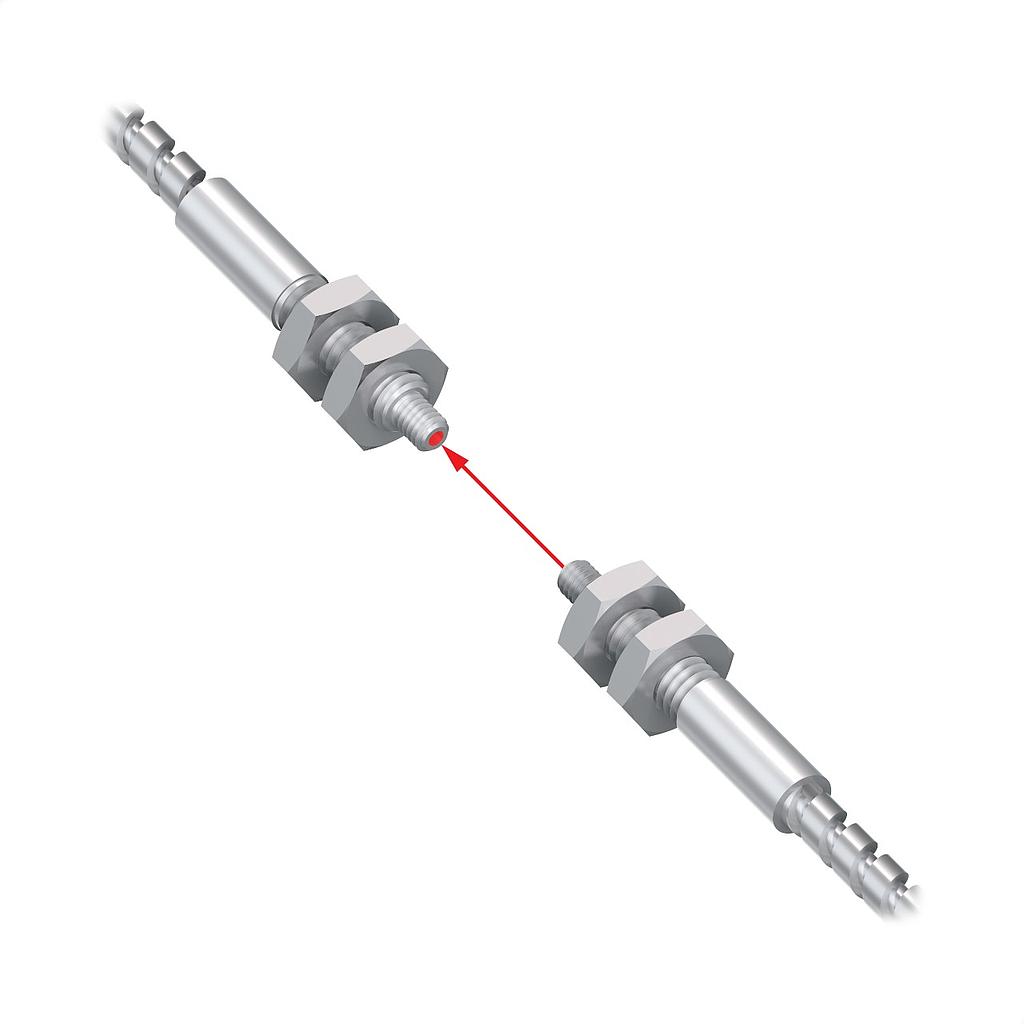

Glass Fiber Opposed Mode 2 m long (IMT.756.6S-HT)

https://www.branom.com/web/image/product.template/32957/image_1920?unique=c26756c
(0 review)

Features:

  • Glass Fiber Opposed Mode 2 m long
  • 1.27 mm dia. Bundle
  • Stainless Steel Sheath
  • M4 & M2.5 Thread
  • Terminated for use in Plastic Fiber Sensors
  • Max. Operating Temperature 315C at Threaded Tip
  • Max Operating Temperature: 315 °C
  • Housing Style: Round
  • Sensing Mode (Detailed): Reflective
  • Sensing Mode (General): Opposed
  • Feature: Chemical Resistant: No
  • Sensing End Segment 1: Thread
  • Tariff Fiber Meters: 876 fbm
  • Measured Max Distance: 303 mm
  • Min Bend Radius: 25 mm
  • Feature: Vacuum Feed Through: None
  • Feature: Small Object Detection: No
  • Fiber Sensing End Size: M2.5
  • Feature: Retractile: No
  • Fiber Sensing End Tip: Thread
  • Termination: Terminated
  • Sensing End Material (Specific): Stainless Steel
  • Feature: Integrated Lens: Yes
  • Core Diameter: 1.3 mm
  • Fiber Sheathing Material (Jacket): Stainless Steel Monocoil
  • Feature: Extended Range: No
  • Feature: Flex Relief: No
  • Termination Type: Plastic Fiber Sensors
  • Fiber Sensing End Size - Mounting Area: M4
  • Fiber Length: 2 m
  • Fiber Optic Type: Glass
  • Sensing End Segment 2: Thread
  • Beam Exit: In-line
  • Feature: Liquid Level: No
  • Max Range: DF-G3: > 1m to <= 3m
  • Min Hinged Door Size: 25 mm
  • Max Distance: DF-G1: 303 mm
  • Max Distance: DF-G3: 2357 mm
  • Max Distance: DF-G2: 491 mm
  • Minimum Bend Radius: 25 mm

$ 369.00 369.0 USD $ 369.00

$ 369.00

Not Available For Sale
