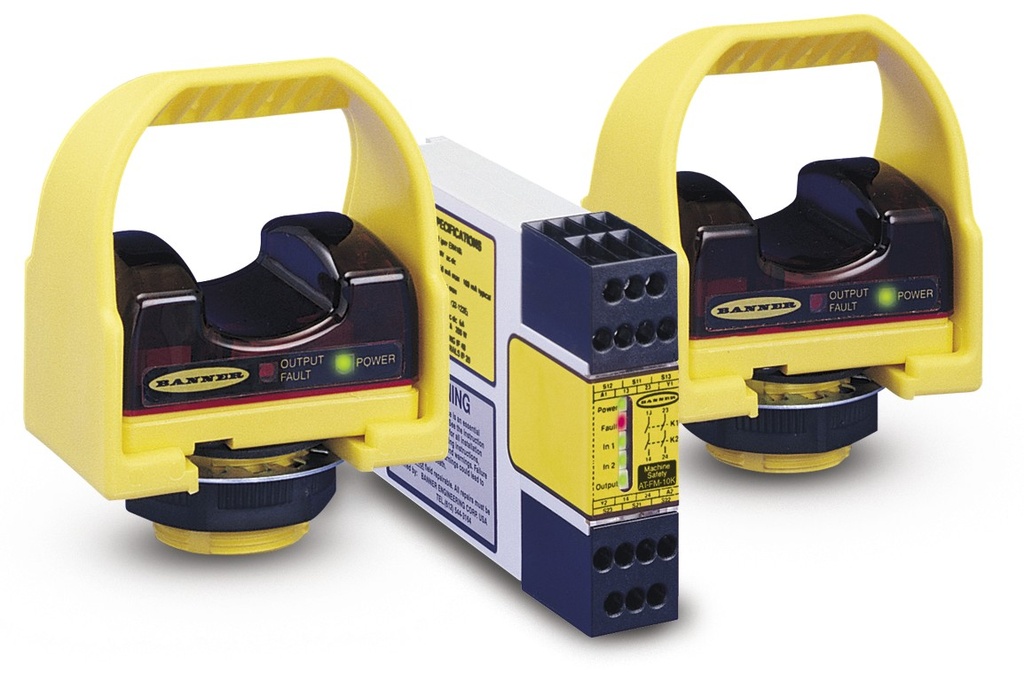

DUO-TOUCH Two-Hand Control Kit Containing: (ATK-VR81Q)

https://www.branom.com/web/image/product.template/32944/image_1920?unique=c26756c
(0 review)

Features:

  • DUO-TOUCH Two-Hand Control Kit Containing:
  • 2 STBVR81Q Buttons 5 pin Mini-Style QDs and Relay Outputs
  • 1 AT-FM-10K Safety Relay Module
  • Max Operating Temperature: 50 °C
  • Power Consumption: 3 W / 3 VA
  • Ingress Protection: IP20
  • Device Type: Safety Relay
  • Feature: PCCC: No
  • Feature: Has EtherNet/IP: No
  • Feature: Modbus/TCP: No
  • Safe Output Rating: Relay - 6 A
  • Physical Dimensions: 84 x 22.5 x 118 mm
  • Supply Voltage: 24 VAC/dc +/- 15%
  • Safety Module Type: Two-Hand Control Module
  • Feature: Two-Hand Controls: Yes
  • Independently Controlled Safe Outputs: 1
  • PL Rating: e
  • THC Rating: IIIC
  • Safety Input - Dual Channel (Solid-State): 25 mA @ 24 VDC (1 complementary PNP pair per channel)
  • SISTEMA: PFHd = 1.5 x 10-9
  • Relative Humidity: 90% @ 50 °C
  • Vibration: 10-55 Hz at 0.35 mm
  • Feature: LCD Display: No
  • SIL Rating: 3
  • Safety Category Rating: 4
  • Input Configuration: 2 x complementary (contact or PNP)
  • Terminal Type: Screw
  • Input Operation: Simultaneous <= 500 ms (500 ms typical)
  • Number of Safe Inputs: 1
  • Output Configuration: 2 NO
  • Response Time: ≤35 ms
  • Number of Stored Colors: 1
  • Feature: Common Ethernet Protocol: No
  • Electrical Life: 1,000,000 @ 250 VA
  • Feature: Expandable: No
  • Feature: Removable Terminals: Yes
  • Feature: Gate Switch (NC/NC) Input: No
  • Feature: Gate Switch (NC/NO) Input: No
  • Feature: Gate Switch (OSSD) Input: No
  • Feature: Light Curtains/Scanner with EDM Input: No
  • Feature: Light Curtains/Scanner without EDM Input: No
  • Safety Input - Dual Channel (Dry Contact): 25 mA @ 24 VDC (1 NO / 1 NC per channel)
  • Feature: In-Series Diagnostics: No
  • Mechanical Life: 20 mil

$ 781.00 781.0 USD $ 781.00

$ 781.00

Not Available For Sale
