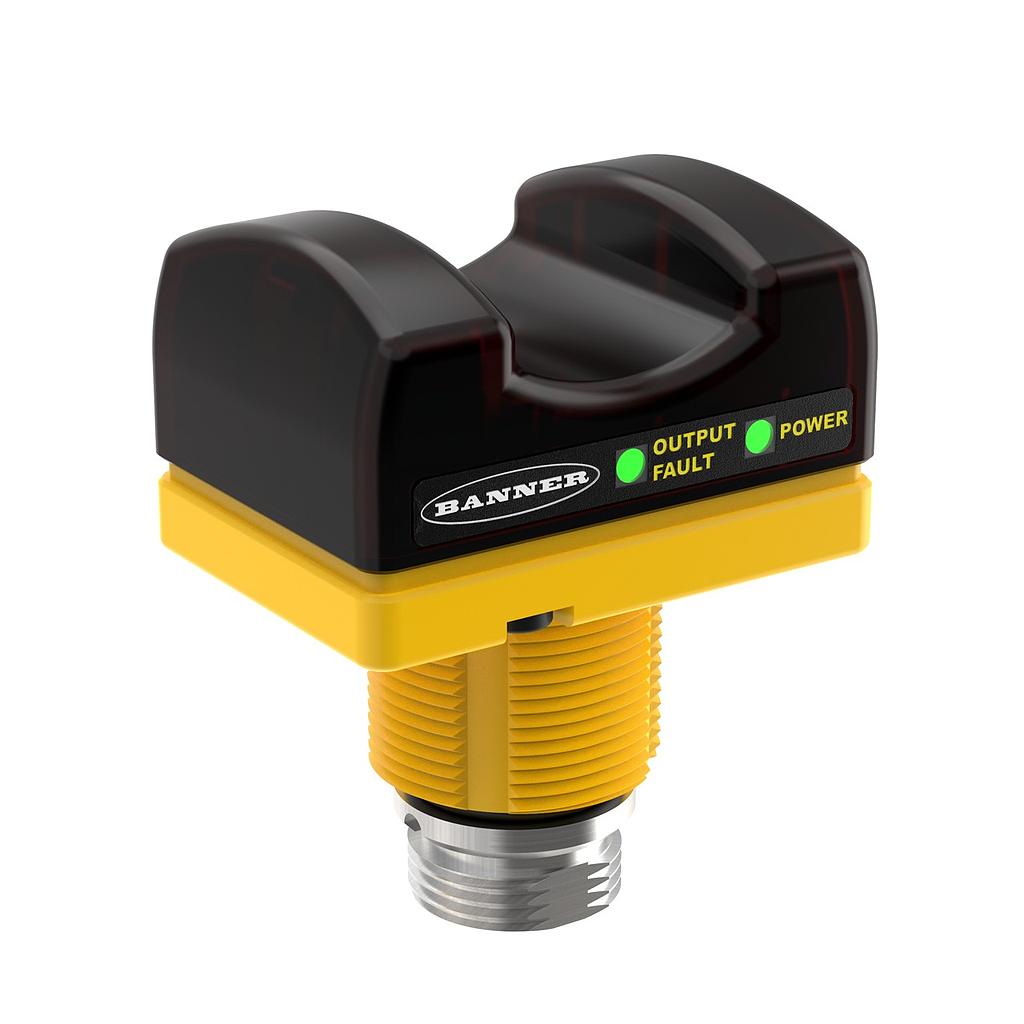

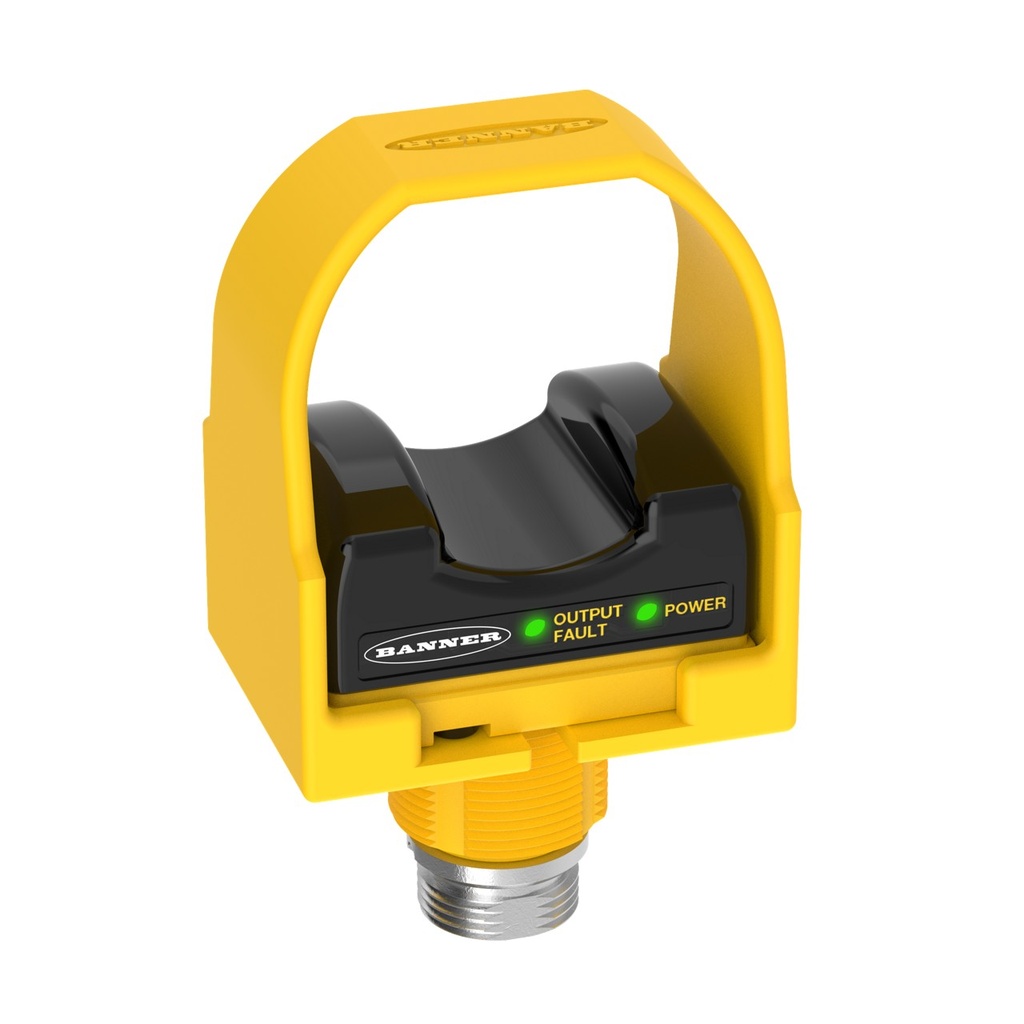

STB Series: Self-Checking Touch Button w/Yellow F.C. (STBVR81Q)

https://www.branom.com/web/image/product.template/32935/image_1920?unique=c26756c
(0 review)

Features:

  • STB Series: Self-Checking Touch Button w/Yellow F.C.
  • Input: 20-30 V ac or dc
  • Upper Housing: Black Polyetherimide
  • Outputs: Two Independent and Complementary Relays
  • Mini-style Quick-Disconnect
    • Valve: Actuation: Yes
  • Power: DC
  • Feature: Display: No
  • Max Current Color: 75 mA
  • Max Operating Temperature: 50 °C
  • Ingress Protection: IP66
  • Housing Style: Base Mount - Saddle
  • Sensing Mode (General): Single Point Optical
  • Max Relative Humidity: 90% @ 50 °C (NC)
  • Number of Beams: 1
  • Housing Material_: Thermoplastic Polyetherimide
  • Supply Voltage: 20-30 VAC/dc
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Housing Color: Black
  • Quick Disconnect Type: 7/8 in. (Mini)
  • Number of Input Pins/Conductors: 5
  • Mounting Thread: M30 x 1.5
  • Secondary Material: Thermoplastic
  • Operation: Normally Open/Normally Closed
  • Feature: Non-Illuminated: Yes
  • Activation Function: Optical
  • Max Output Response Time: 20 ms
  • Field Cover Color: Yellow
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 1/3/4/4X/12/13
