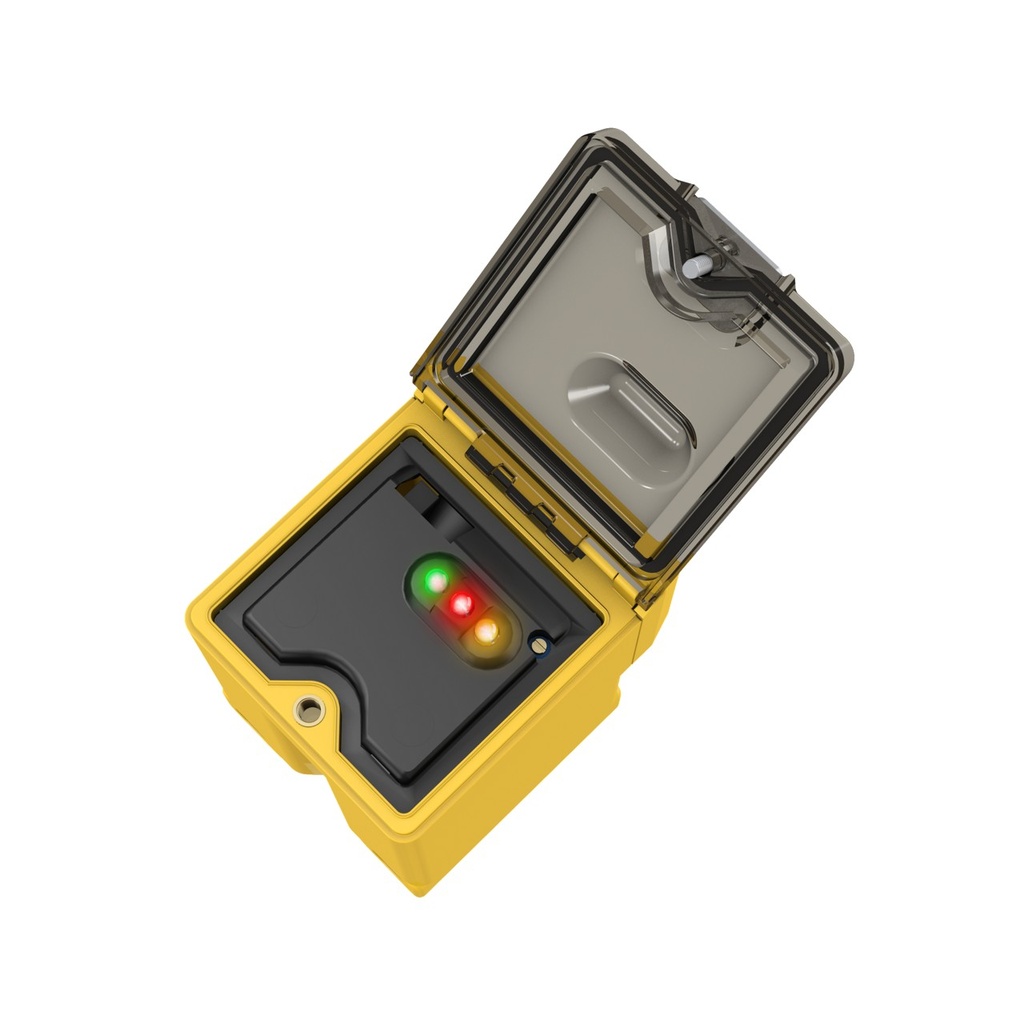

Representative photo. Please check item description for details.

CLEAR OBJECT DETECTION (Q45BW22LVAGC-63262)

https://www.branom.com/web/image/product.template/32840/image_1920?unique=c26756c
(0 review)

Features:

  • Q45BW22LVAGC-63262 CLEAR OBJECT DETECTION
  • 2 m (6.5 ft) Cable
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 90-250 VAC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 500
  • Sensing Beam: Visible Red LED
  • Sensing Beam Wavelength: 680
  • Housing Style: Rectangular
  • Max Sensing Distance: 9000 mm
  • Sensing Mode (Detailed): Non-Polarized
  • Sensing Mode (General): Retroreflective
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 3
  • Output Response Time: 2 ms
  • Operation: Light/Dark Operate
  • Adjustments: Potentiometer
  • Feature: Timing (Hold/Delay): Yes
  • Feature: Encapsulated: No
  • Input/Output: Solid-State AC Switch
  • Barrel Diameter: 30 mm
  • Feature: Clear Object Detection: Yes
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Cable
  • NEMA / UL: NEMA 6P
  • Cord/Cable Length: 2 m
  • Indicator Type: LED
